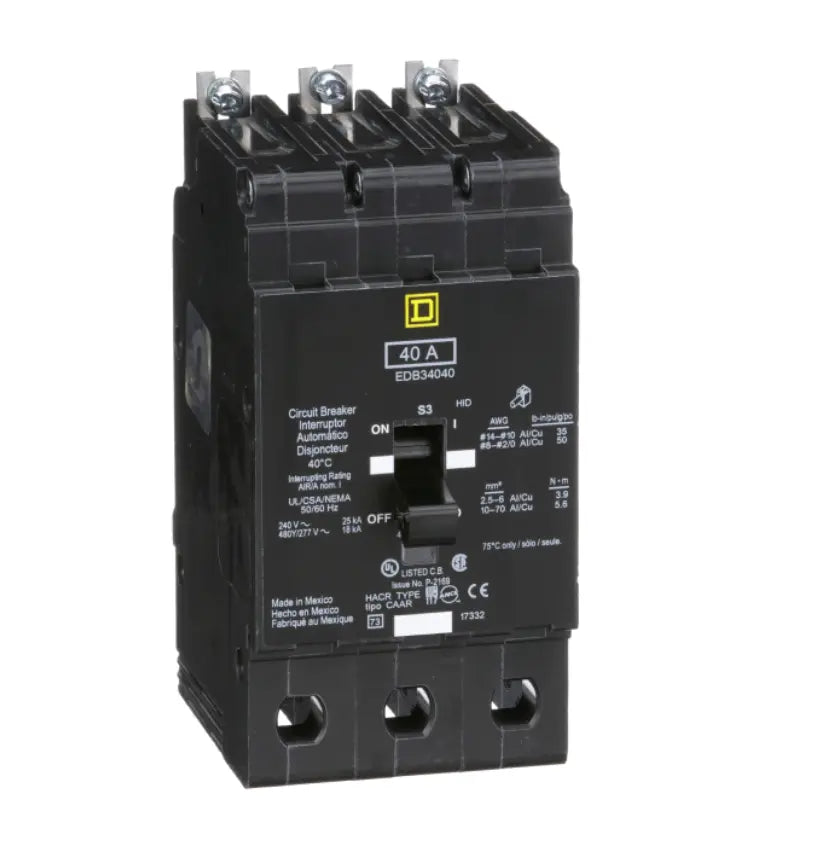

Square D EDB34040 Circuit Breaker | 480Y/277V 40A 3P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB34040 is a molded case circuit breaker designed for industrial and commercial electrical systems. It features a 3-pole configuration with a 480Y/277 volt rating and 40 amp capacity. This breaker offers thermal magnetic protection and an interrupting rating of 18kA at 480V. It is built for reliable performance in demanding applications.

Key Features:
✔ Part Number: EDB34040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 480Y/277
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901875284
✔ GTIN: 00785901875284
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in x 5.66 in
✔ Weight: 1.62 lb
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
