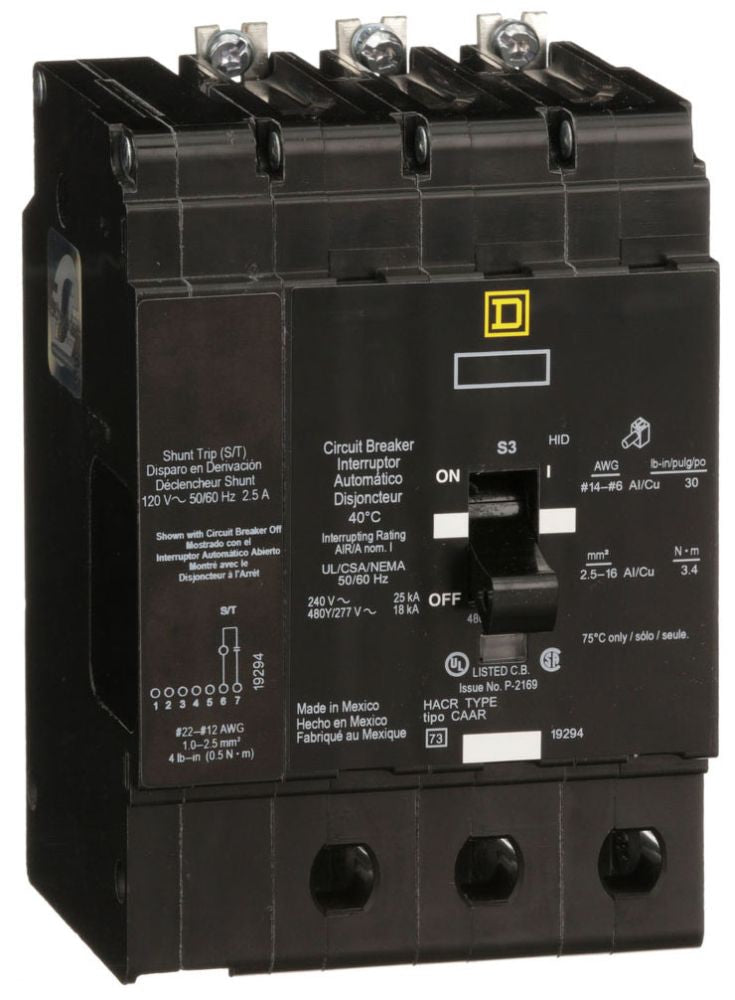

Square D EDB34070SA Molded Case Circuit Breaker | 480Y/277V 70A 3P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB34070SA is a molded case circuit breaker designed for industrial and commercial electrical systems.
It features a 3-pole configuration with a 480Y/277V rating and 70A amperage capacity.
This breaker includes thermal magnetic protection and a bolt-on connection for secure installation.
It is also complete with a 120V shunt trip function for enhanced control.

Key Features:
✔ Part Number: EDB34070SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 480Y/277
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901112846
✔ GTIN: 00785901112846
✔ Country of Origin: Mexico
✔ Dimensions: 3.92 in x 5.66 in x 5.66 in
✔ Weight: 1.9
✔ Panel Type: Square D NF Panelboards
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12 to 2/0 Aluminum, AWG 14 to 2/0 Copper
