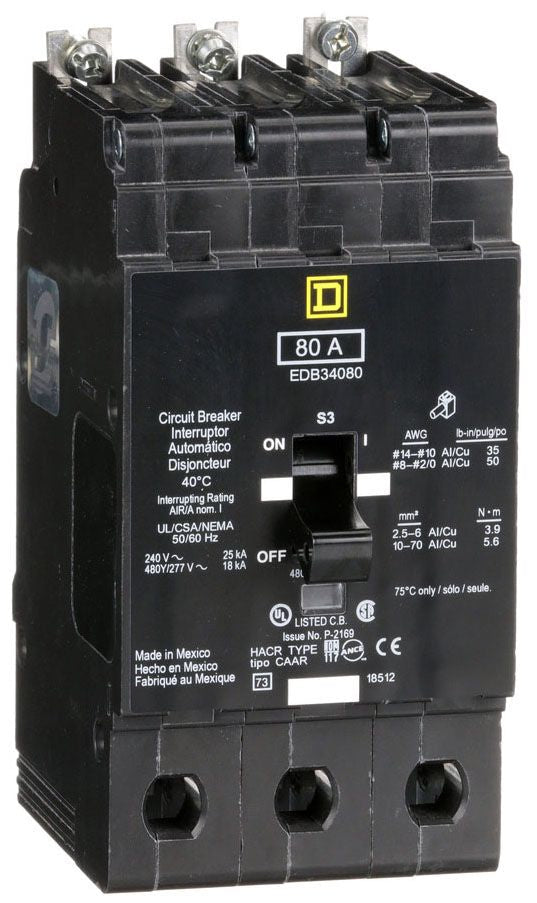

Square D EDB34080 Circuit Breaker | 480Y/277V 80A 3P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB34080 is a Molded Case Circuit Breaker designed for reliable electrical protection. It features a 3-pole configuration with a voltage rating of 480Y/277 and an amperage of 80 amps. This breaker offers thermal magnetic protection and has an AIC rating of 18kA@480V. It uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: EDB34080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 480Y/277
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901875369
✔ GTIN: 00785901875369
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in x 5.66 in
✔ Weight: 1.63
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
