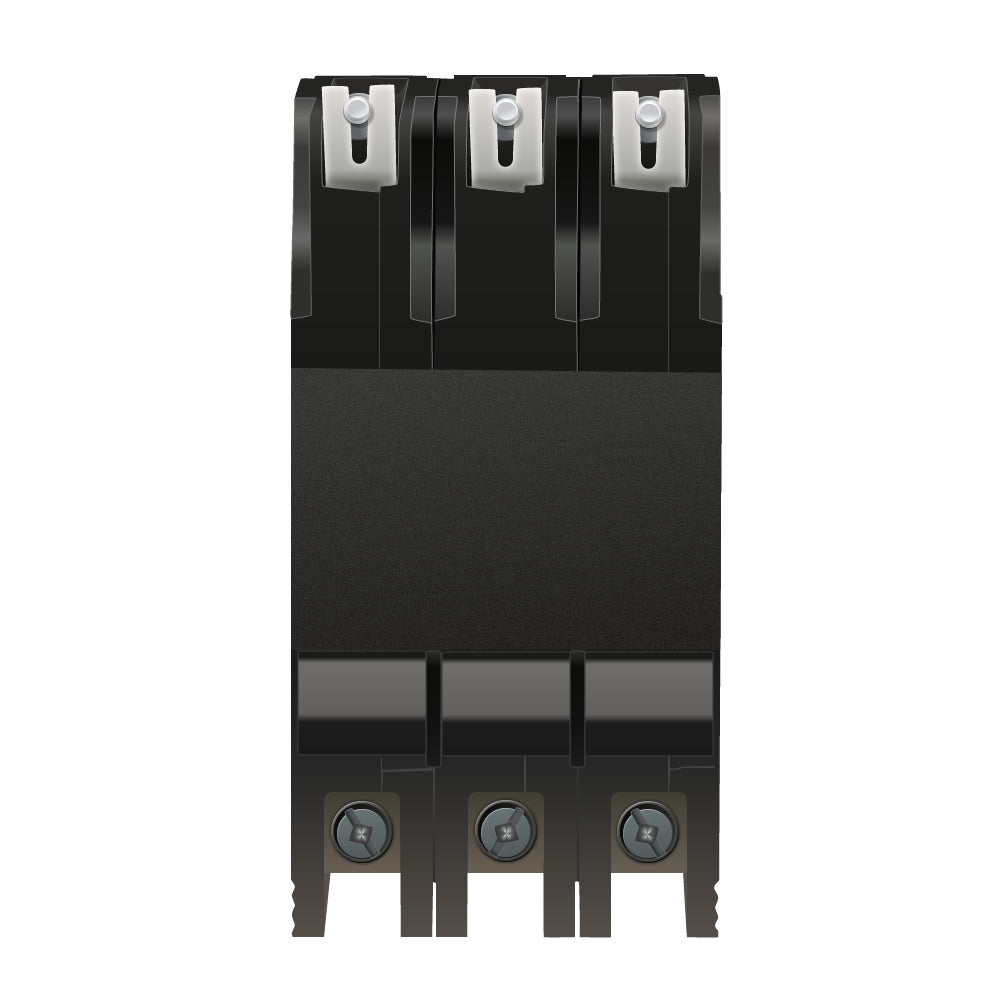

Square D EDB36090 Circuit Breaker | 600V 90A 3P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB36090 is a 3-pole molded case circuit breaker with a 600V rating and 90A capacity. It features thermal magnetic protection and an 18kA@480V AIC rating. Designed for bolt-on connections, it supports wire sizes from 12 AWG (Al) to 2/0 AWG (Cu/Al). This breaker is part of the EDB Series and is cULus certified.

Key Features:
✔ Part Number: EDB36090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: D; E-Frame
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
✔ Protection: Thermal Magnetic
✔ UPC: 785901235521
✔ GTIN: 00785901235521
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.66
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
