Product Description:

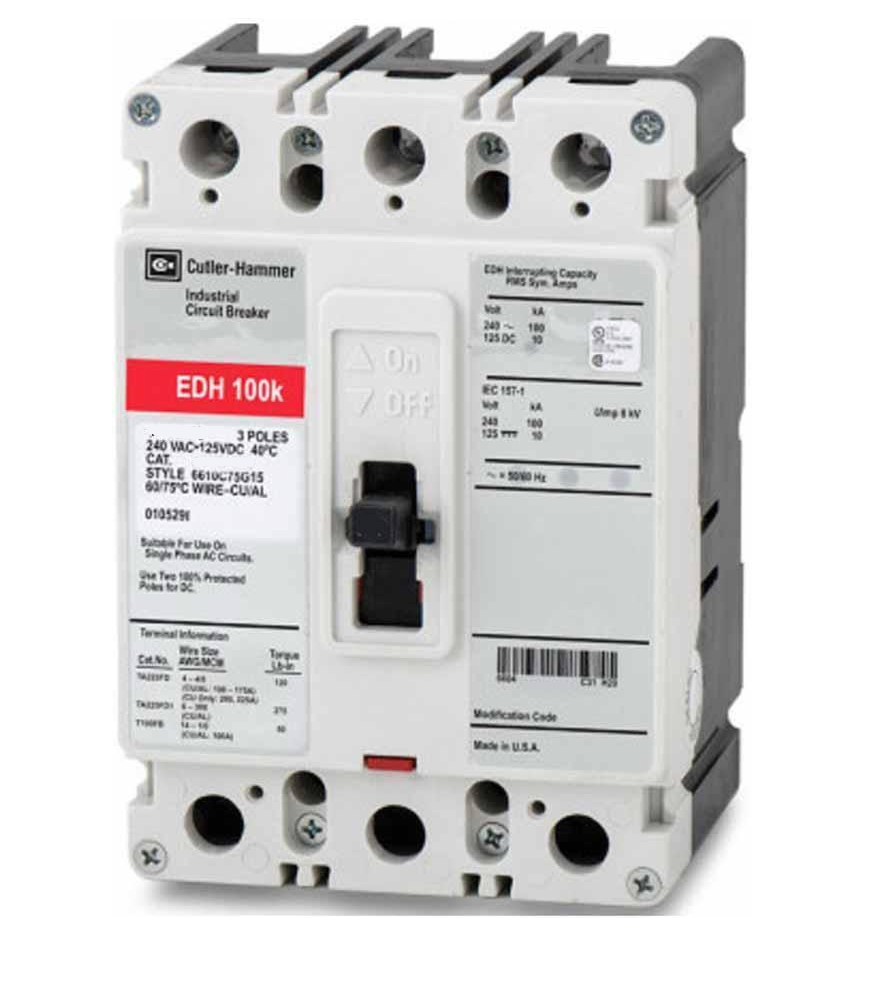

The Cutler Hammer EDH3225 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 240V voltage rating and 225A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 100kA@240V. It uses a Bolt-On connection for secure installation.
Key Features:
✔ Part Number: EDH3225
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: EDH
✔ Voltage: 240
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679455104
✔ GTIN: 00786679455104
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 4.13in Width 4.13in
✔ Weight: 4.5
✔ Certification: UL Listed
✔ Wire Size: 4 to 4/0 AWG
