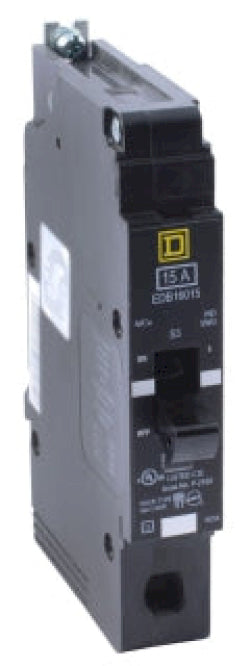

Square D EGB16015 Circuit Breaker | 600V 15A 1P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB16015 is a Molded Case Circuit Breaker from the EGB Series. It features a 1-pole design with a 600V, 15A rating and a 35kA@480V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection and is suitable for NF panelboards.

Key Features:
✔ Part Number: EGB16015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901235729
✔ GTIN: 00785901235729
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in
✔ Weight: 1
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
