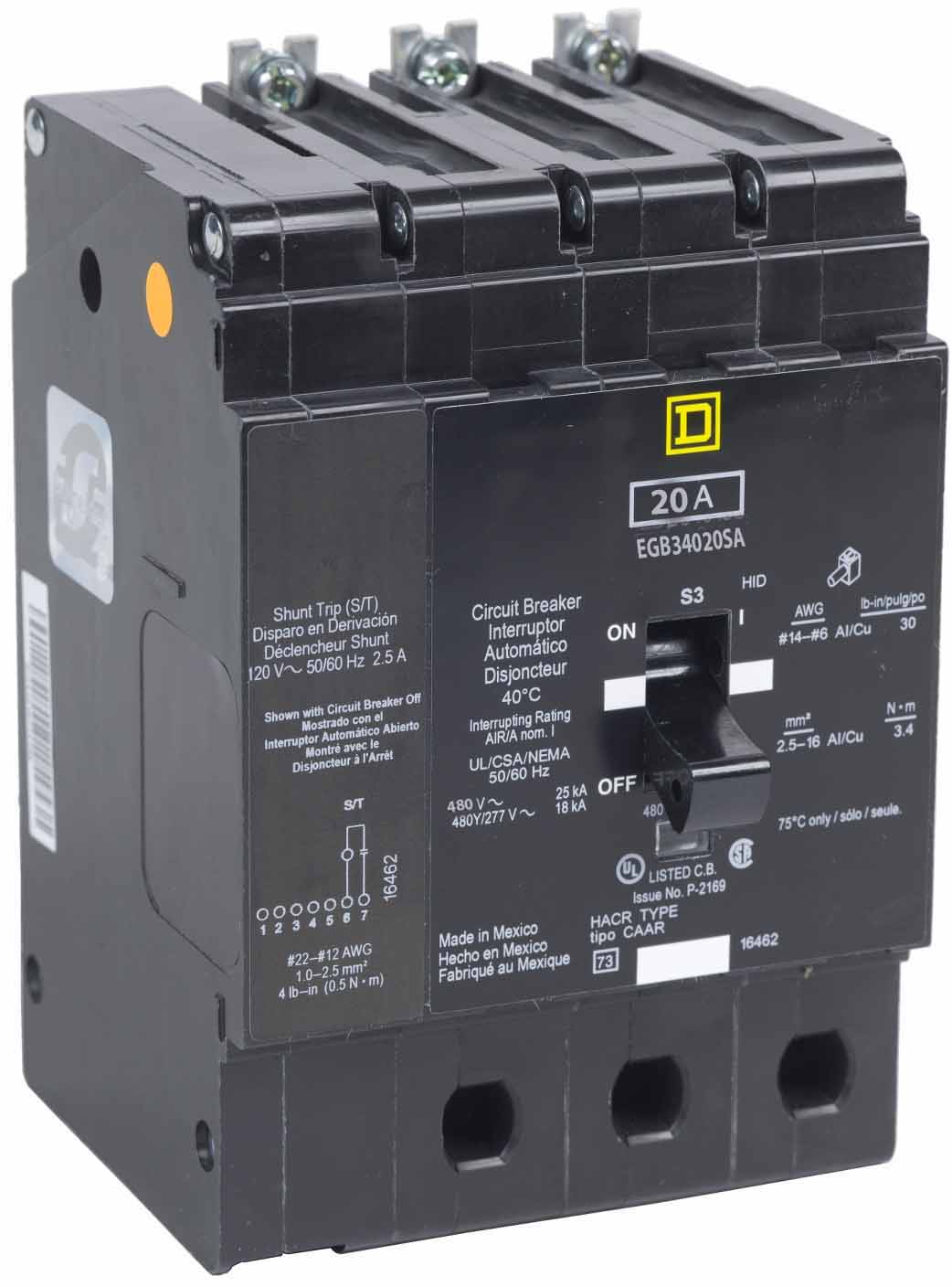

Square D EGB34020SA Circuit Breaker | 480V 20A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB34020SA is a Molded Case Circuit Breaker from the EGB Series. It features a 3-pole design with a 480V, 20A rating and a 35kA@480V AIC rating. This breaker includes thermal magnetic protection and a bolt-on connection. It comes complete with a 120V shunt trip for added functionality.

Key Features:
✔ Part Number: EGB34020SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901726579
✔ GTIN: 00785901726579
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 1.97
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum / AWG 14...AWG 6 copper
