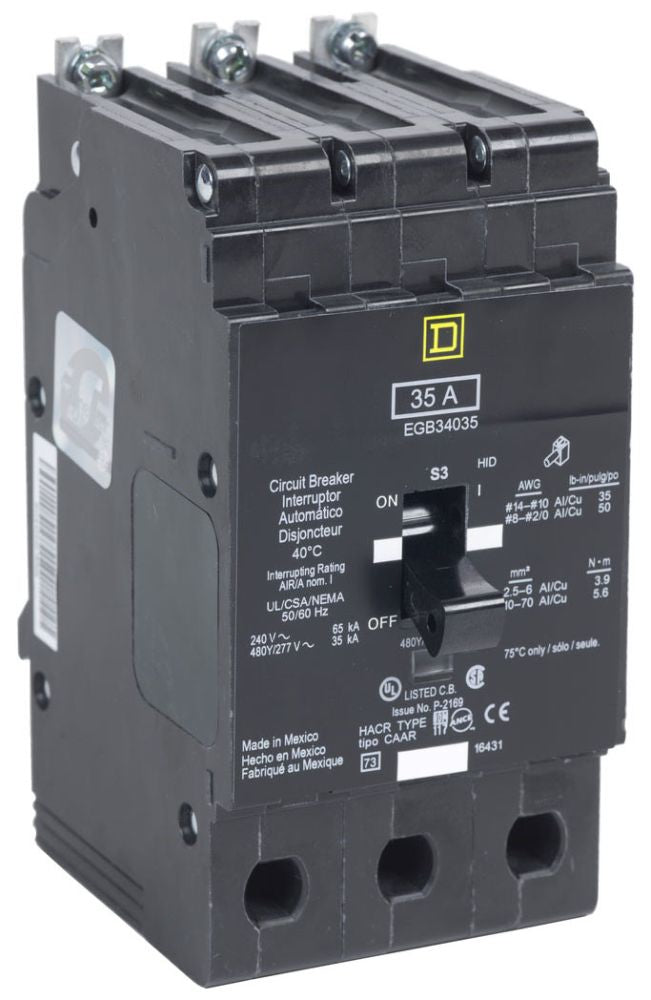

Square D EGB34035 Circuit Breaker | 480V 35A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB34035 is a Molded Case Circuit Breaker from the EGB Series. It features a 3-pole design with a 480V voltage rating and 35 amp capacity, offering a 35kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Bolt-On connection for secure installation. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: EGB34035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ Wire Size: Min. 12 AWG (Al), 14 AWG (Cu) Max. 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901311164
✔ GTIN: 00785901311164
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.63
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
