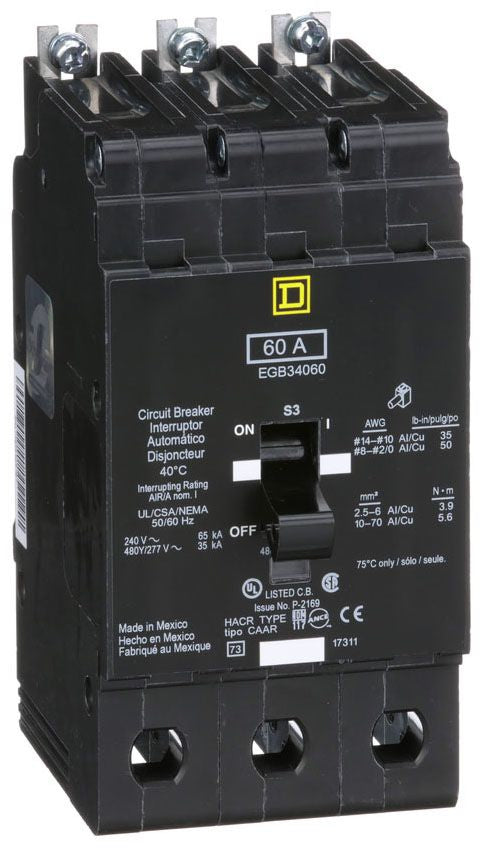

Square D EGB34060 Circuit Breaker | 480V 60A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB34060 is a 3-pole molded case circuit breaker designed for 480V electrical systems. It has a 60 amp rating and provides reliable thermal magnetic protection. This bolt-on connection breaker is suitable for use in NF panelboards and is certified for safety standards.

Key Features:
✔ Part Number: EGB34060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901073055
✔ GTIN: 00785901073055
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.63
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
