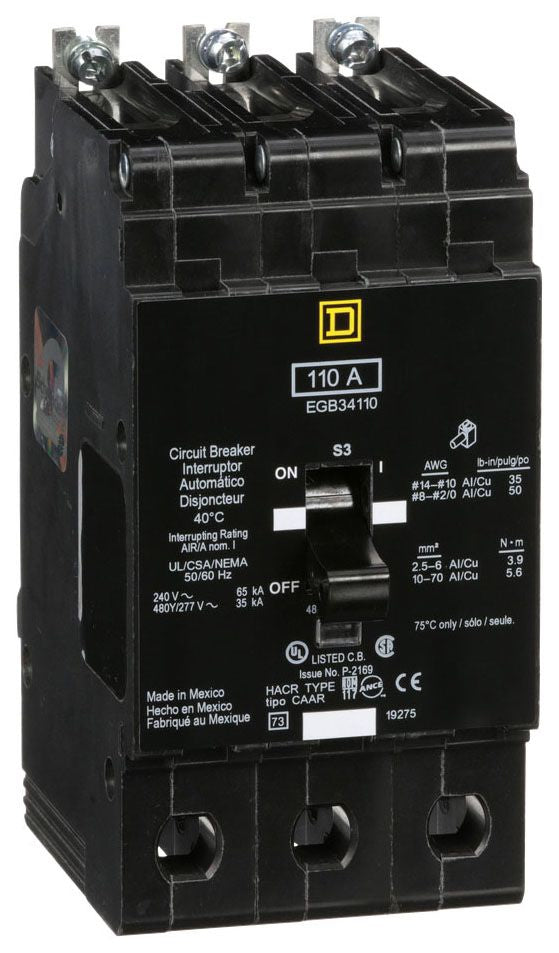

Square D EGB34110 Circuit Breaker | 480V 110A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB34110 is a 3-pole molded case circuit breaker designed for 480V electrical systems. It provides reliable circuit protection with a 110A current rating and a 35kA interrupting capacity. This thermal magnetic breaker features a bolt-on connection for secure installation in industrial and commercial applications.

Key Features:
✔ Part Number: EGB34110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 785901130482
✔ GTIN: 00785901130482
✔ Country of Origin: United States
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 1.6
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum
AWG 14...AWG 2/0 copper
