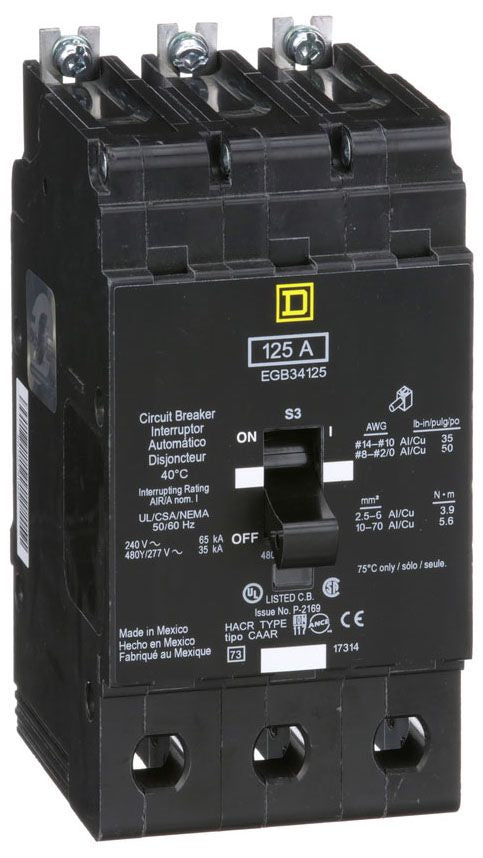

Square D EGB34125 Circuit Breaker | 480V 125A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB34125 is a Molded Case Circuit Breaker from the EGB Series. It features a 3-pole design with a 480V, 125A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: EGB34125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ Wire Size: Min. 12 AWG (Al), 14 AWG (Cu) Max. 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901326342
✔ GTIN: 00785901326342
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.62 lb
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
