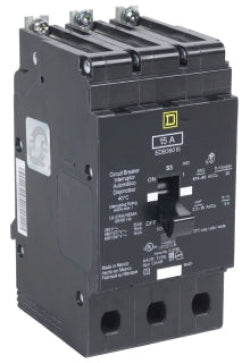

Square D EGB36015 Circuit Breaker | 480V 15A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB36015 is a 3-pole molded case circuit breaker designed for 480V electrical systems. It provides reliable thermal magnetic protection and has an interrupting rating of 35kA at 480V. This bolt-on circuit breaker is suitable for use in NF panelboards and is certified for safety standards.

Key Features:
✔ Part Number: EGB36015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ Wire Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901234463
✔ GTIN: 00785901234463
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.67
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
