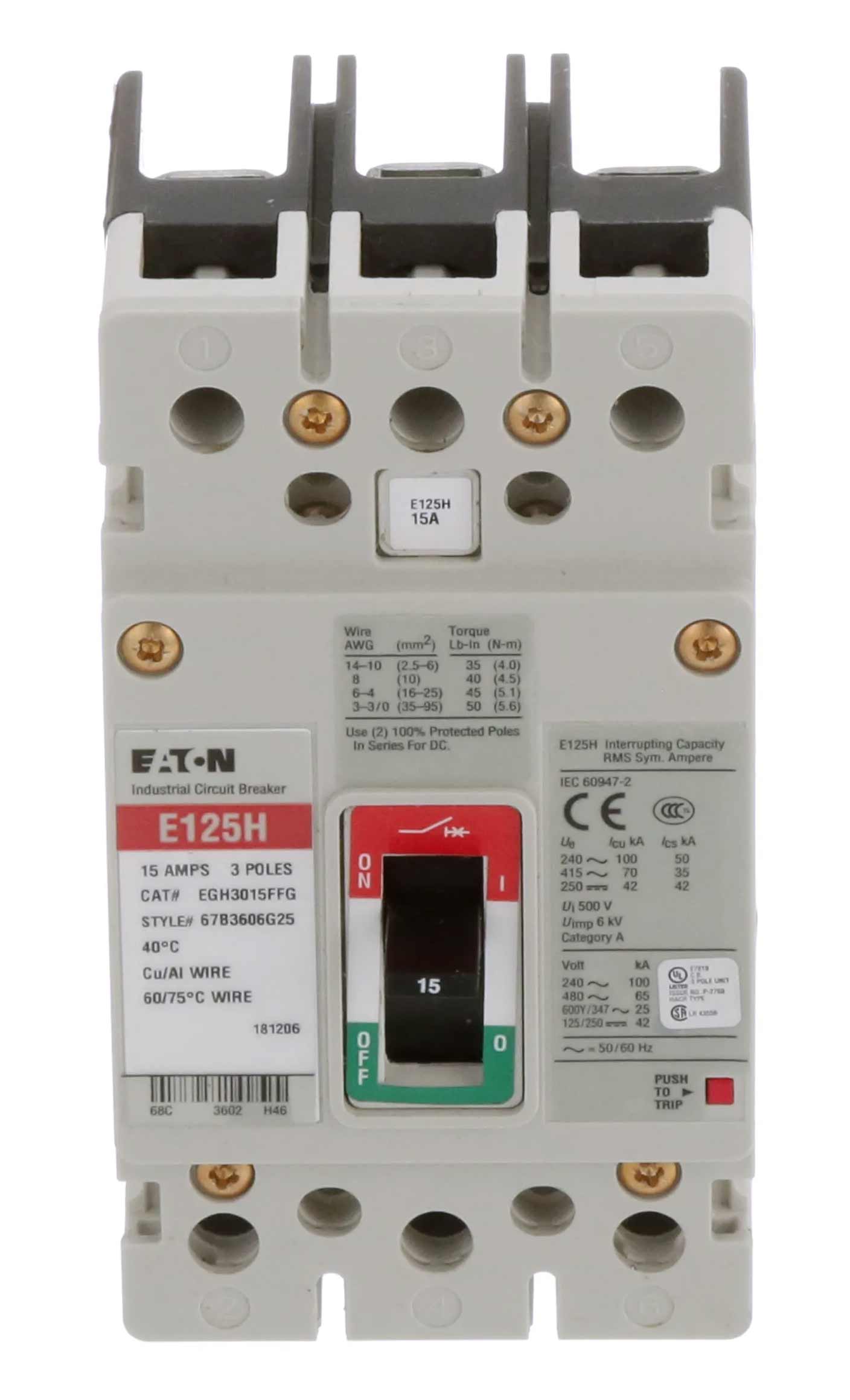

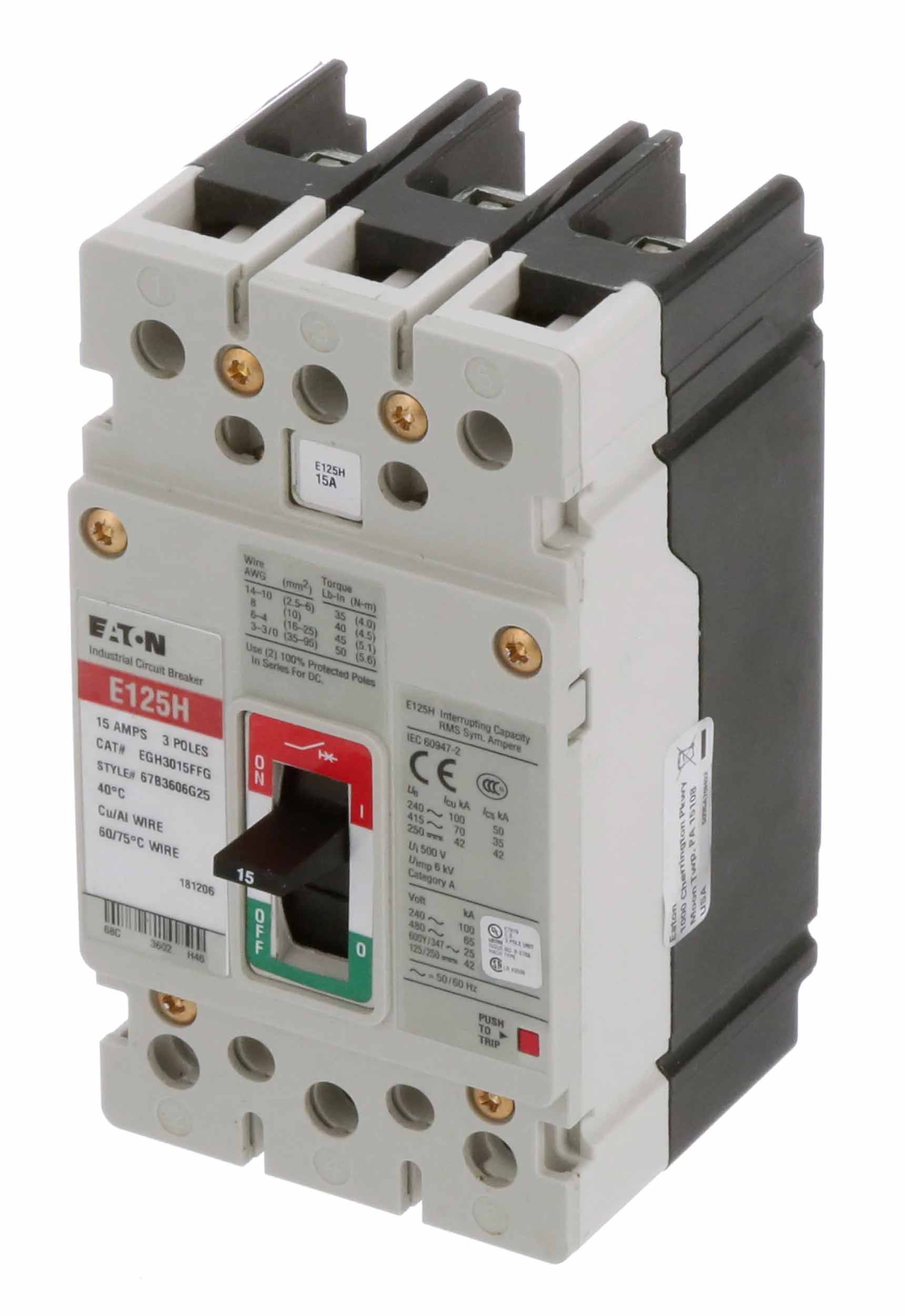

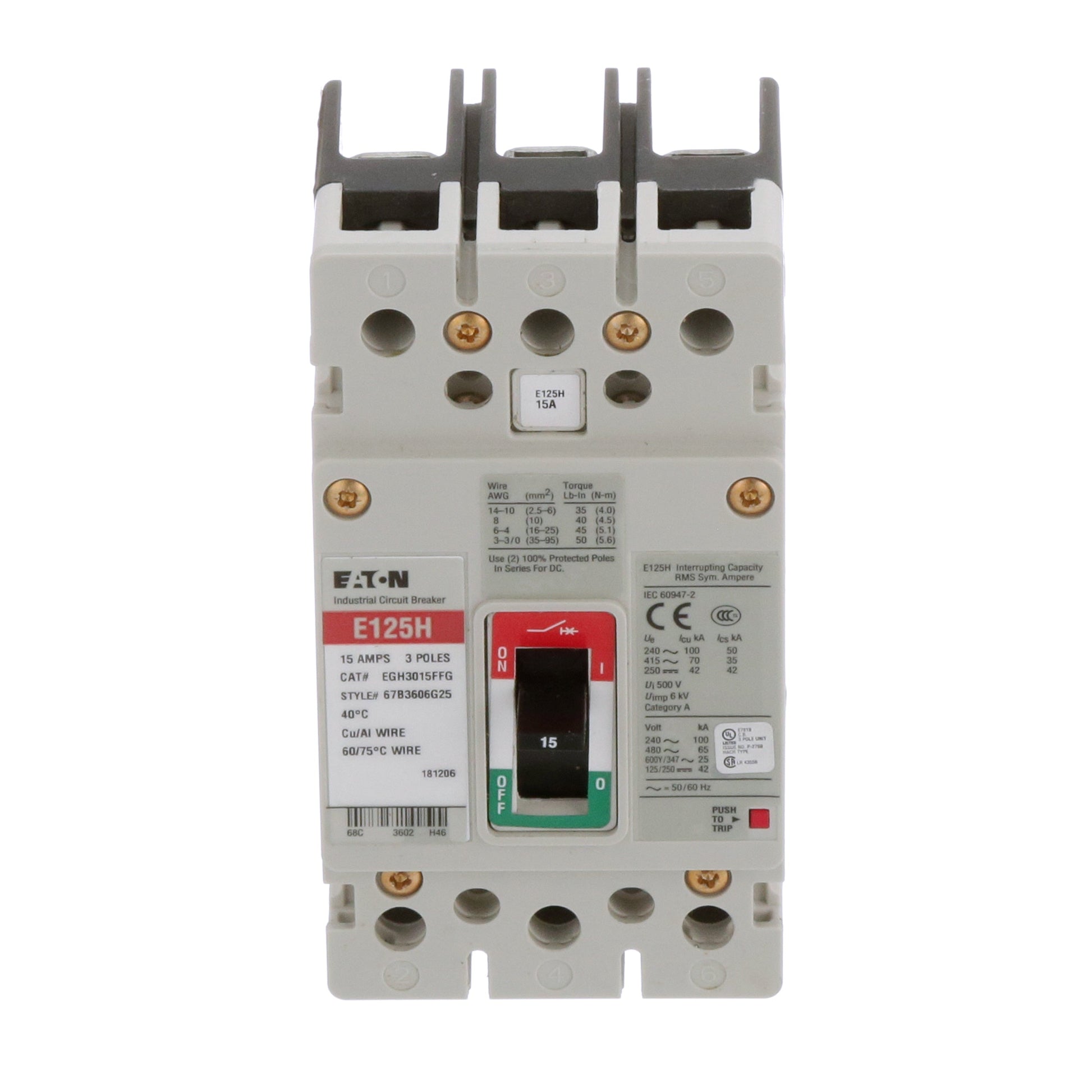

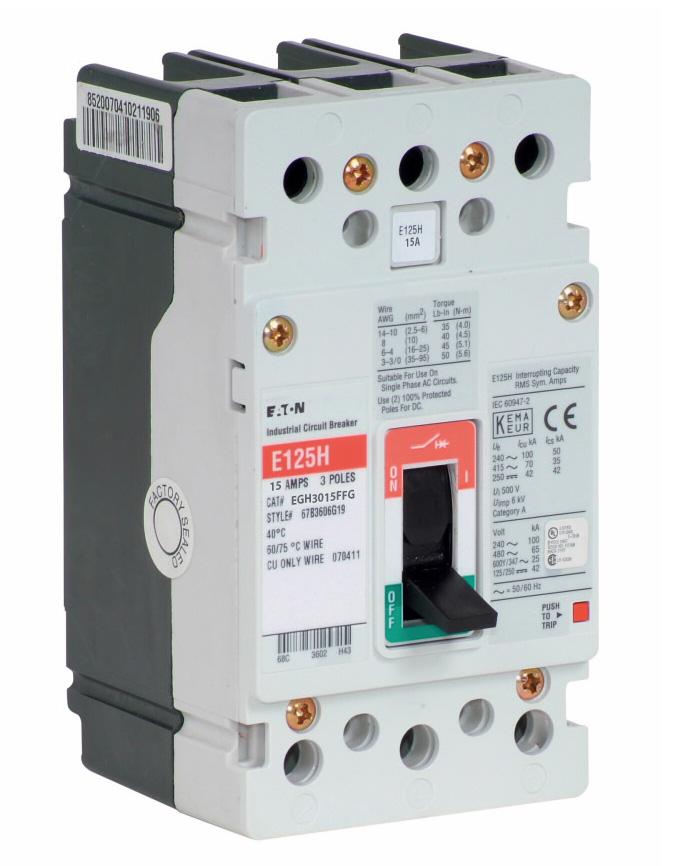

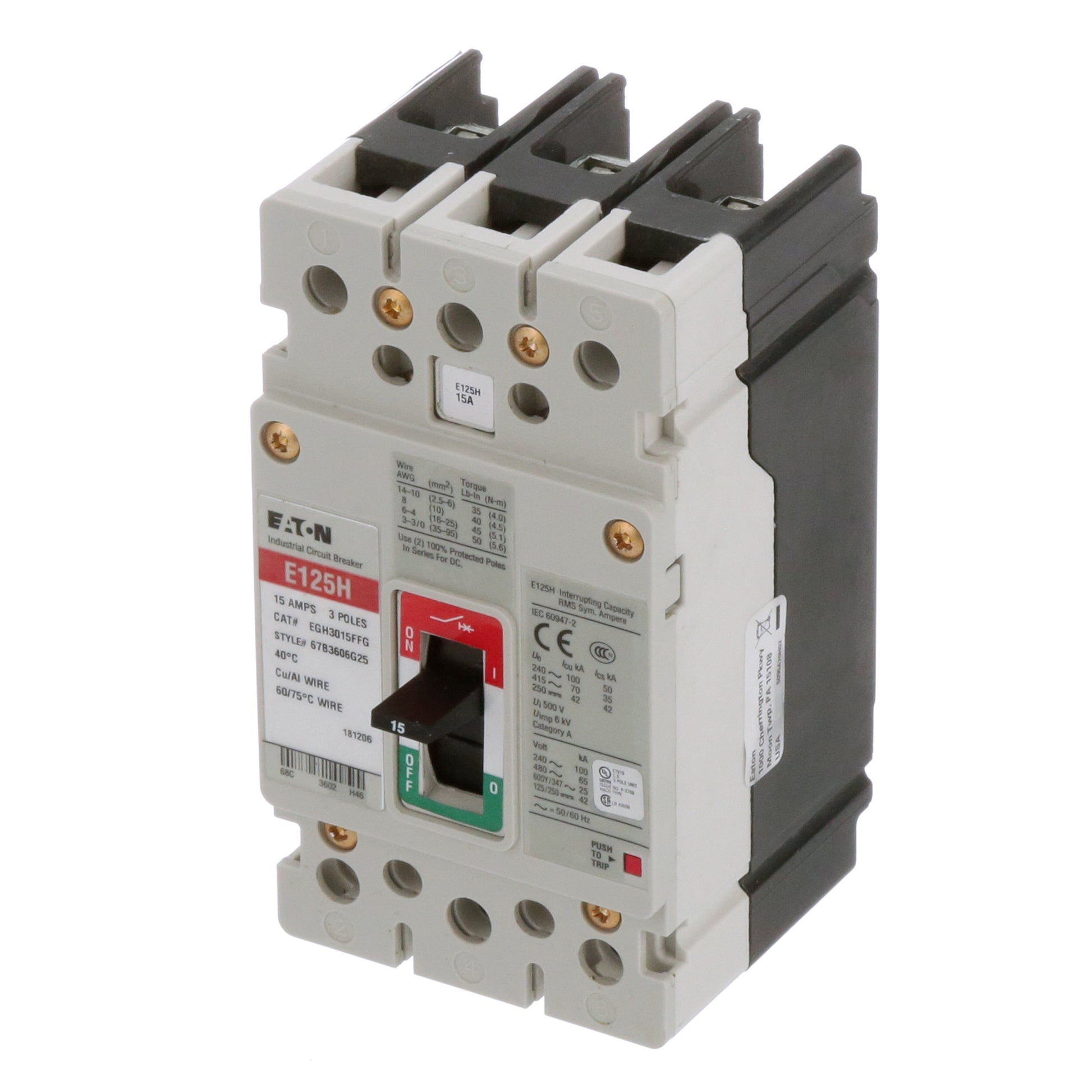

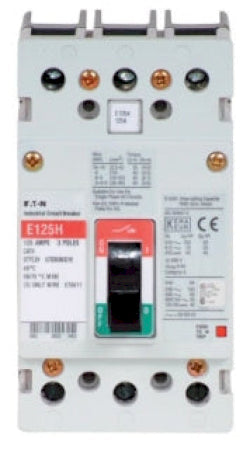

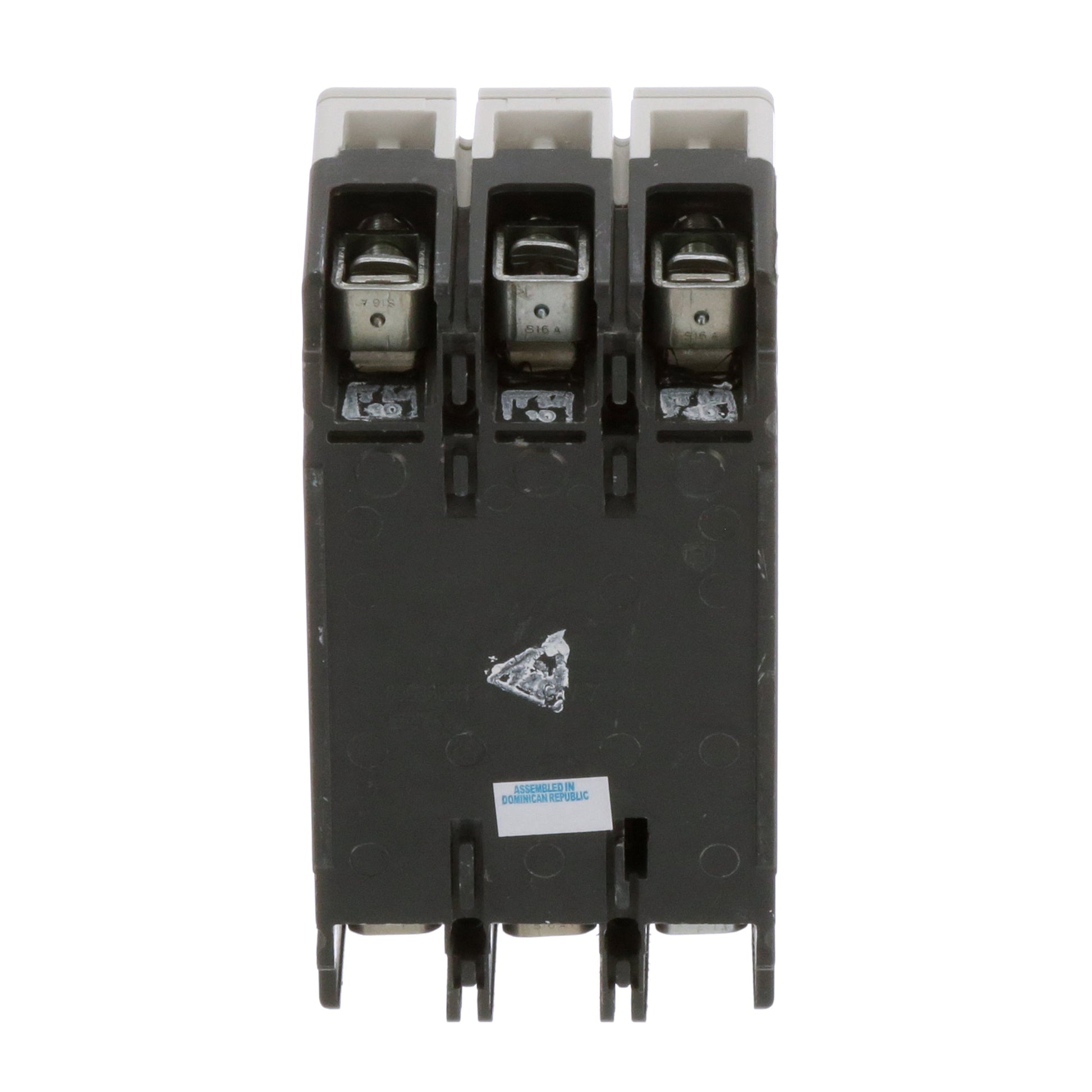

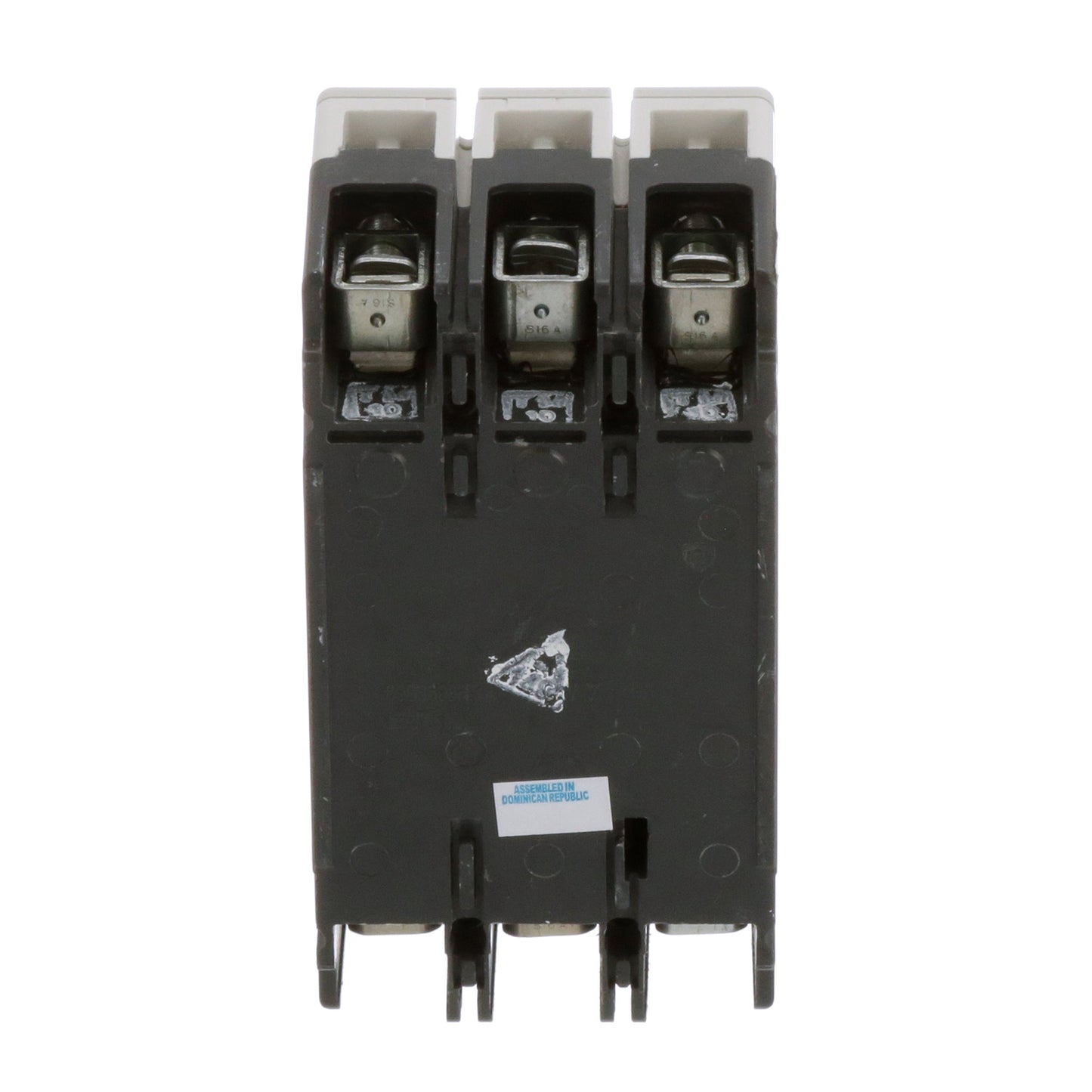

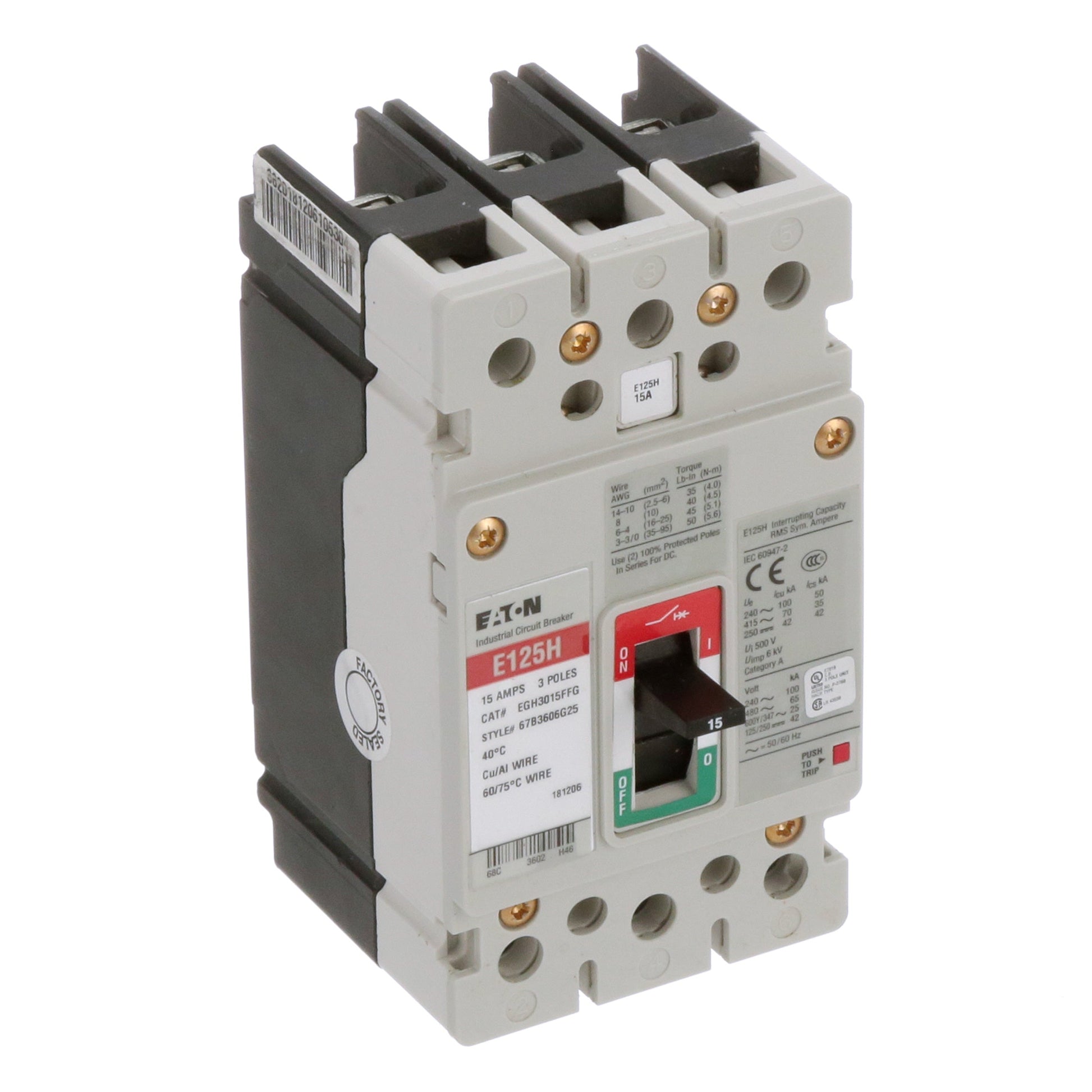

Cutler Hammer EGH3015FFG Molded Case Circuit Breaker | 600V 15A 3P 65kA@480V Bolt-On Series G

Product Description:
The Cutler Hammer EGH3015FFG is a Molded Case Circuit Breaker from the Series G family. It is a 3-pole, 15 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: EGH3015FFG
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: EGH
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 125A/EG
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 782116131204
✔ GTIN: 00782116131204
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3 in x 5.5 in
✔ Weight: 3
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
