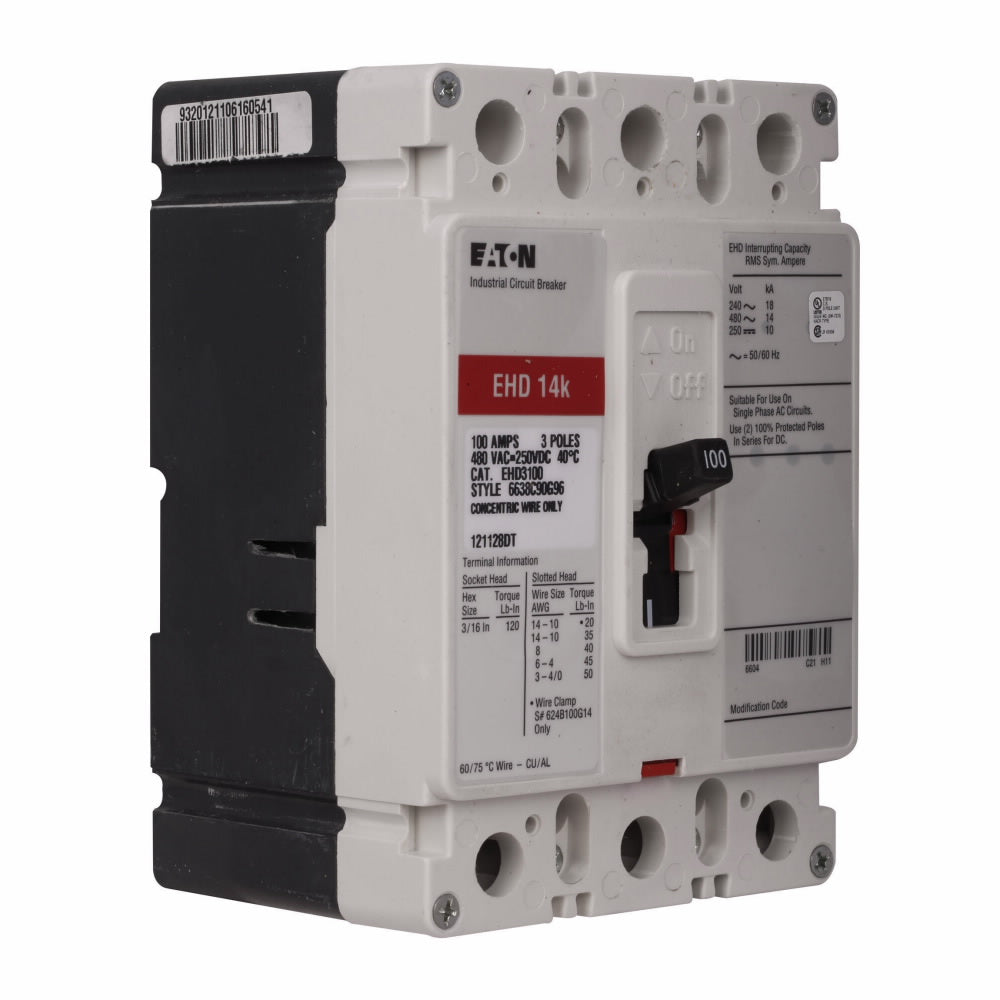

Cutler Hammer EHD3100 Molded Case Circuit Breaker | 480V 100A 3P 14kA@480V Bolt-On Series C

Product Description:
The Cutler Hammer EHD3100 is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 100 amp breaker rated for 480 volts with an AIC rating of 14kA@480V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: EHD3100
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: EHD
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 100A/F
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679317204
✔ GTIN: 00786679317204
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.13 in x 6 in
✔ Weight: 4.5
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
