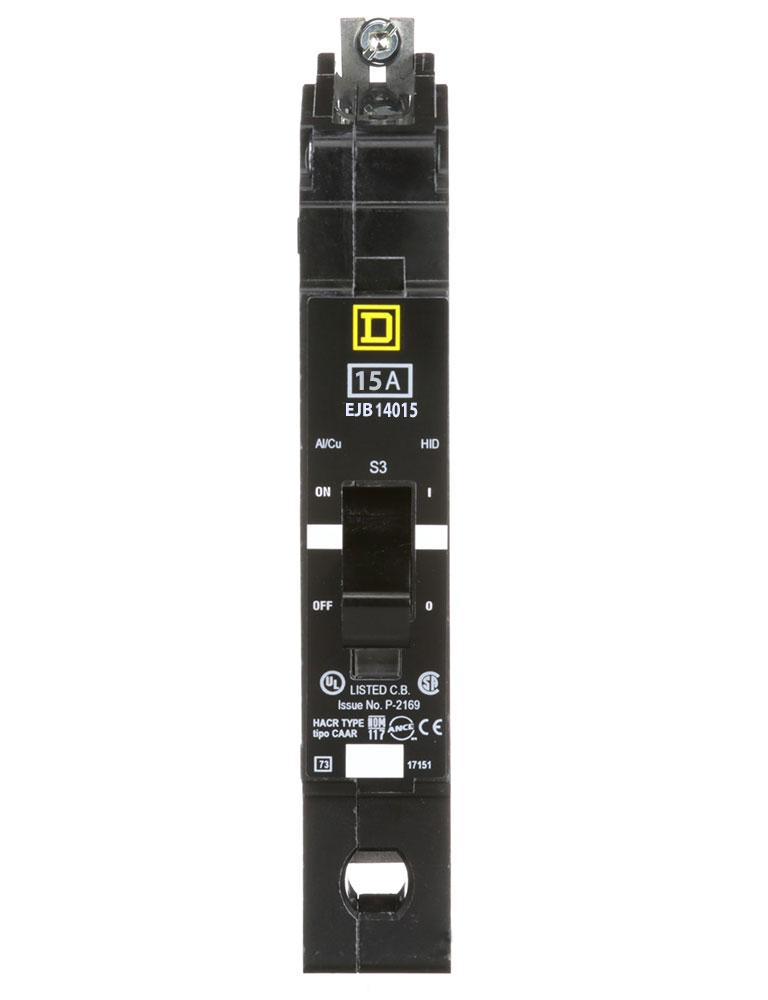

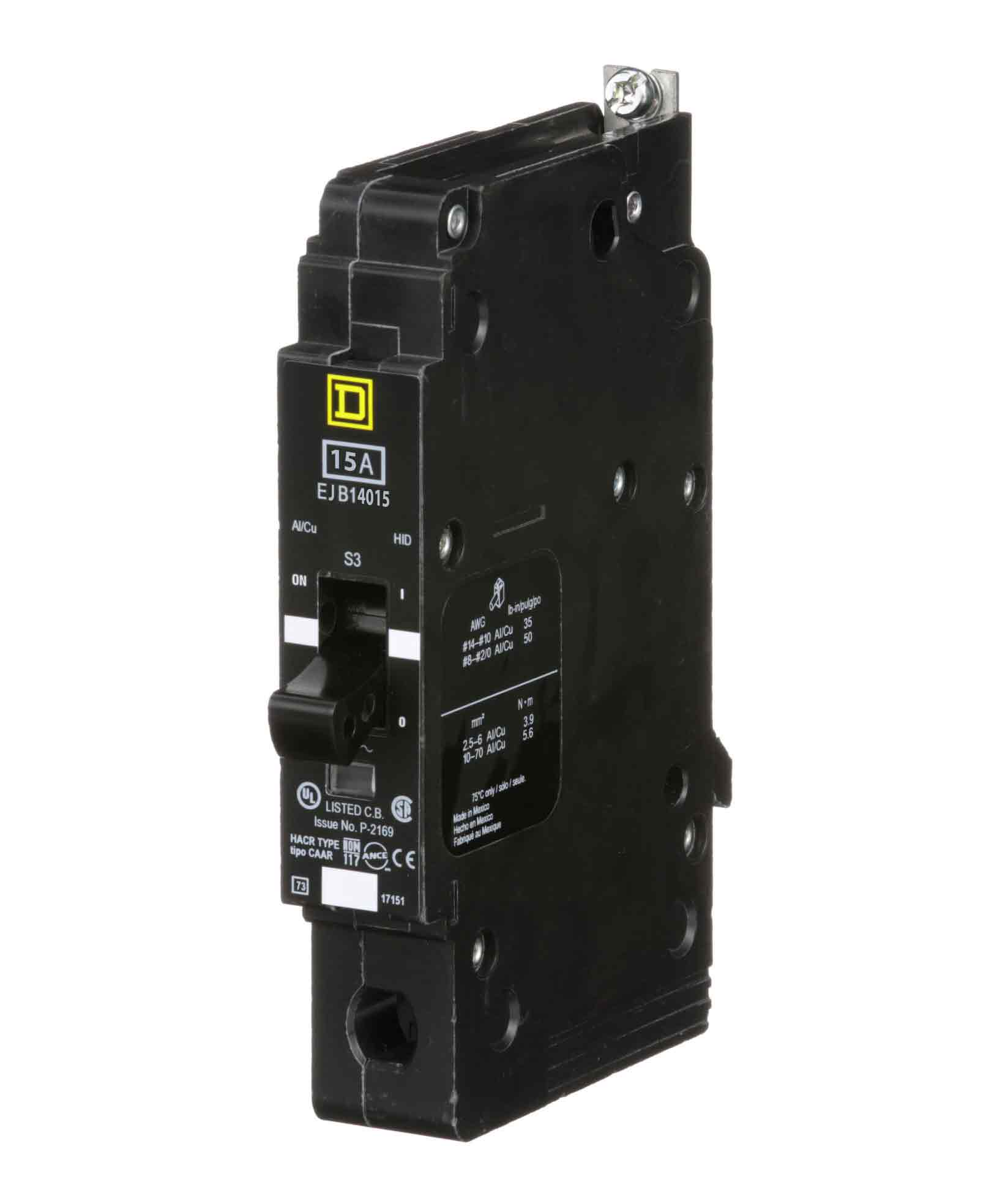

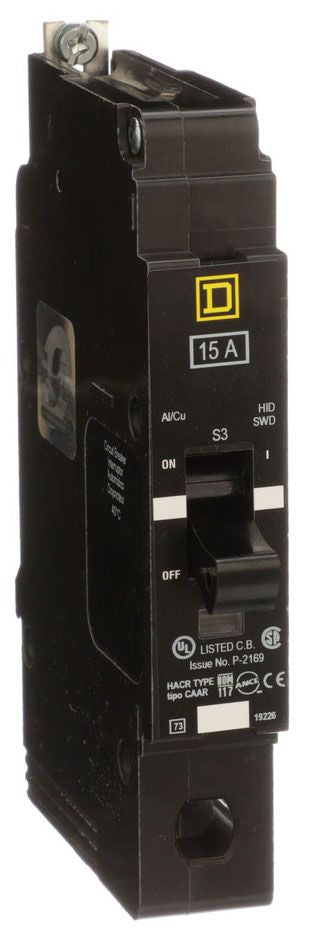

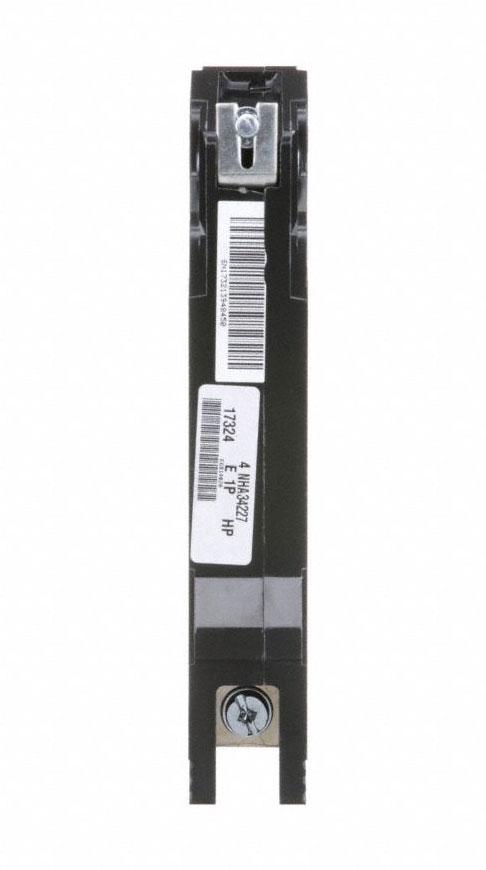

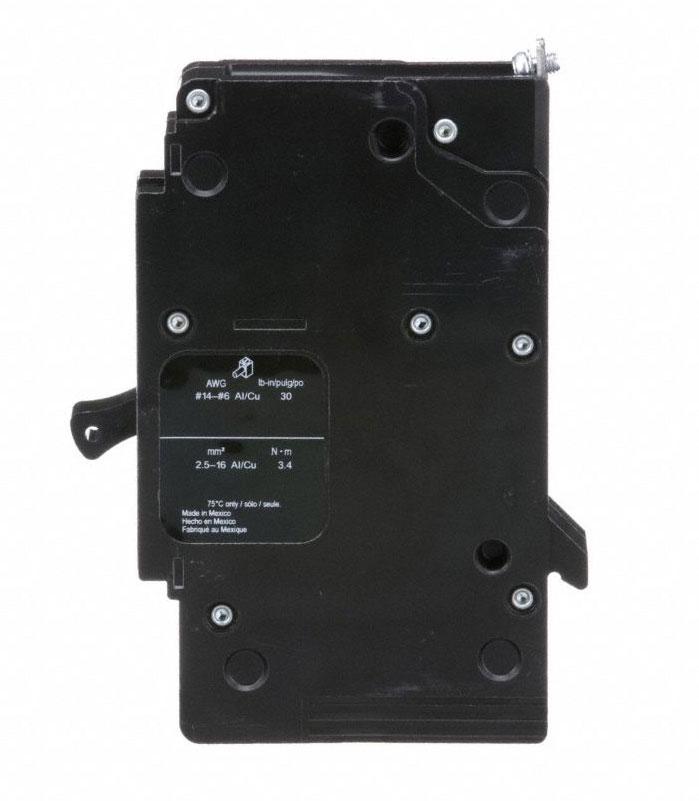

Square D EJB14015 Molded Case Circuit Breaker | 277V 15A 1P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB14015 is a Molded Case Circuit Breaker from the EJB Series, designed for reliable circuit protection. It is a 1-pole, 15 amp breaker rated for 277 volts with a 65kA@480V AIC rating. This model features a bolt-on connection and thermal magnetic protection for enhanced safety and performance.

Key Features:
✔ Part Number: EJB14015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 277
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901130499
✔ GTIN: 00785901130499
✔ Country of Origin: Mexico
✔ Dimensions: Height 6.64 in (168.66 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
