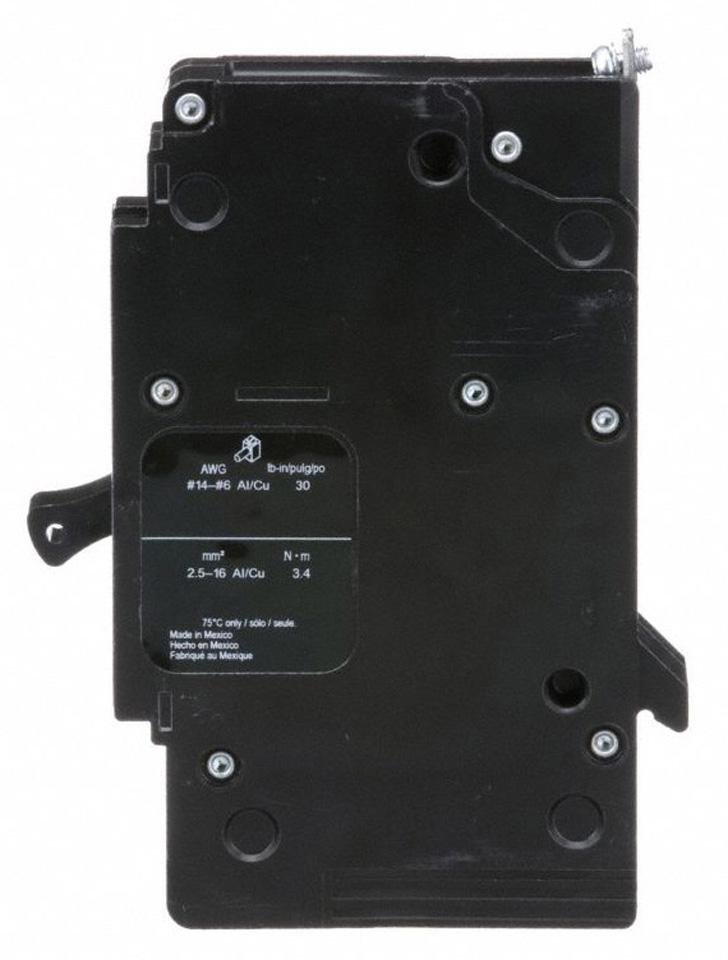

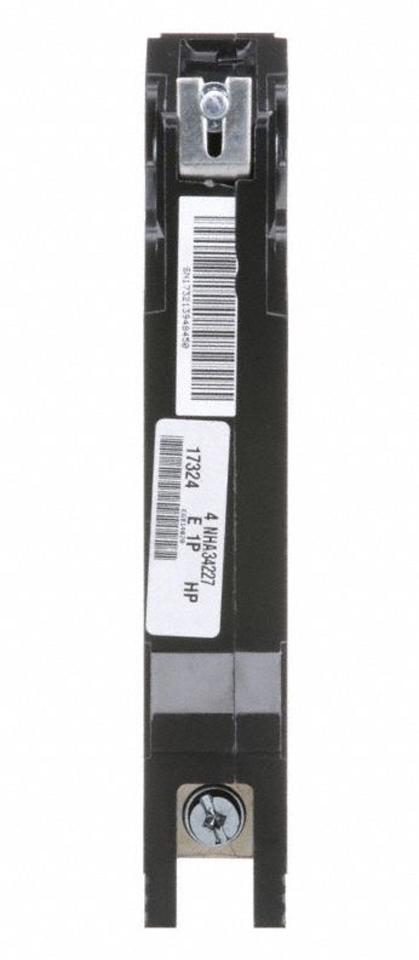

Square D EJB16030 Circuit Breaker | 600V 30A 1P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB16030 is a Molded Case Circuit Breaker from the EJB Series. It features a 1-pole design with a 600V, 30A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: EJB16030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901239109
✔ GTIN: 00785901239109
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum / AWG 14...AWG 6 copper
