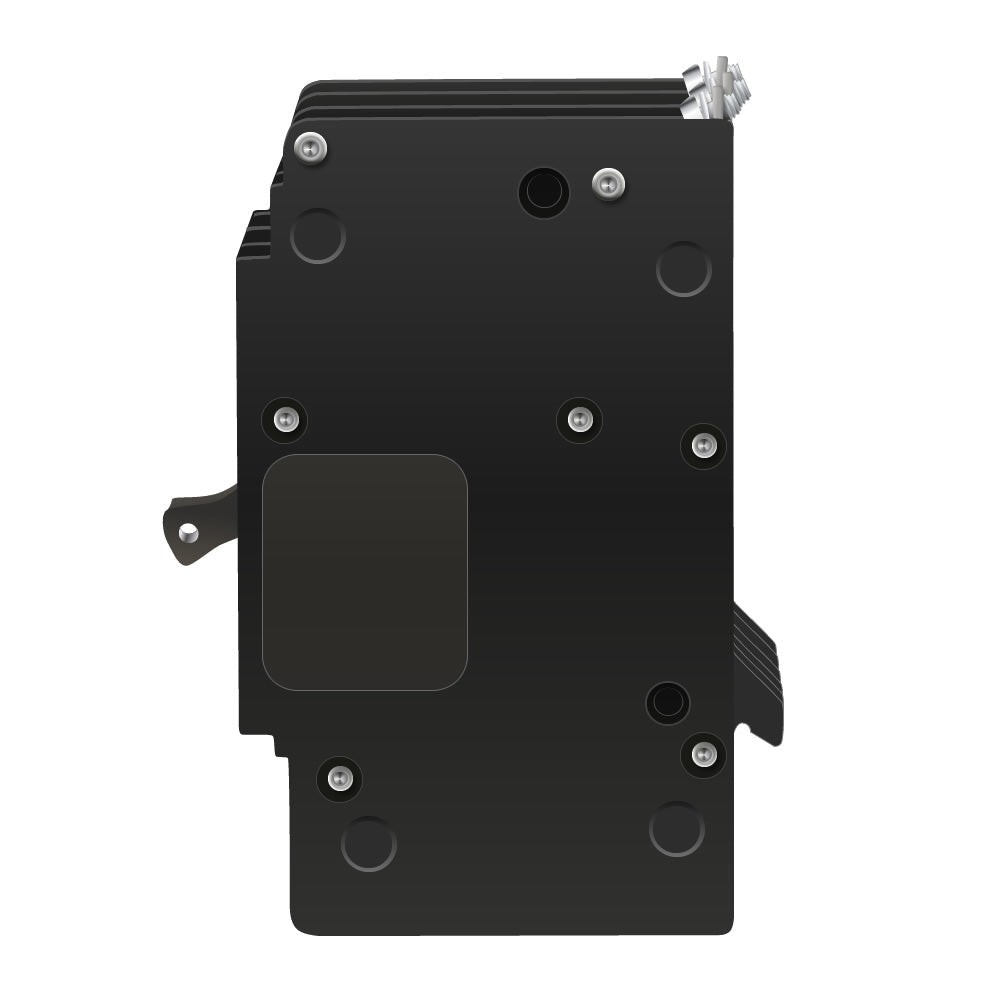

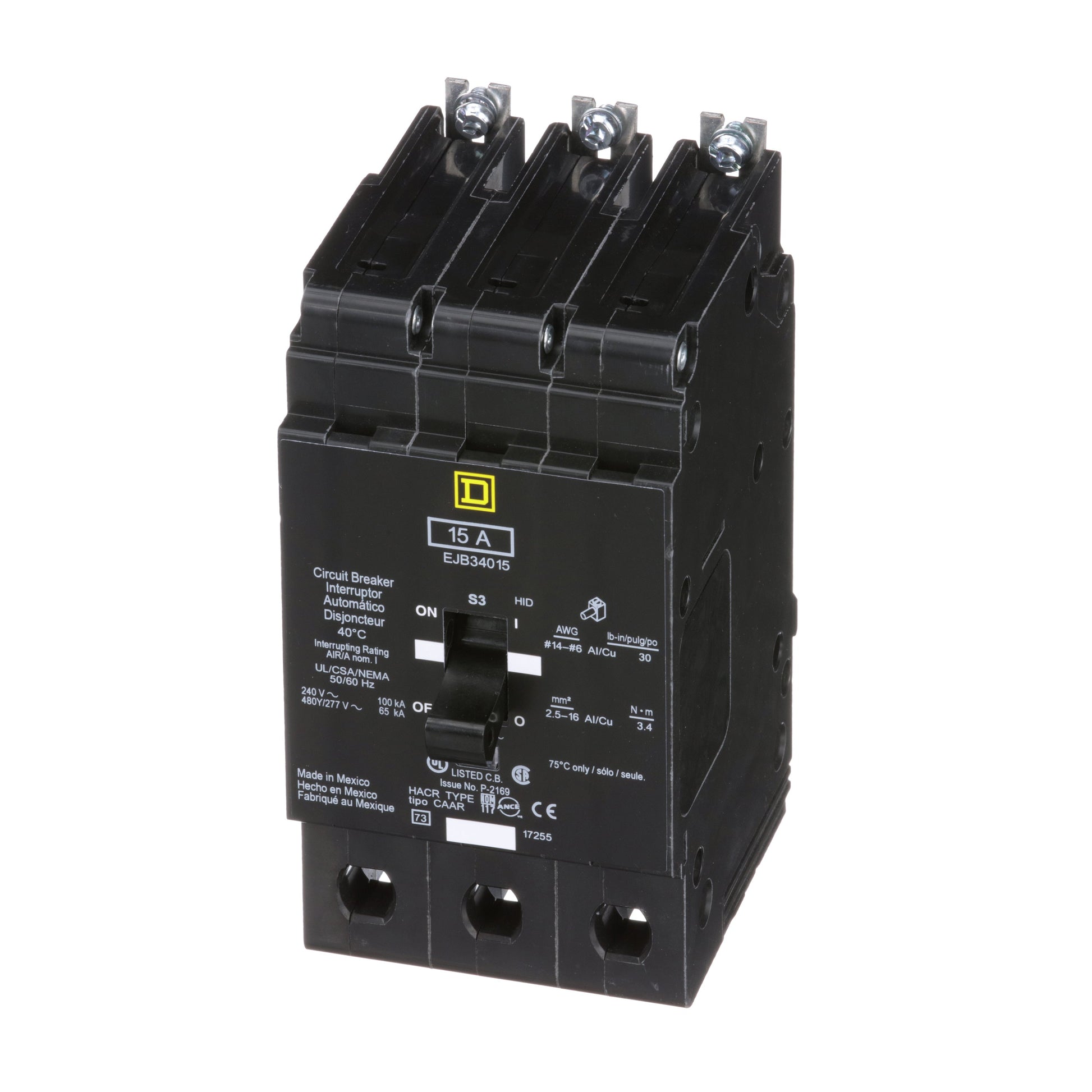

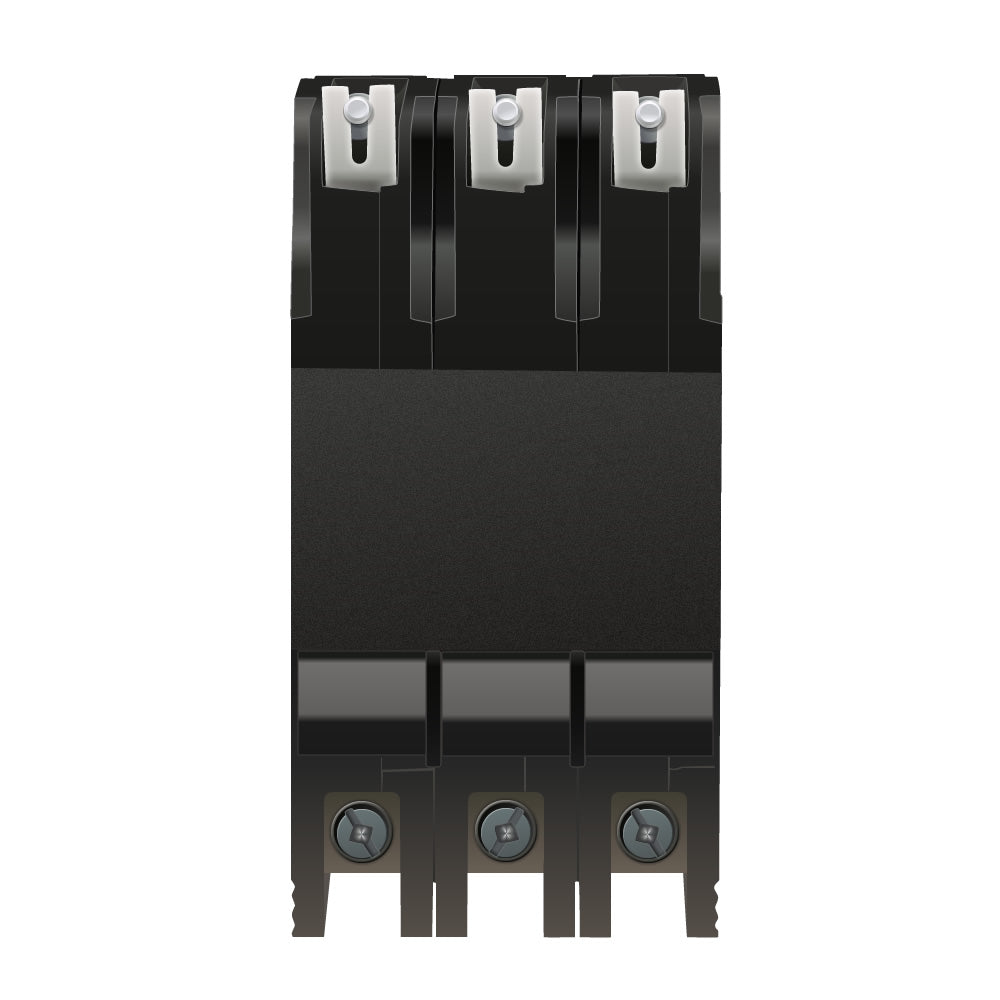

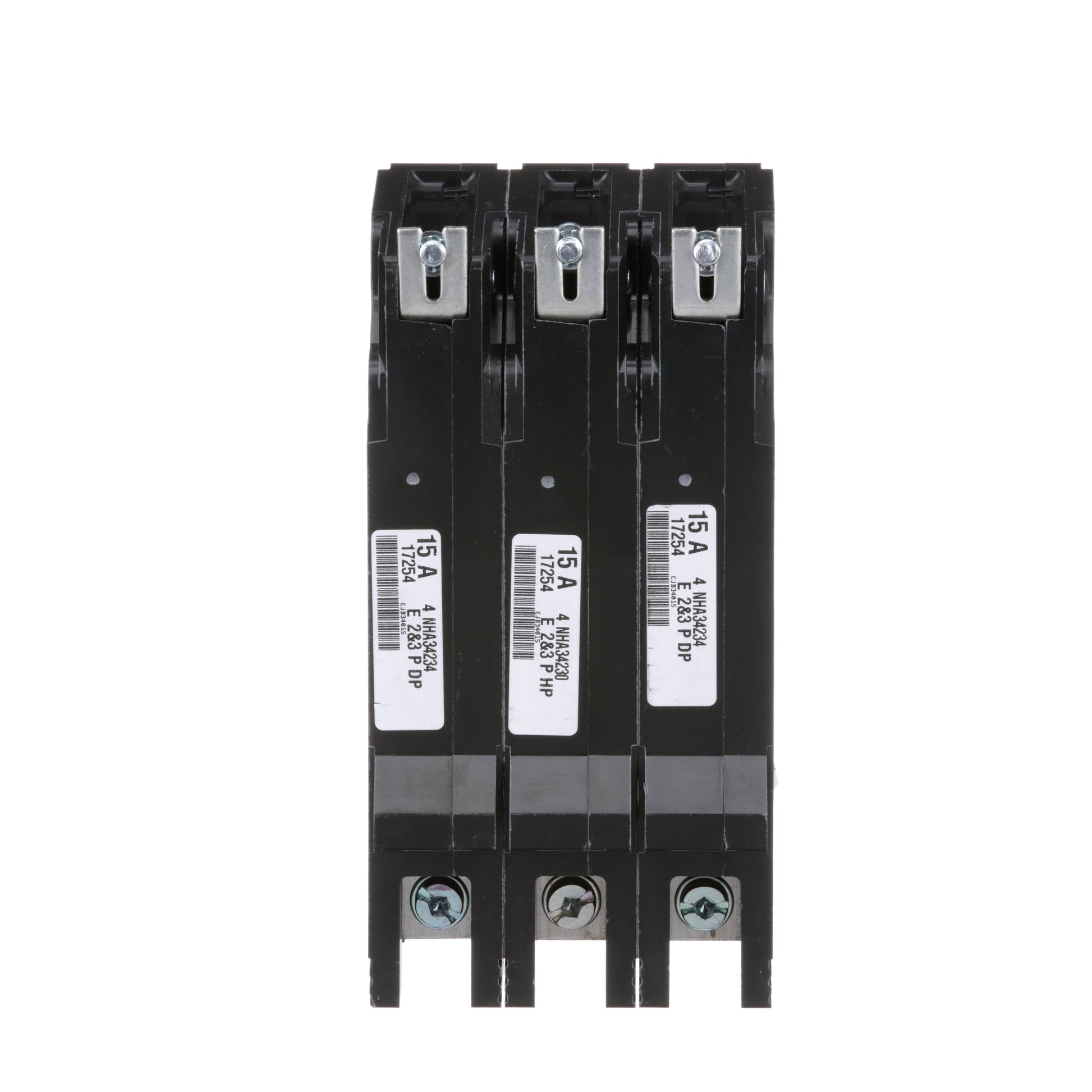

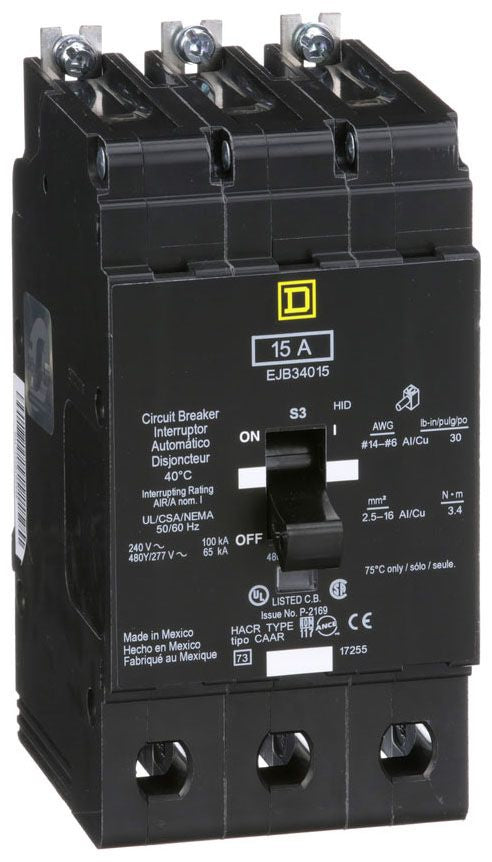

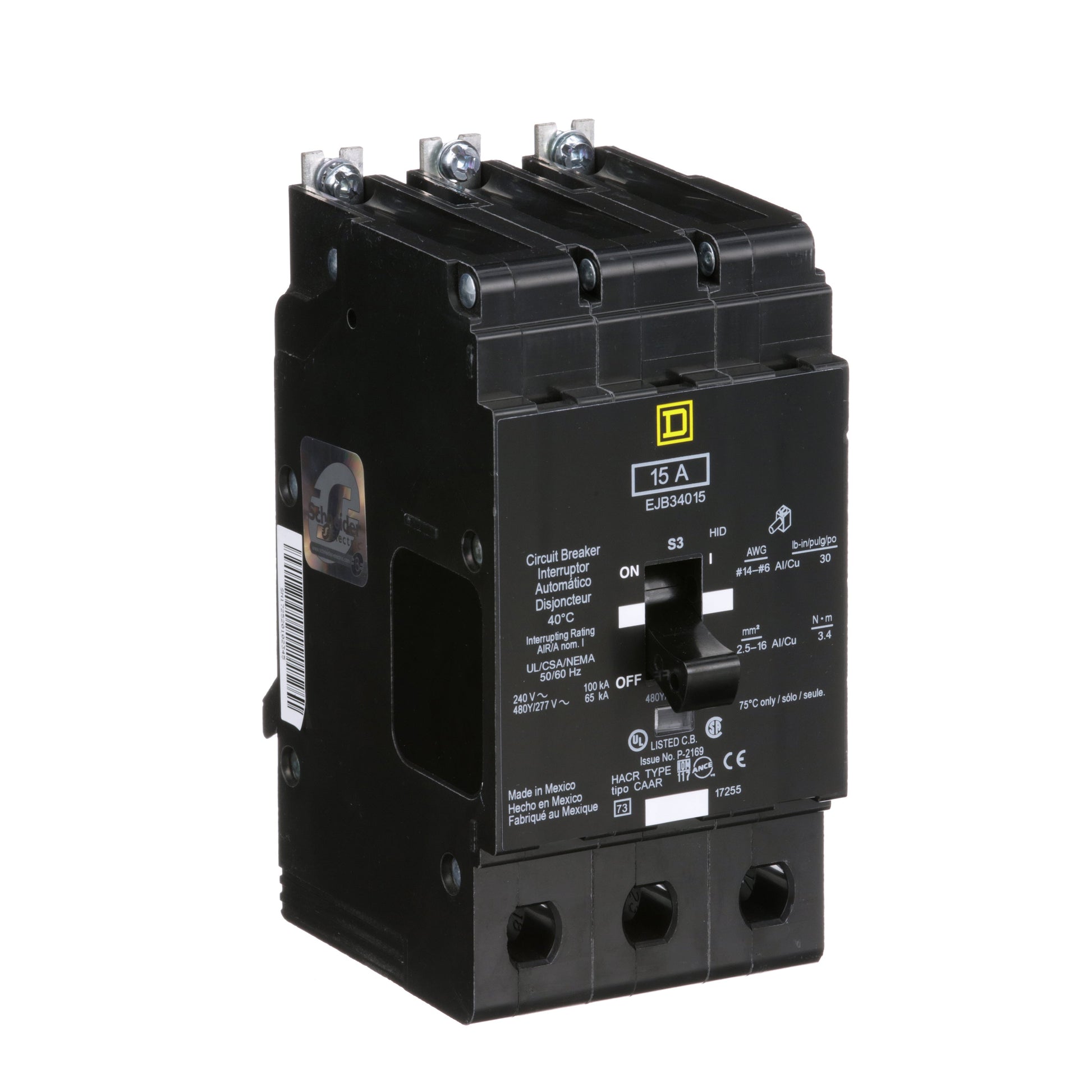

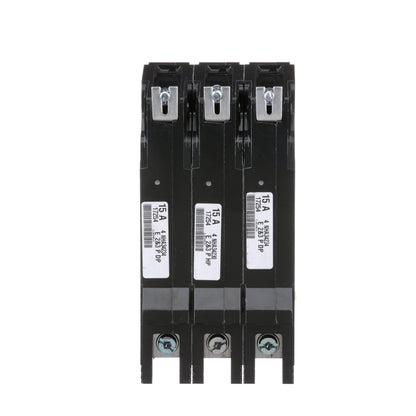

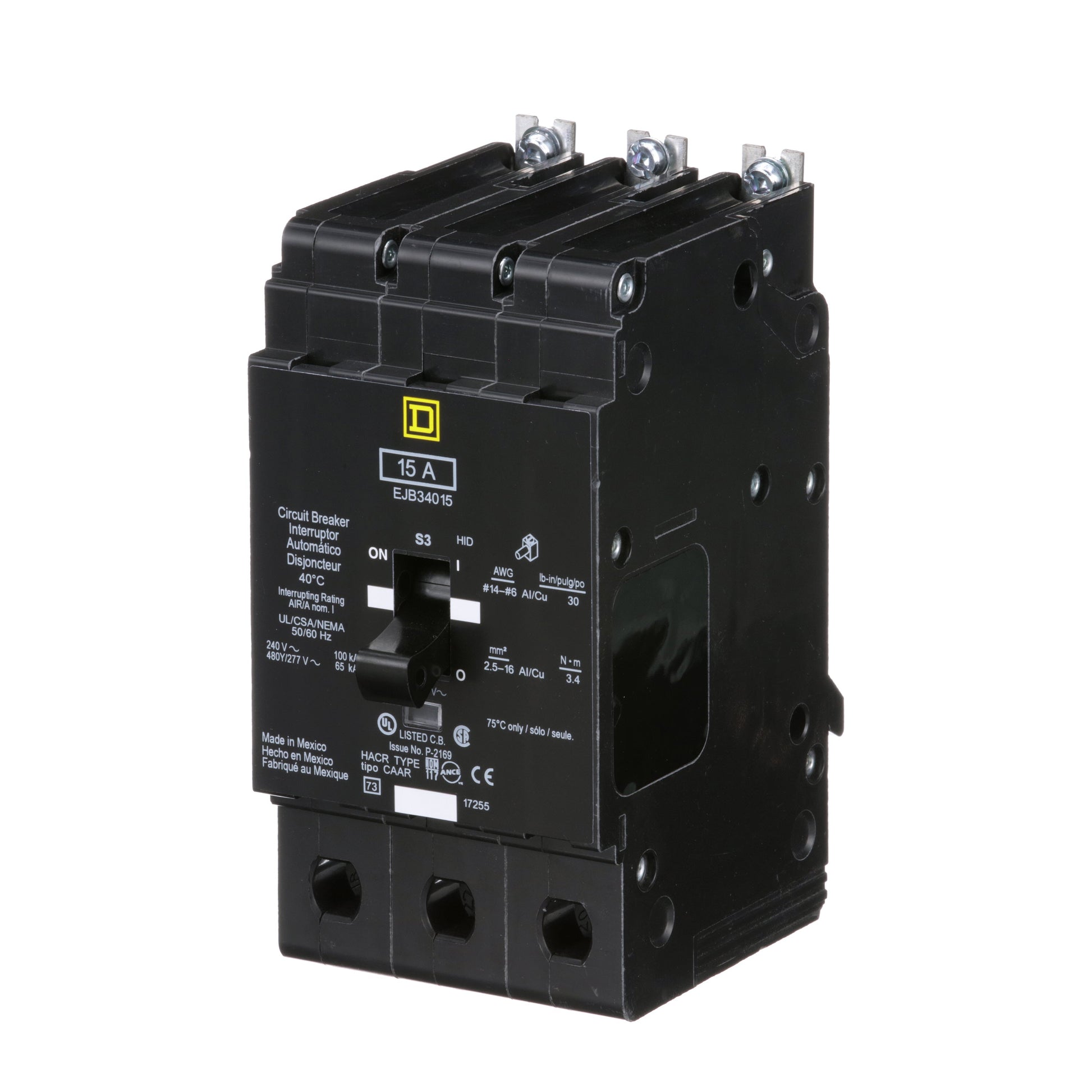

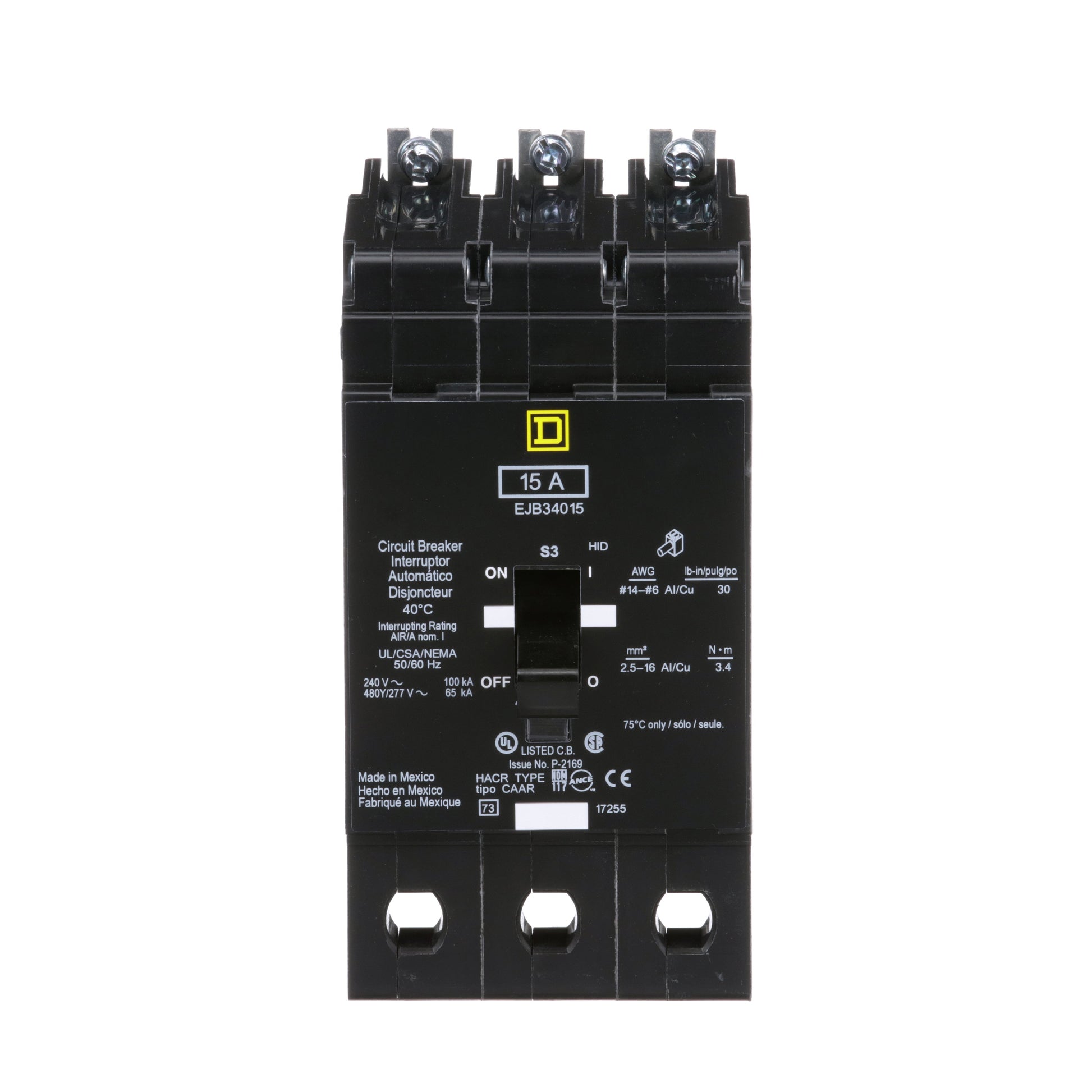

Square D EJB34015 Circuit Breaker | 480V 15A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB34015 is a Molded Case Circuit Breaker from the EJB Series. It features a 3-pole design with a 480V voltage rating and 15A amperage. This breaker offers Thermal Magnetic protection and has an AIC rating of 65kA@480V. It uses a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: EJB34015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: J; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901335221
✔ GTIN: 00785901335221
✔ Country of Origin: Mexico
✔ Dimensions: 2.94 in x 5.66 in
✔ Weight: 1.67
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
