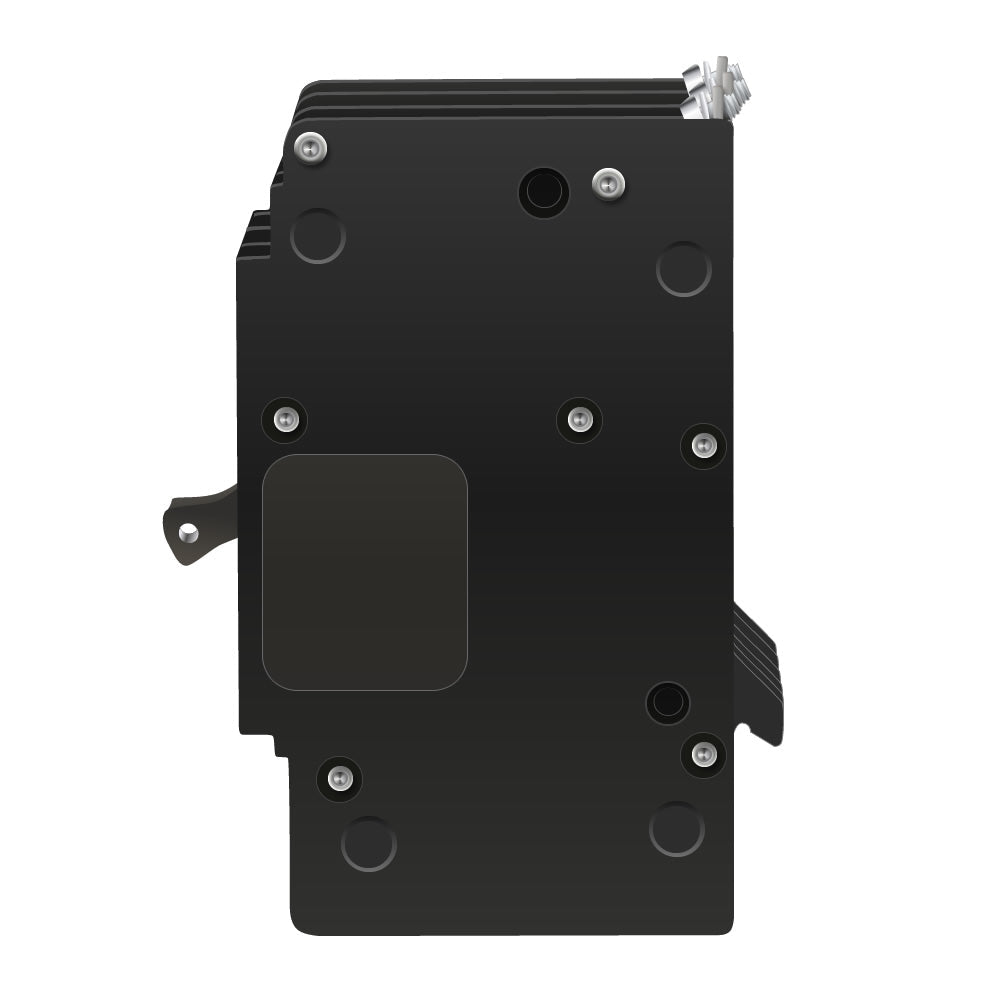

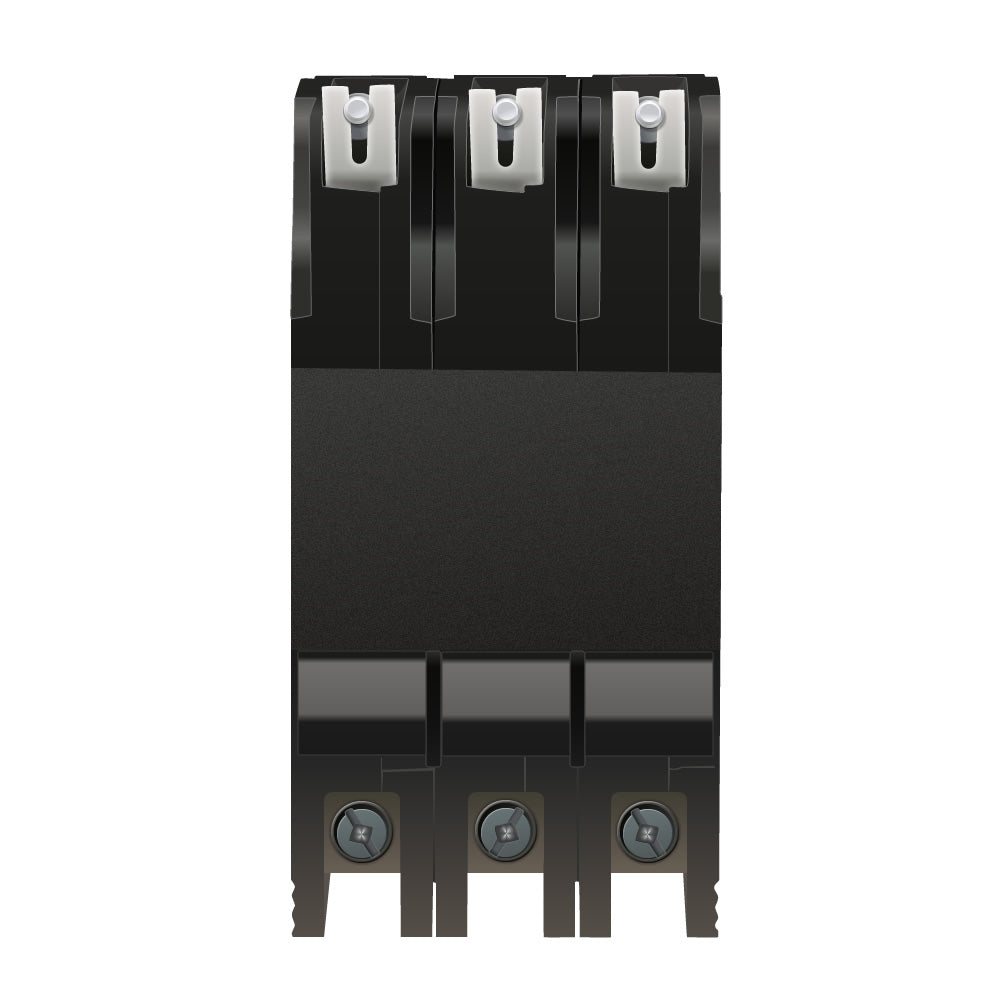

Square D EJB36020 Circuit Breaker | 600V 20A 3P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB36020 is a Molded Case Circuit Breaker from the EJB Series. It features 3 poles, 600V voltage, and a 20 amp rating with a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: EJB36020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901235712
✔ GTIN: 00785901235712
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.68
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum / AWG 14...AWG 6 copper
