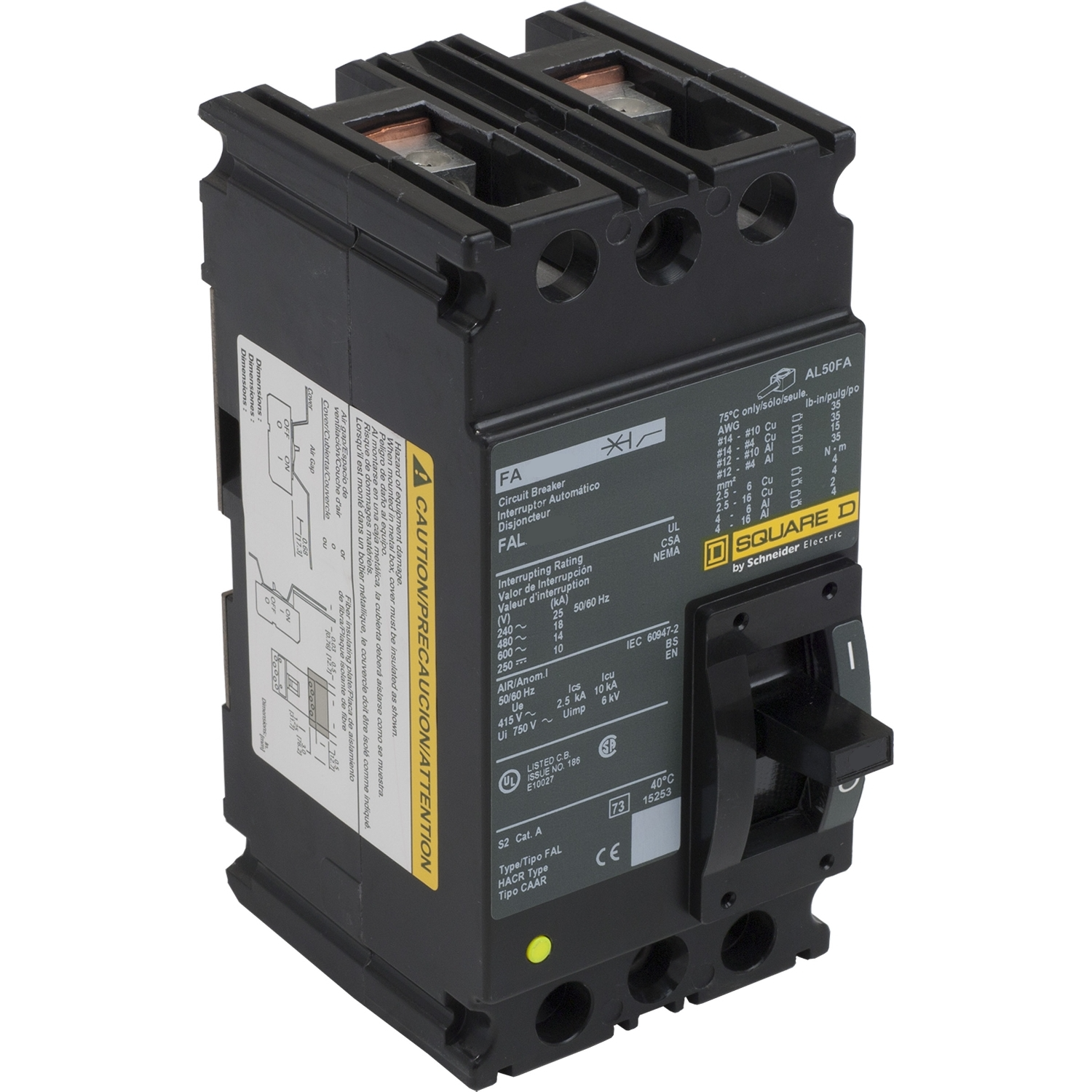

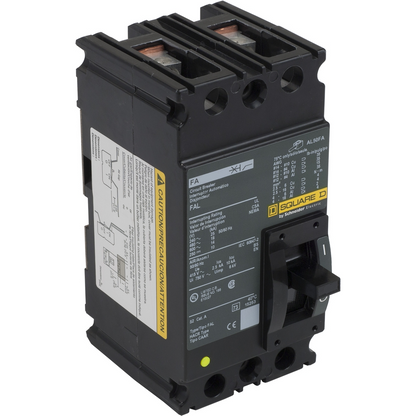

Square D FAL22015 Circuit Breaker | 240V 15A 2P 10kA@240V Feed-Thru FAL Series

Product Description:
The Square D FAL22015 is a Molded Case Circuit Breaker from the FAL Series. It features a 2-pole design with a 240V, 15A rating and a 10kA@240V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation.

Key Features:
✔ Part Number: FAL22015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901254607
✔ GTIN: 00785901254607
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 3 in (76.20 mm) Height 6.4 in (162.56 mm)
✔ Weight: 3
✔ Certification: UL LISTED, CSA, IEC
✔ Wire Size: 12-4 AWG (Aluminum) 14-4 AWG (Copper)
