Images are for reference only
Square D

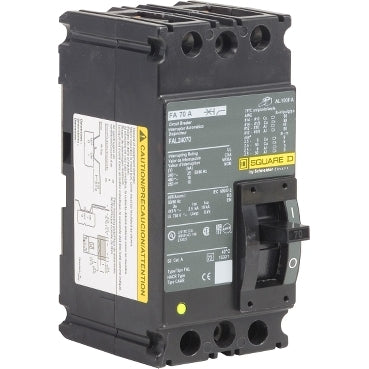

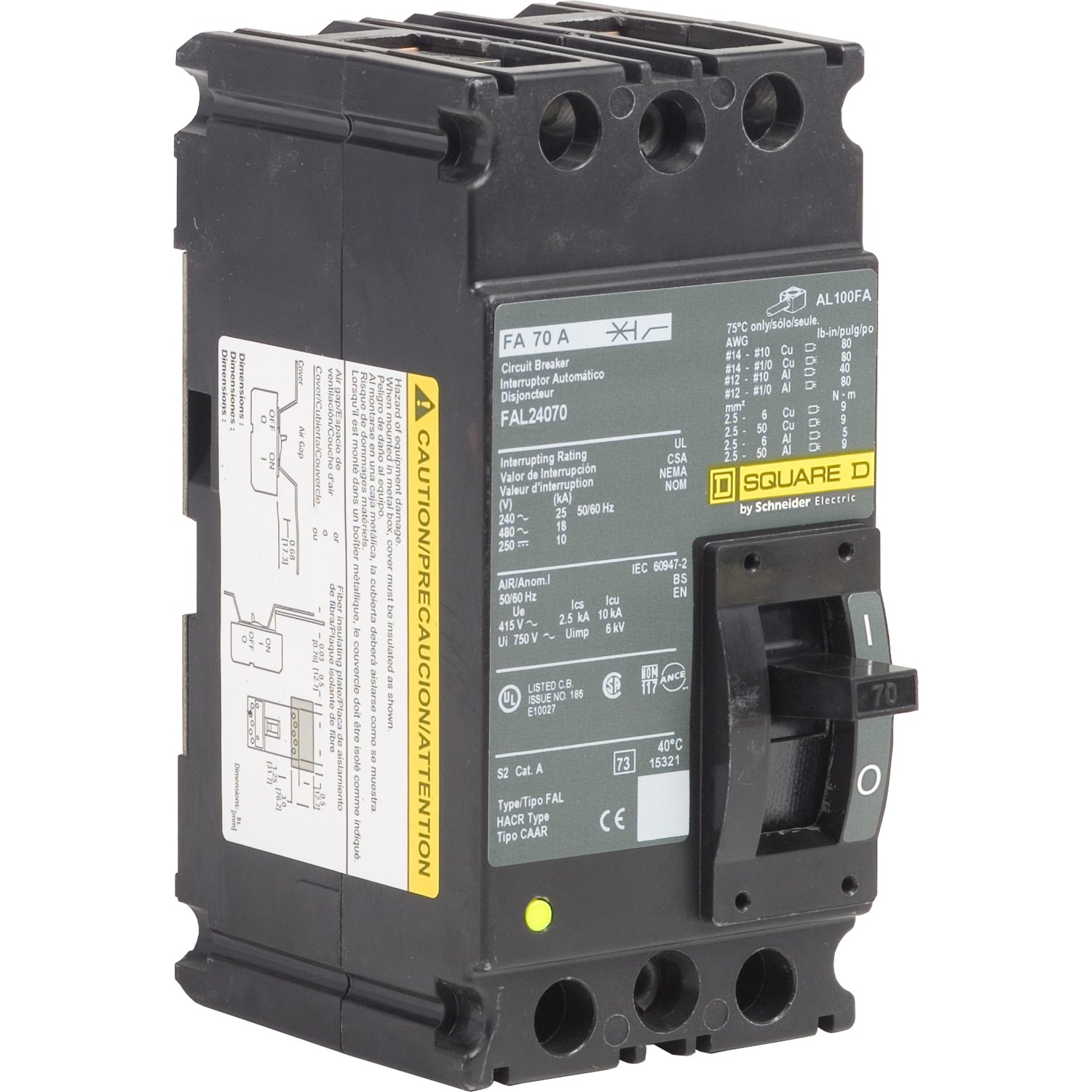

Square D FAL24070 Circuit Breaker | 480V 70A 2P 18kA@480V Feed-Thru FAL Series
Square D FAL24070 Circuit Breaker | 480V 70A 2P 18kA@480V Feed-Thru FAL Series
Price:
Sale
Sold out
Regular price
$309.24 USD
Regular price
$1,418.40 USD
Sale price
$309.24 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 5 left
Couldn't load pickup availability
Product Description:
The Square D FAL24070 is a Molded Case Circuit Breaker from the FAL Series family. It features a 2-pole design with a 480V voltage rating and 70 amp capacity, offering an AIC rating of 18kA@480V. This breaker uses Feed-Thru connections and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FAL24070
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901254942
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 3 in (76.20 mm) Height 6.4 in (162.56 mm)
✔ Weight: 3
✔ Certification: UL LISTED
The Square D FAL24070 is a Molded Case Circuit Breaker from the FAL Series family. It features a 2-pole design with a 480V voltage rating and 70 amp capacity, offering an AIC rating of 18kA@480V. This breaker uses Feed-Thru connections and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FAL24070
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901254942
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 3 in (76.20 mm) Height 6.4 in (162.56 mm)
✔ Weight: 3
✔ Certification: UL LISTED
