Square D FAL32030 Circuit Breaker | 240V 30A 3P 10kA@240V Feed-Thru FAL Series

Product Description:

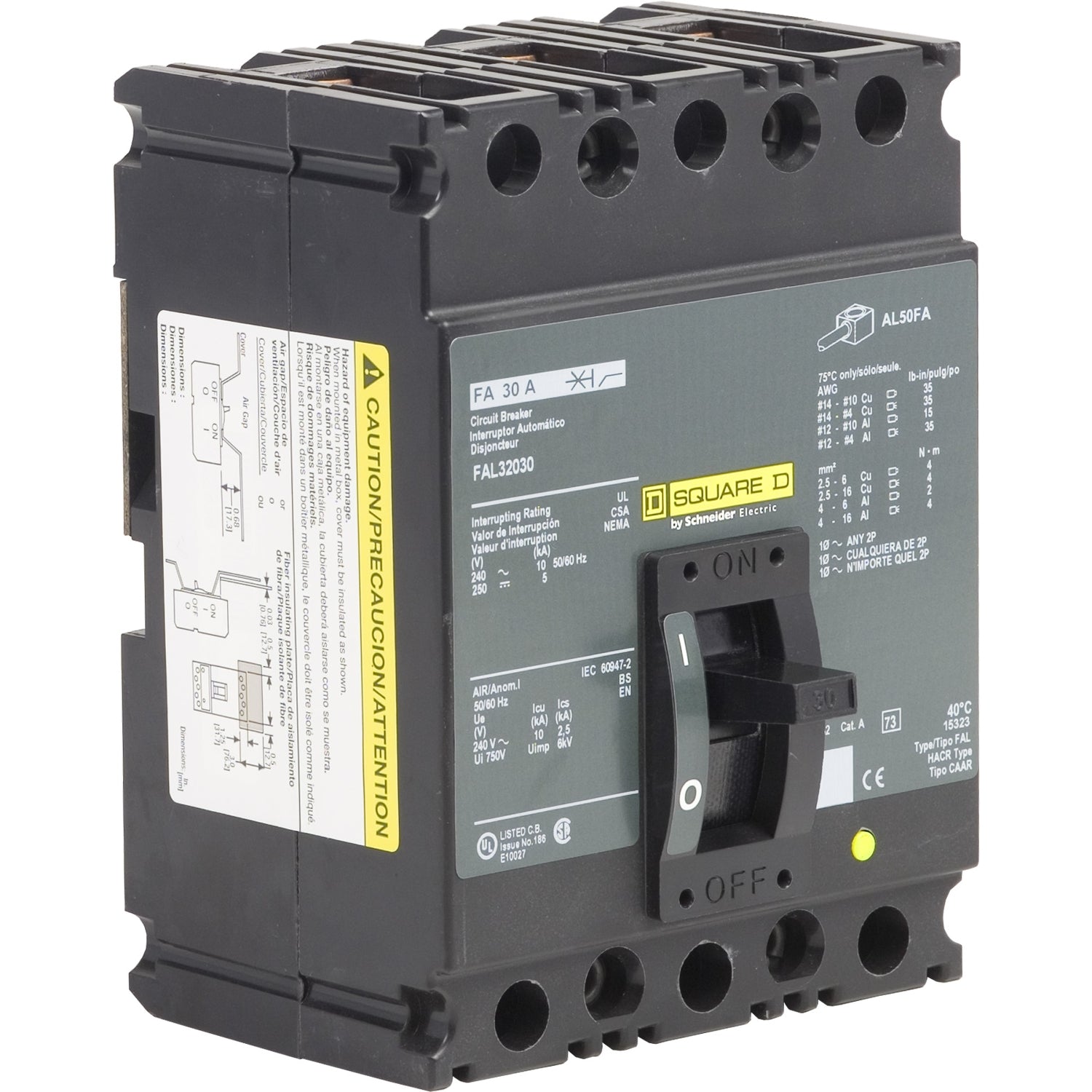

The Square D FAL32030 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 240V, 30A rating and an AIC rating of 10kA@240V. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: FAL32030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901422990
✔ GTIN: 00785901422990
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 4
✔ Certification: UL LISTED
✔ Wire Size: 12 AWG to 4 AWG, 14 AWG to 4 AWG, Aluminum/Copper
