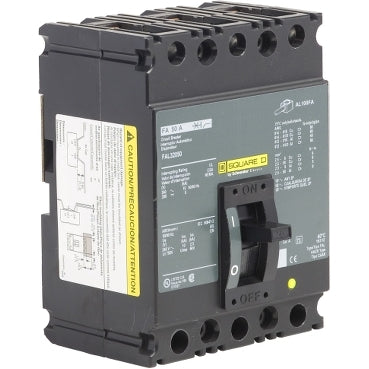

Square D FAL32050 Circuit Breaker | 240V 50A 3P 10kA@240V Feed-Thru FAL Series
Square D FAL32050 Circuit Breaker | 240V 50A 3P 10kA@240V Feed-Thru FAL Series
Price:
Sale
Sold out
Regular price
$85.77 USD
Regular price
$891.00 USD
Sale price
$85.77 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 8 left
Couldn't load pickup availability
Product Description:
The Square D FAL32050 is a 3-pole molded case circuit breaker with a 240V, 50A rating and 10kA@240V AIC rating. It features thermal magnetic protection and a feed-thru connection for reliable performance. Designed for industrial and commercial applications, it complies with UL, CSA, and IEC standards.
Key Features:
✔ Part Number: FAL32050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/FA
✔ MCM Size: Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901423058
✔ GTIN: 00785901423058
✔ Country of Origin: Mexico
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 4
✔ Standards: UL Listed, CSA Certified, CE Marked, IEC, Federal Specification W-C-375B/GEN
