Square D

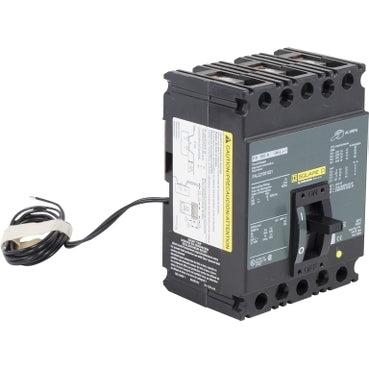

Square D FAL32100-1021 Circuit Breaker | FAL Series FAL 240V 100A
Square D FAL32100-1021 Circuit Breaker | FAL Series FAL 240V 100A
Price:
Sale
Sold out
Regular price
$1,399.99 USD
Regular price
Sale price
$1,399.99 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D FAL32100-1021 is a Molded Case Circuit Breaker from the FAL Series. It features a 3-pole design with a 240V, 100A rating and a 10kA@240V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It is CSA-UL listed for safety compliance.
Key Features:
✔ Part Number: FAL32100-1021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: F Frame
✔ Certification: CSA-UL LISTED
✔ UPC: 785901789208
✔ GTIN: 00785901789208
✔ Dimensions: 4.13" D x 4.5" W x 6.4" H (104.90mm x 114.30mm x 162.56mm)
✔ Weight: 5.23 lb
The Square D FAL32100-1021 is a Molded Case Circuit Breaker from the FAL Series. It features a 3-pole design with a 240V, 100A rating and a 10kA@240V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It is CSA-UL listed for safety compliance.
Key Features:
✔ Part Number: FAL32100-1021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: F Frame
✔ Certification: CSA-UL LISTED
✔ UPC: 785901789208
✔ GTIN: 00785901789208
✔ Dimensions: 4.13" D x 4.5" W x 6.4" H (104.90mm x 114.30mm x 162.56mm)
✔ Weight: 5.23 lb
