Product Description:

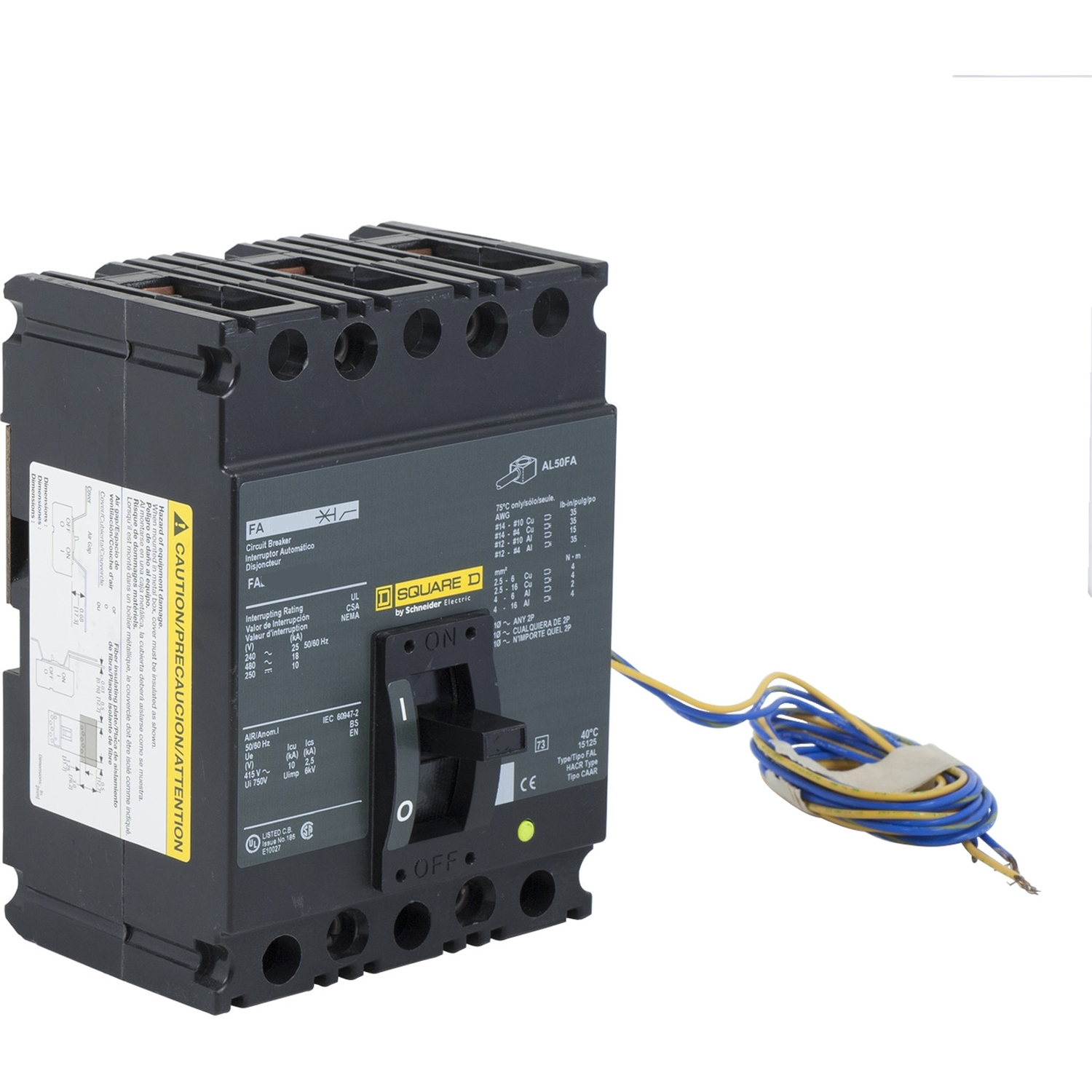

The Square D FAL340301027 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 480V, 30A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It also comes with a 24Vdc shunt trip for added functionality.
Key Features:
✔ Part Number: FAL340301027
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ GTIN: 00785901300304
✔ Dimensions: Length 10 ft (3.05 m)
✔ Weight: 5
