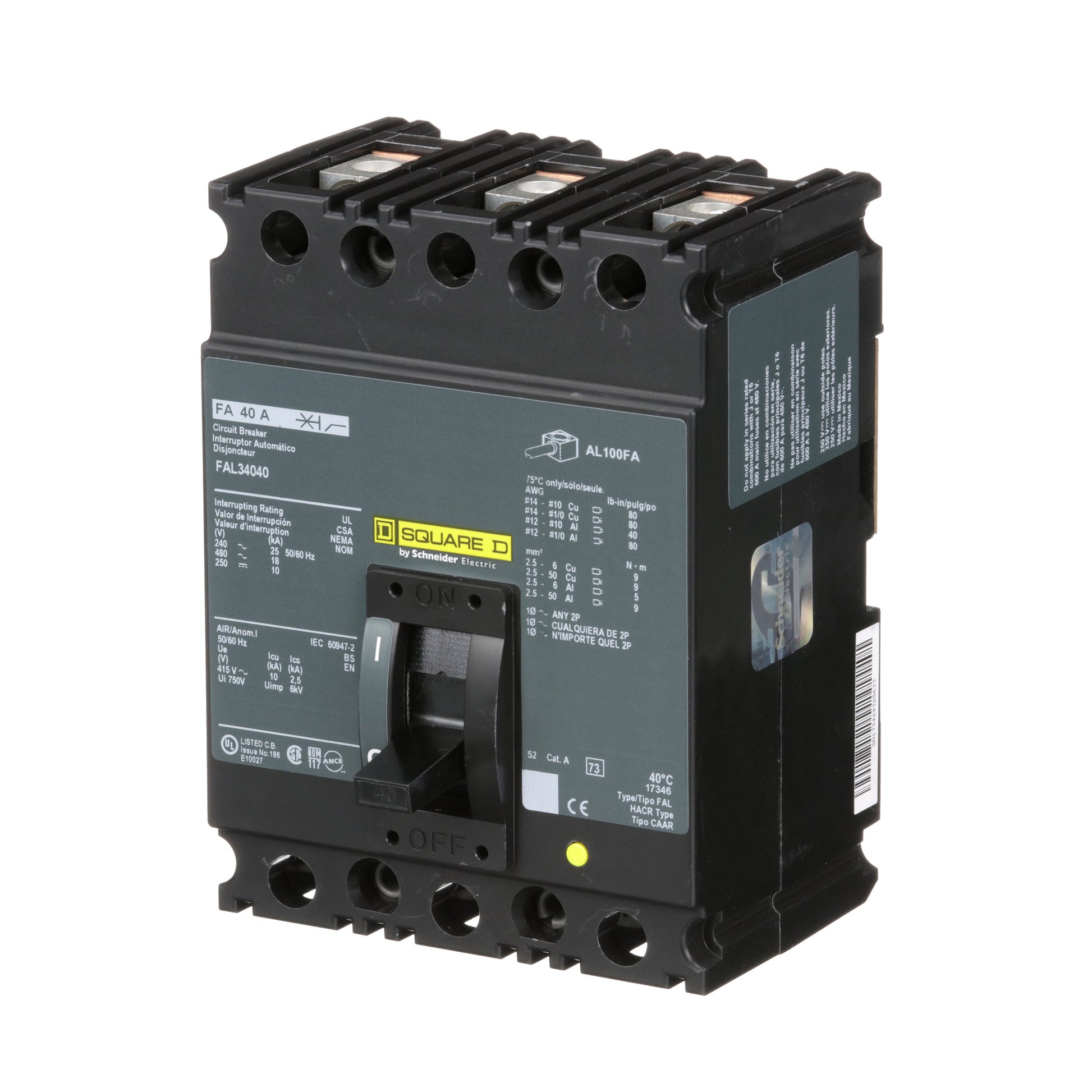

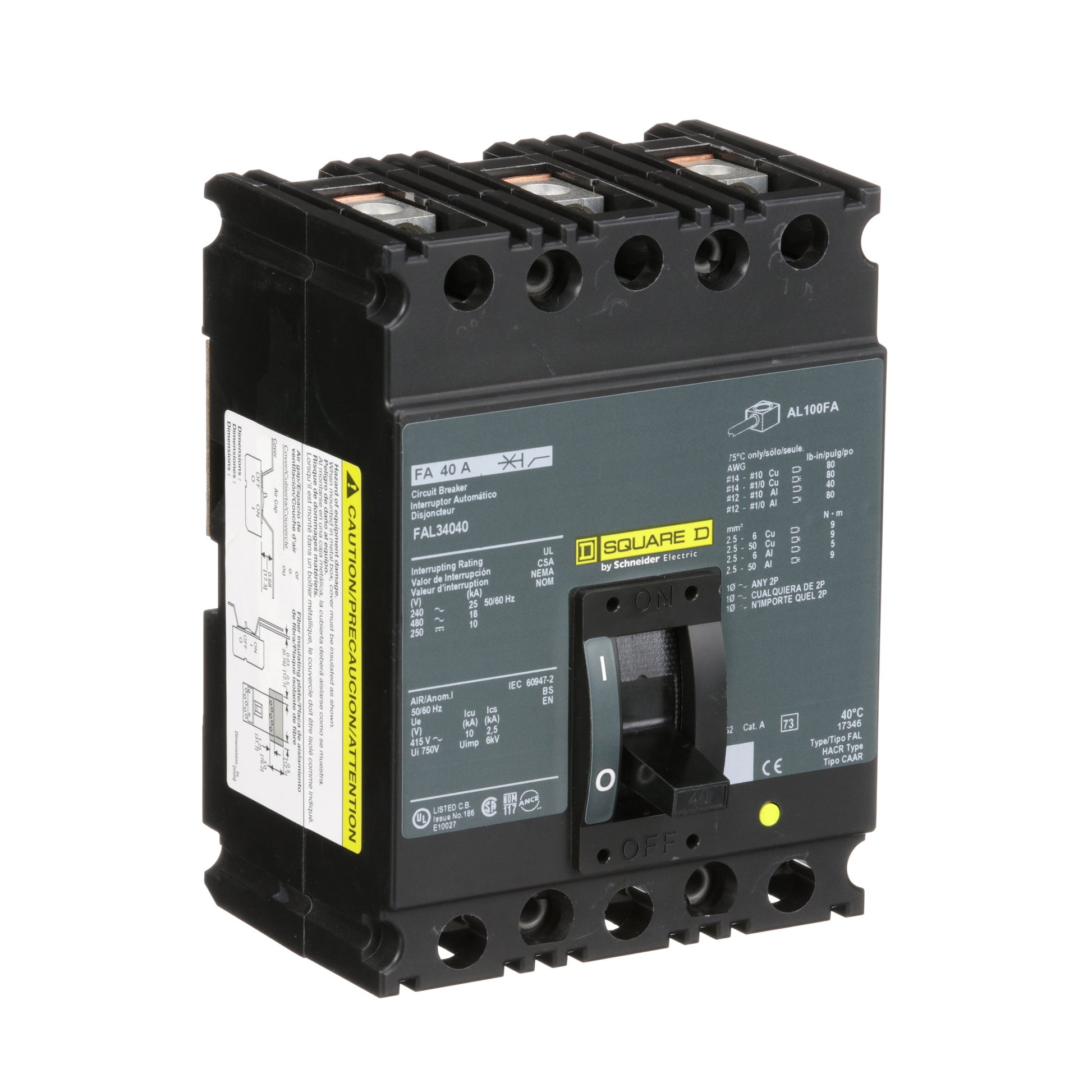

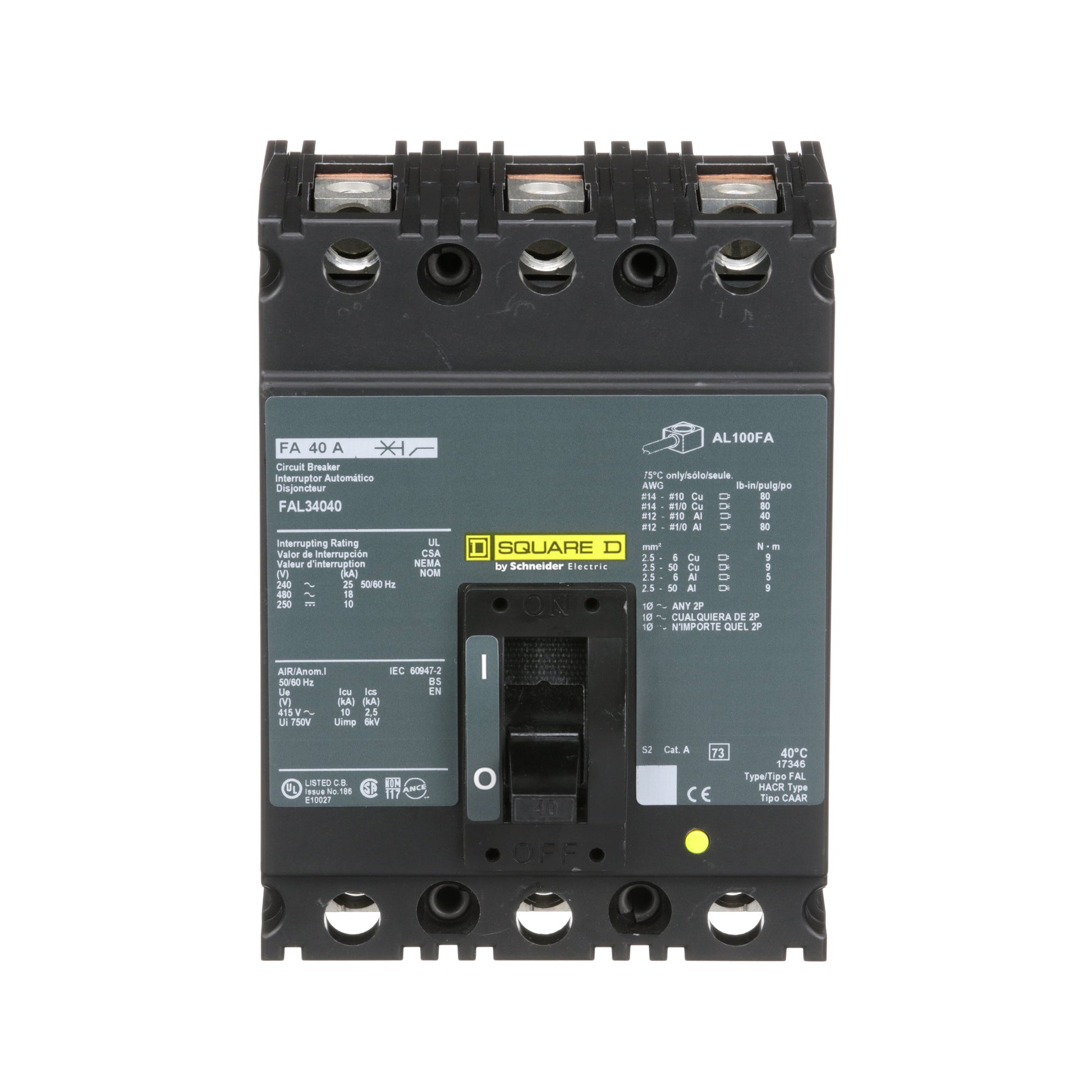

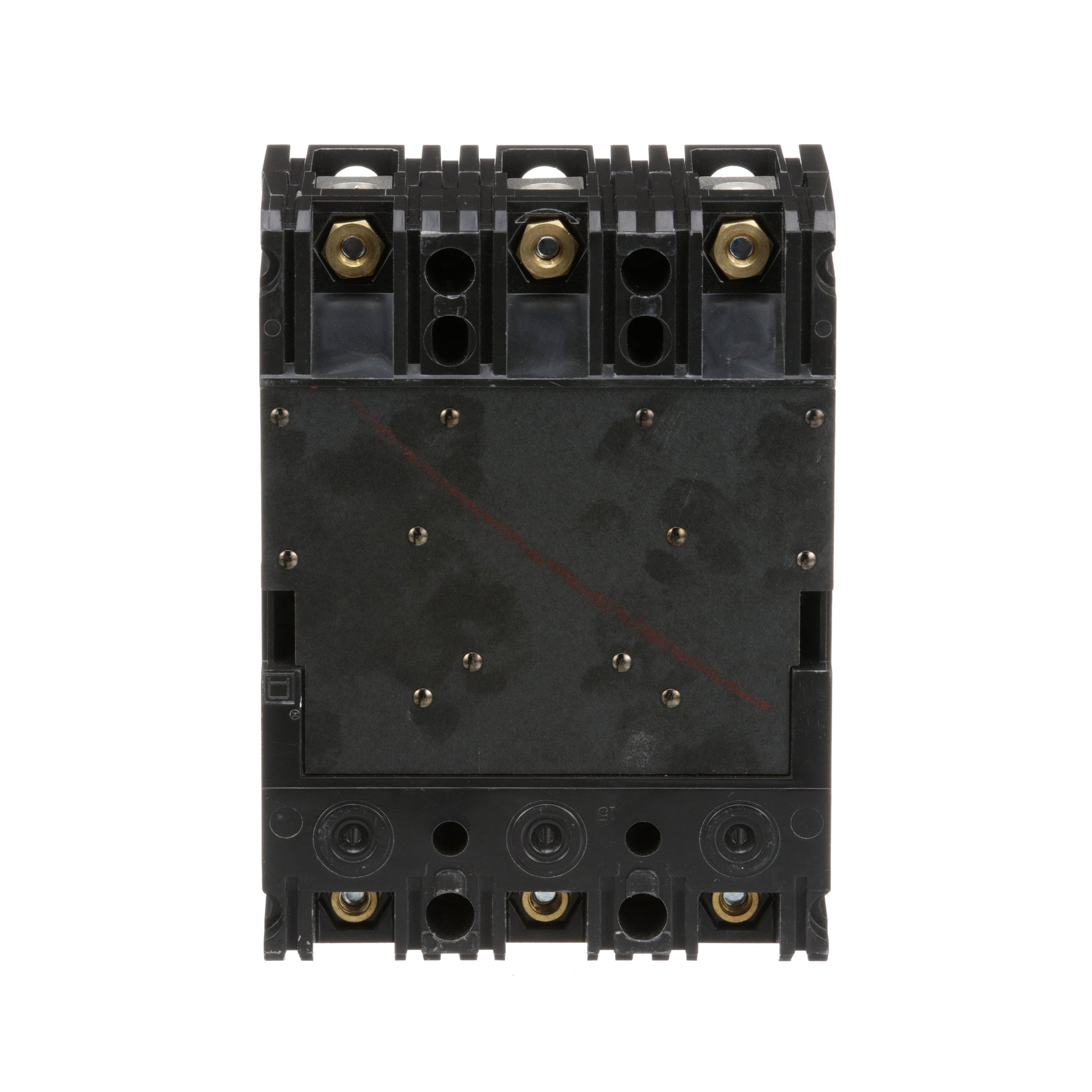

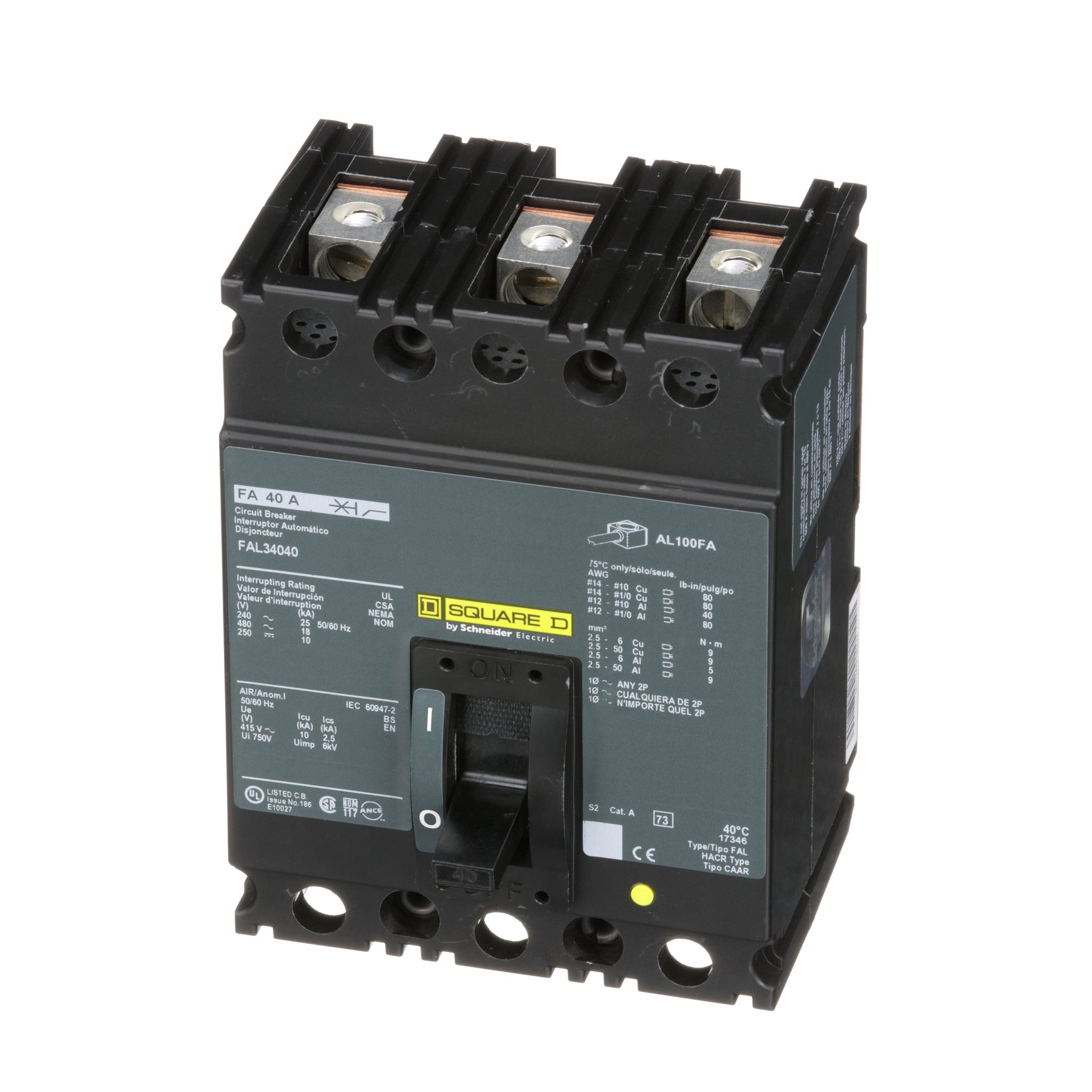

Square D FAL34040 Circuit Breaker | 480V 40A 3P 18kA@480V Feed-Thru FAL Series

Product Description:
The Square D FAL34040 is a 3-pole molded case circuit breaker designed for 480V electrical systems. It provides reliable circuit protection with a 40 amp rating and an interrupting capacity of 18kA at 480V. This thermal magnetic breaker features a feed-thru connection and is part of the FAL Series family.

Key Features:
✔ Part Number: FAL34040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901423324
✔ GTIN: 00785901423324
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: UL, CSA
