Square D FAL34045 Circuit Breaker | 480V 45A 3P 18kA@480V Feed-Thru FAL Series
Square D FAL34045 Circuit Breaker | 480V 45A 3P 18kA@480V Feed-Thru FAL Series
Price:
Sale
Sold out
Regular price
$245.84 USD
Regular price
$1,407.60 USD
Sale price
$245.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:

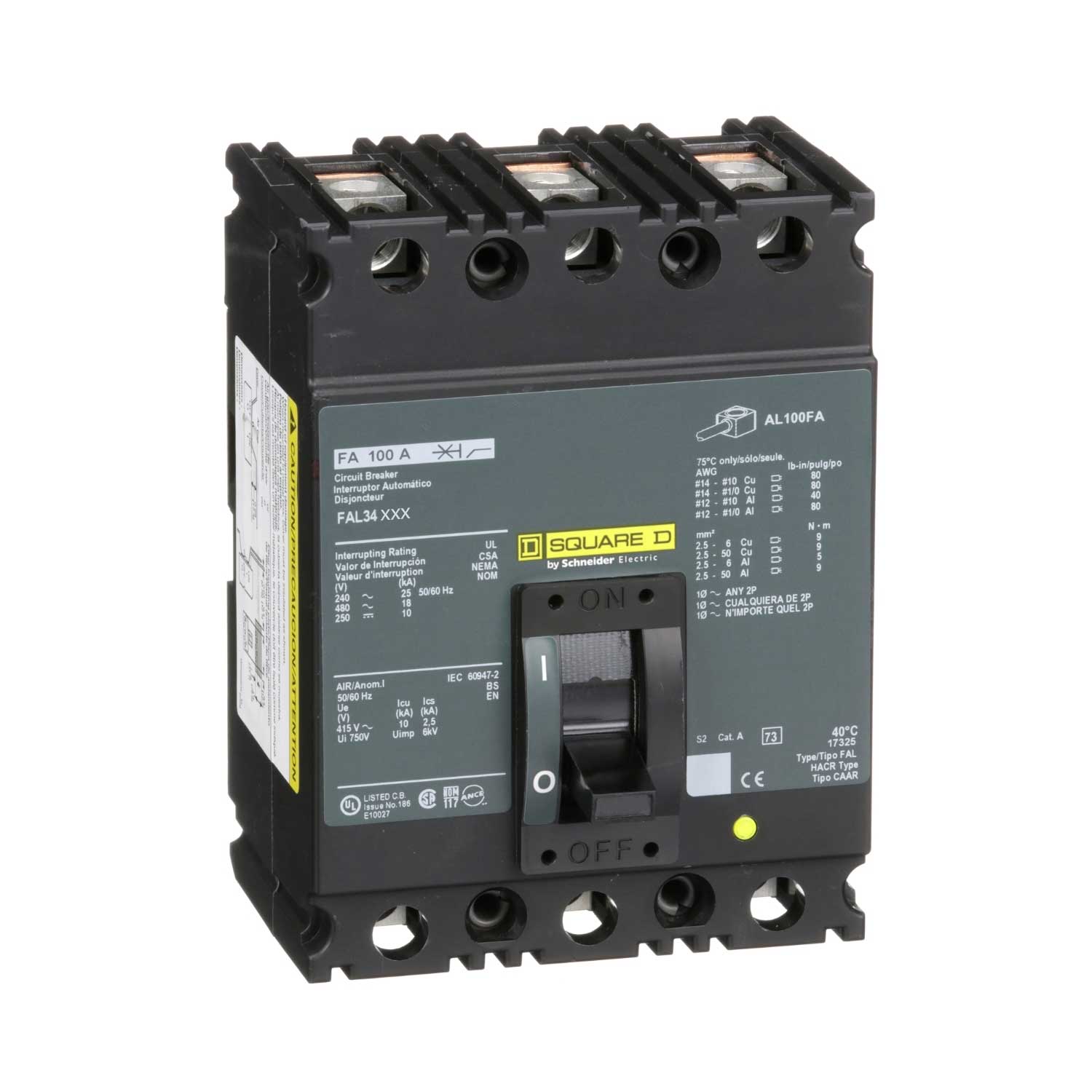

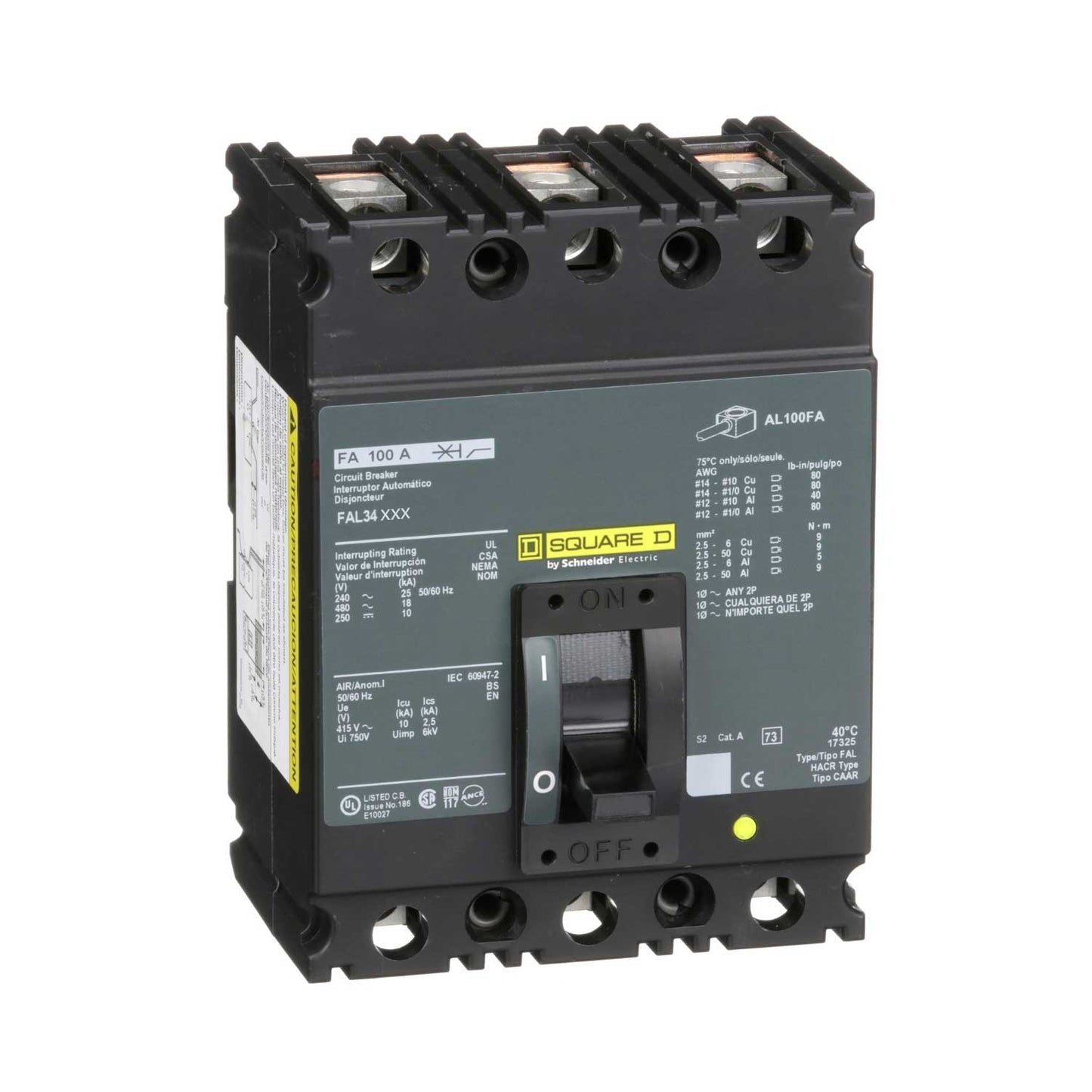

The Square D FAL34045 is a Molded Case Circuit Breaker from the FAL Series. It features a 3-pole design with a 480V voltage rating and 45 amp capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 18kA@480V. It uses a Feed-Thru connection for easy installation.
Key Features:
✔ Part Number: FAL34045
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901529705
✔ GTIN: 00785901529705
✔ Weight: 5
✔ Certification: UL LISTED
