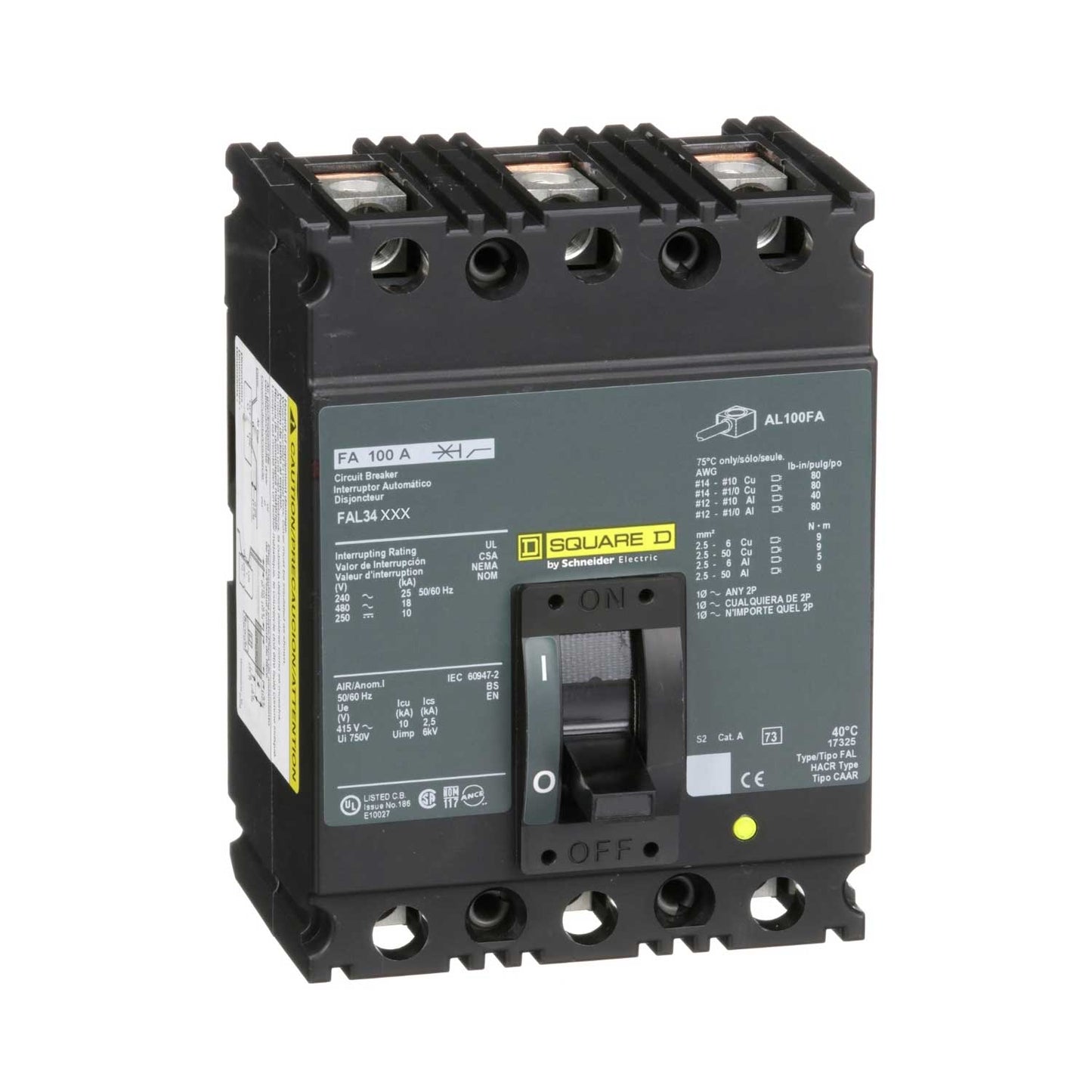

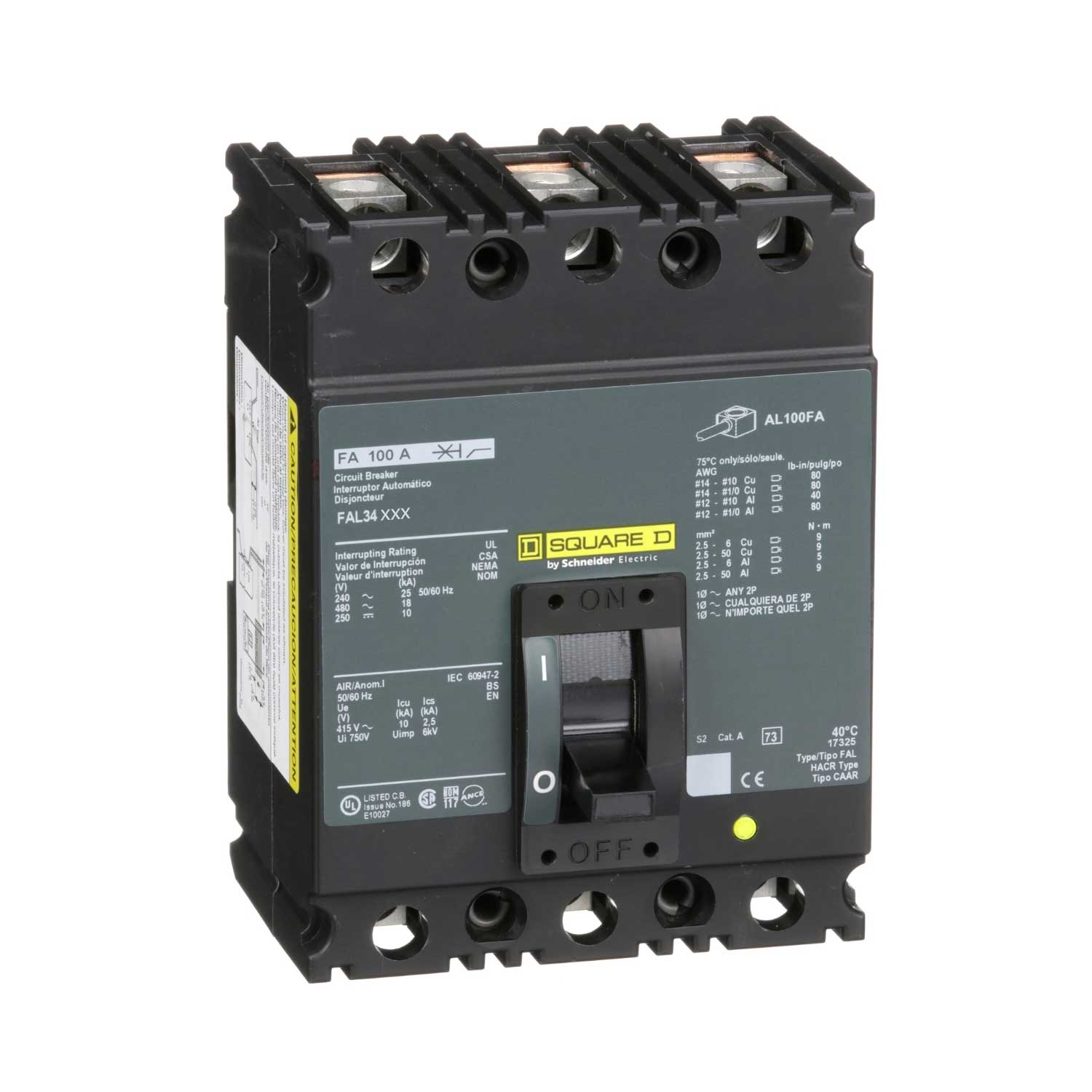

Square D FAL34090 Circuit Breaker | 480V 90A 3P 18kA@480V Feed-Thru FAL Series
Square D FAL34090 Circuit Breaker | 480V 90A 3P 18kA@480V Feed-Thru FAL Series
Price:
Sale
Sold out
Regular price
$220.46 USD
Regular price
$1,663.20 USD
Sale price
$220.46 USD
Unit price
per
Shipping calculated at checkout.
Stock:
12 in stock
Couldn't load pickup availability
Product Description:
The Square D FAL34090 is a 3-pole molded case circuit breaker designed for 480V applications. It features a 90A rating and an 18kA@480V AIC rating for reliable protection. This FAL Series breaker uses feed-thru connections and offers thermal magnetic protection for enhanced safety.
Key Features:
✔ Part Number: FAL34090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901423423
✔ GTIN: 00785901423423
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: UL, CSA
