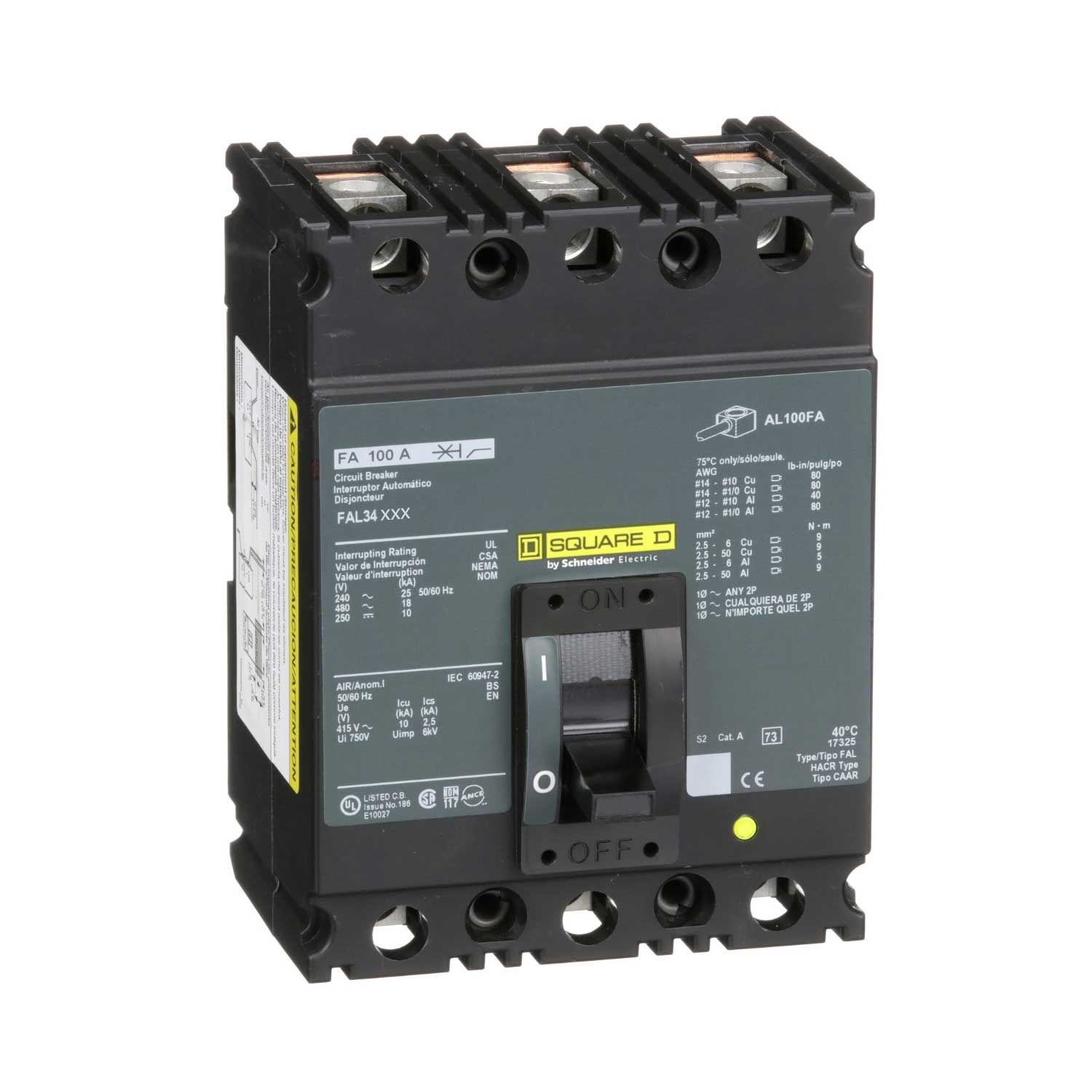

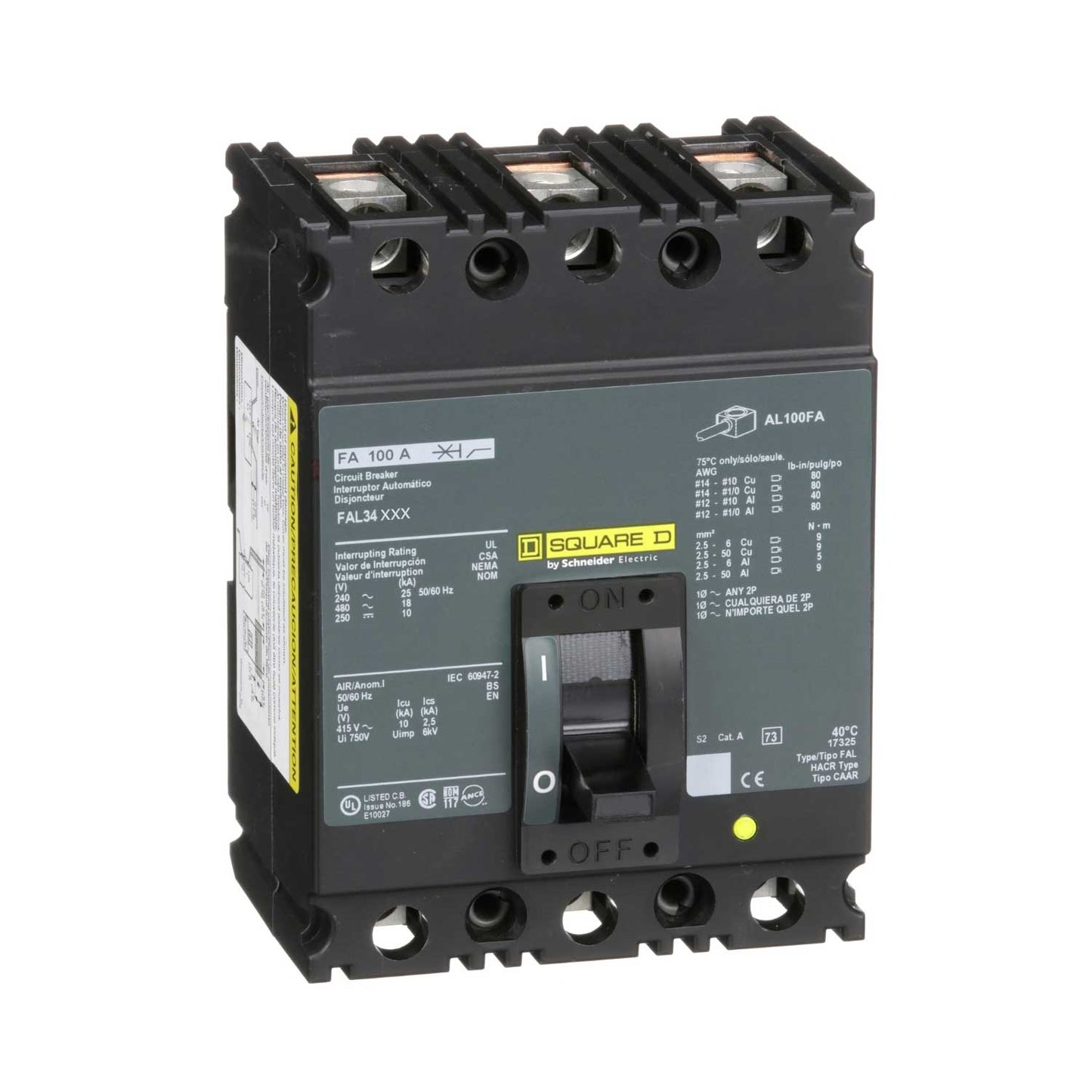

Square D FAL34100 Circuit Breaker | 480V 100A 3P 18kA@480V Feed-Thru FAL Series

Product Description:
The Square D FAL34100 is a 3-pole molded case circuit breaker with a 480V, 100A rating and 18kA@480V AIC rating. It features thermal magnetic protection and a feed-thru connection for reliable performance. Designed for industrial and commercial applications, it is part of the FAL Series family with a durable F Frame construction.

Key Features:
✔ Part Number: FAL34100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901423447
✔ GTIN: 00785901423447
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Wire Size: 12-1/0 AWG (Aluminum) 14-1/0 AWG (Copper)
