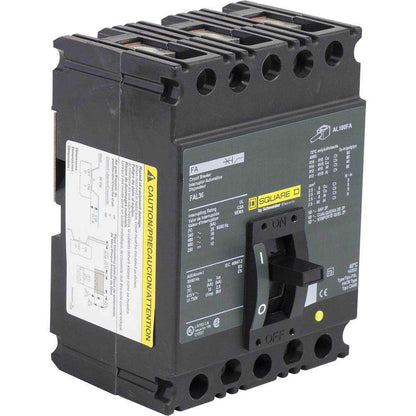

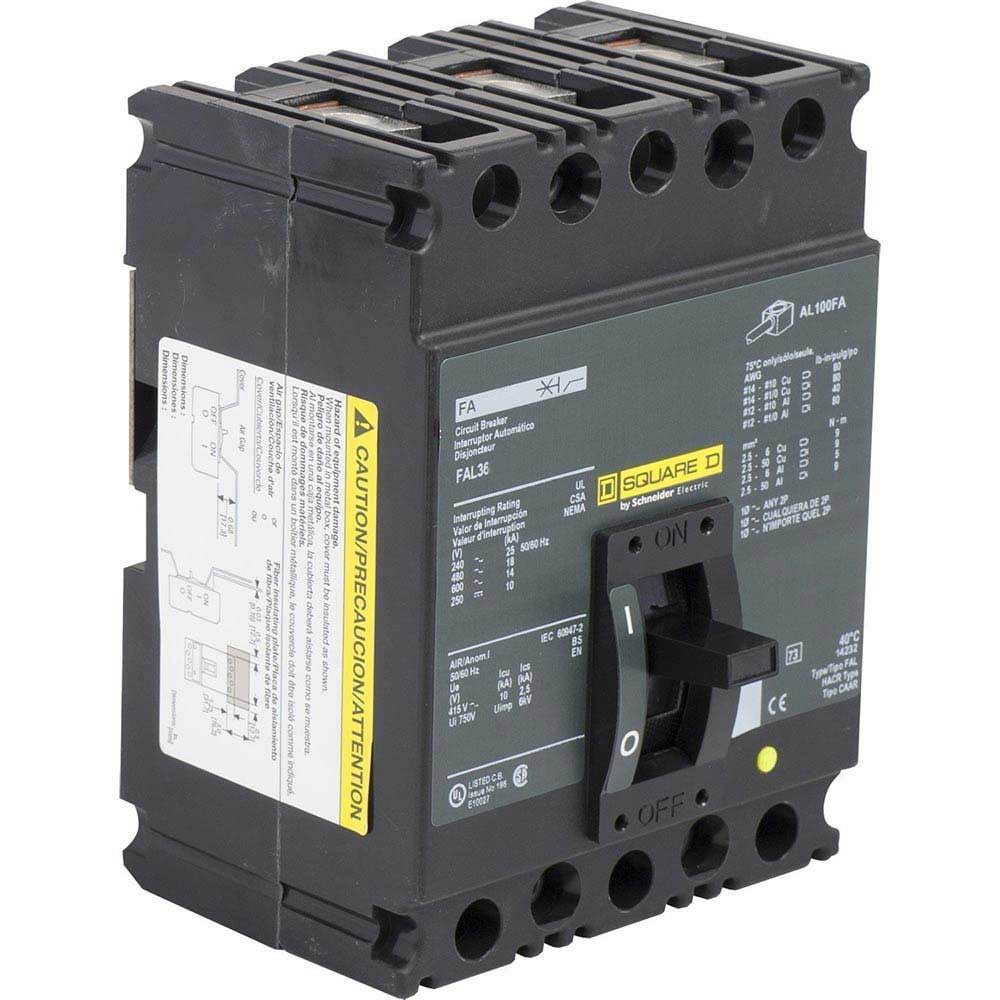

Square D FAL36025 Circuit Breaker | 600V 25A 3P 18kA@480V Feed-Thru FAL Series

Product Description:
The Square D FAL36025 is a 3-pole molded case circuit breaker designed for 600V applications. It offers a 25 amp rating and features thermal magnetic protection for reliable performance. This circuit breaker uses a feed-thru connection and is part of the FAL Series family. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: FAL36025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901529736
✔ GTIN: 00785901529736
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Certification: UL, CSA
