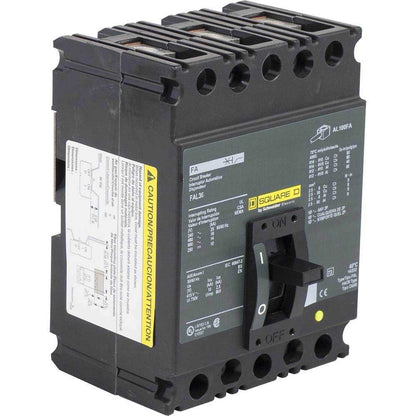

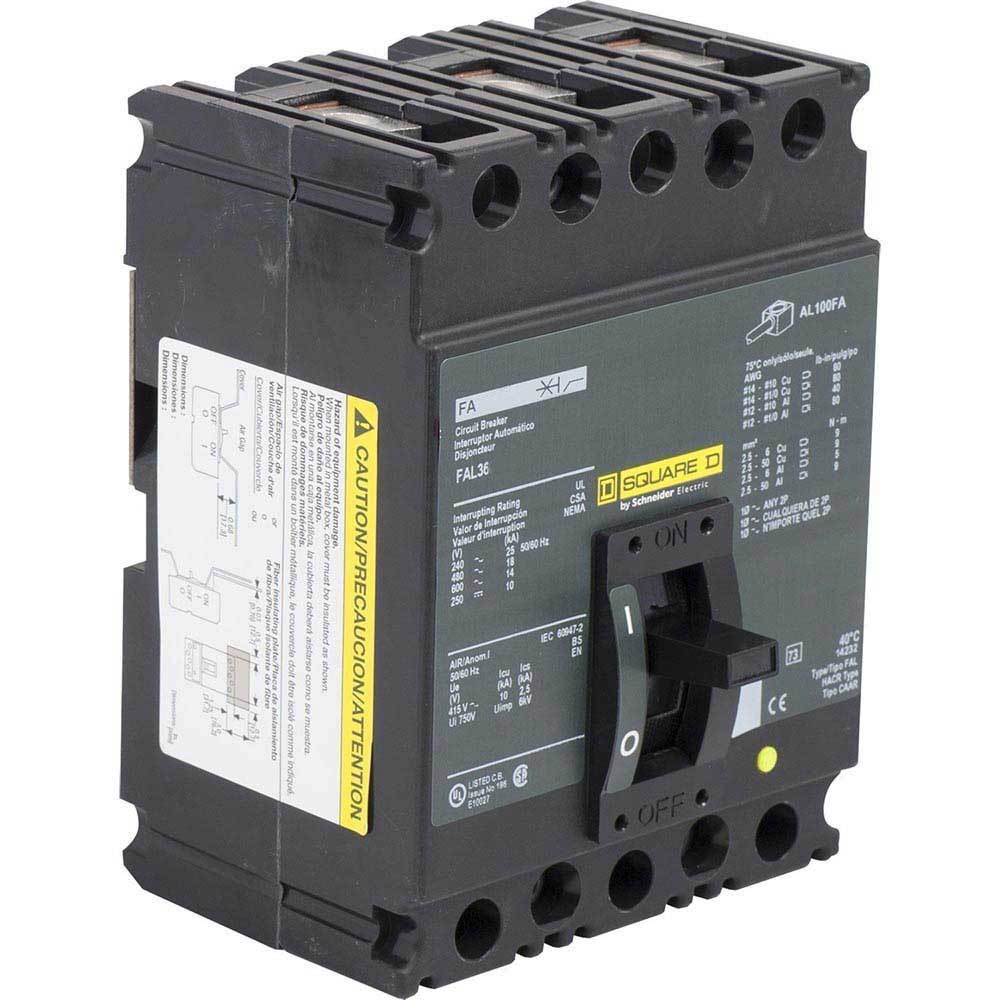

Square D FAL36030 Circuit Breaker | 600V 30A 3P 18kA@480V Feed-Thru FAL Series

Product Description:
The Square D FAL36030 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 600V, 30A rating and an 18kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: FAL36030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 078590142362
✔ GTIN: 00785901423621
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
✔ Wire Size: 12-4 AWG (Aluminum) 14-4 AWG (Copper)
