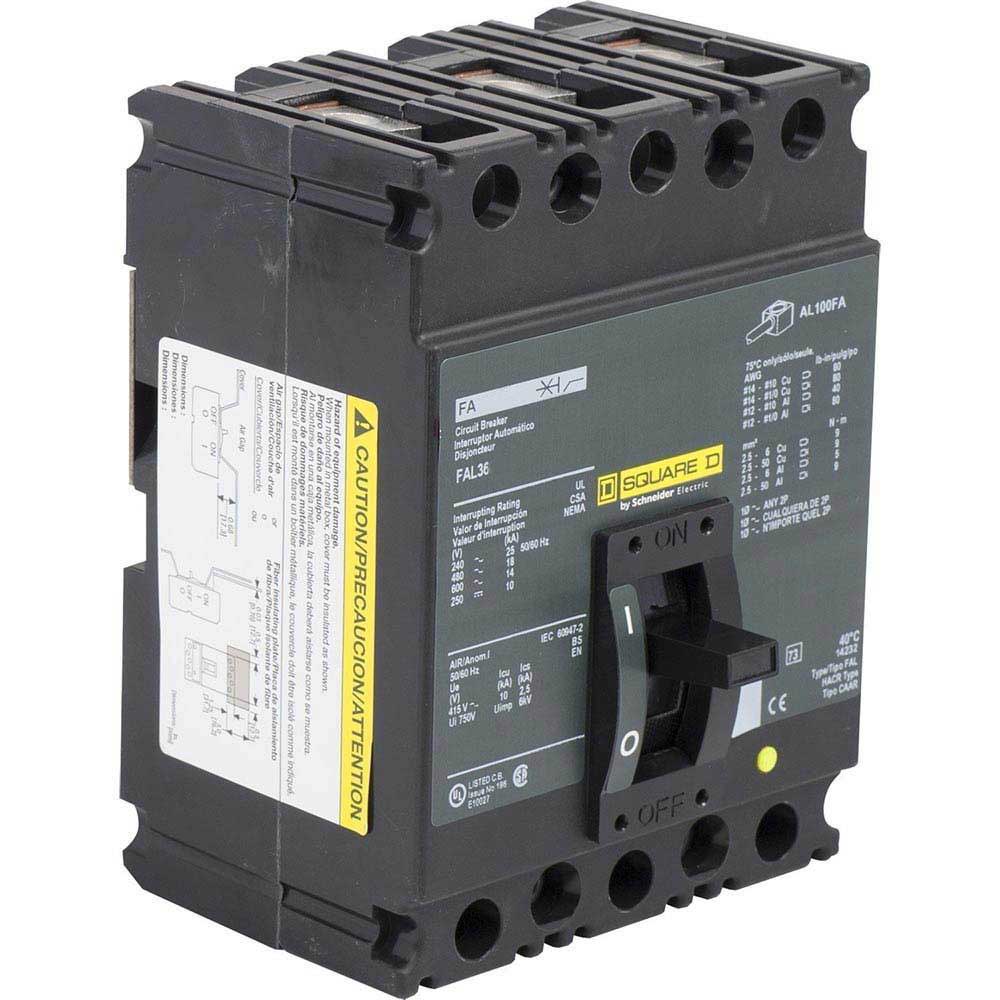

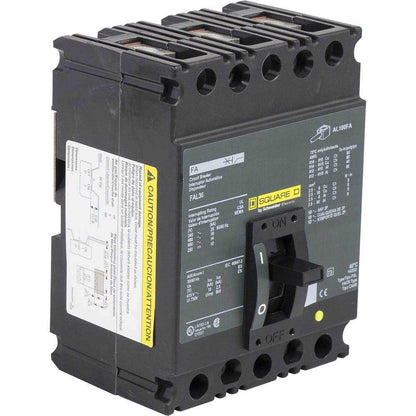

Square D FAL36040 Circuit Breaker | FAL Series FAL 600V 40A
Square D FAL36040 Circuit Breaker | FAL Series FAL 600V 40A
Price:
Sale
Sold out
Regular price
$189.37 USD
Regular price
$1,630.80 USD
Sale price
$189.37 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D FAL36040 is a Molded Case Circuit Breaker from the FAL Series. It features a 3-pole design with a 600V, 40A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It supports wire sizes of 12-1/0 AWG (Aluminum) and 14-1/0 AWG (Copper).
Key Features:
✔ Part Number: FAL36040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600V
✔ Amperage: 40A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: F Frame
✔ UPC: 078590142366
✔ GTIN: 00785901423669
✔ Dimensions: 4.13" D x 4.5" W x 6.4" H
✔ Weight: 12 lbs
✔ Wire Size: 12-
The Square D FAL36040 is a Molded Case Circuit Breaker from the FAL Series. It features a 3-pole design with a 600V, 40A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection. It supports wire sizes of 12-1/0 AWG (Aluminum) and 14-1/0 AWG (Copper).
Key Features:
✔ Part Number: FAL36040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600V
✔ Amperage: 40A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: F Frame
✔ UPC: 078590142366
✔ GTIN: 00785901423669
✔ Dimensions: 4.13" D x 4.5" W x 6.4" H
✔ Weight: 12 lbs
✔ Wire Size: 12-
