Square D FAL360801021 Circuit Breaker | 600V 80A 3P 18kA@480V Feed-Thru FAL Series
Square D FAL360801021 Circuit Breaker | 600V 80A 3P 18kA@480V Feed-Thru FAL Series
Price:
Sale
Sold out
Regular price
$898.33 USD
Regular price
Sale price
$898.33 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

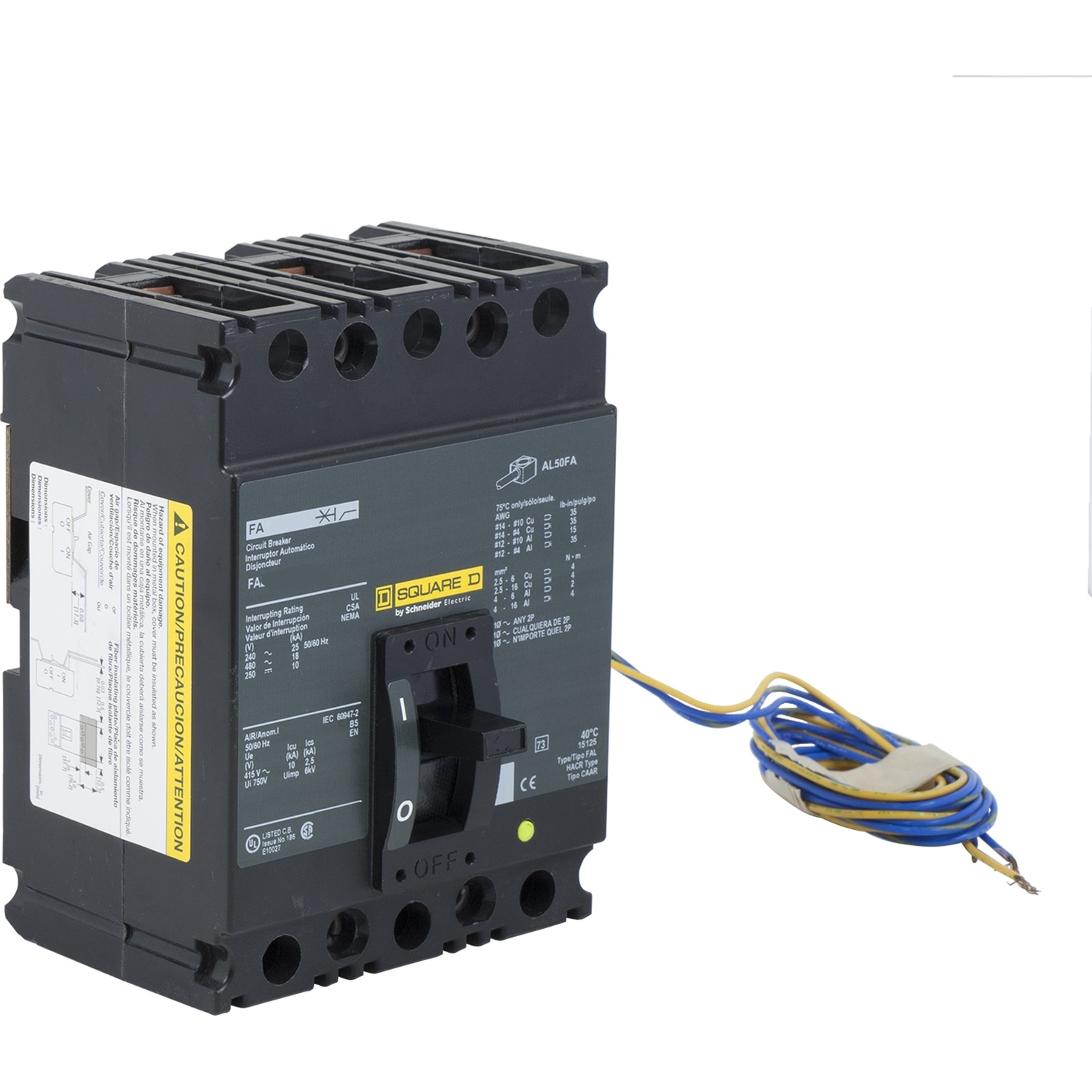

The Square D FAL360801021 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 600V, 80A rating and an AIC rating of 18kA@480V. This breaker includes thermal magnetic protection and a feed-thru connection. It comes with a factory-installed 120Vdc shunt trip for added functionality.
Key Features:
✔ Part Number: FAL360801021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ GTIN: 00785901140399
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
