Square D FAL361001380 Circuit Breaker | 600V 100A 3P 18kA@480V Feed-Thru FAL Series
Square D FAL361001380 Circuit Breaker | 600V 100A 3P 18kA@480V Feed-Thru FAL Series
Price:
Sale
Sold out
Regular price
$573.26 USD
Regular price
$3,925.80 USD
Sale price
$573.26 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:

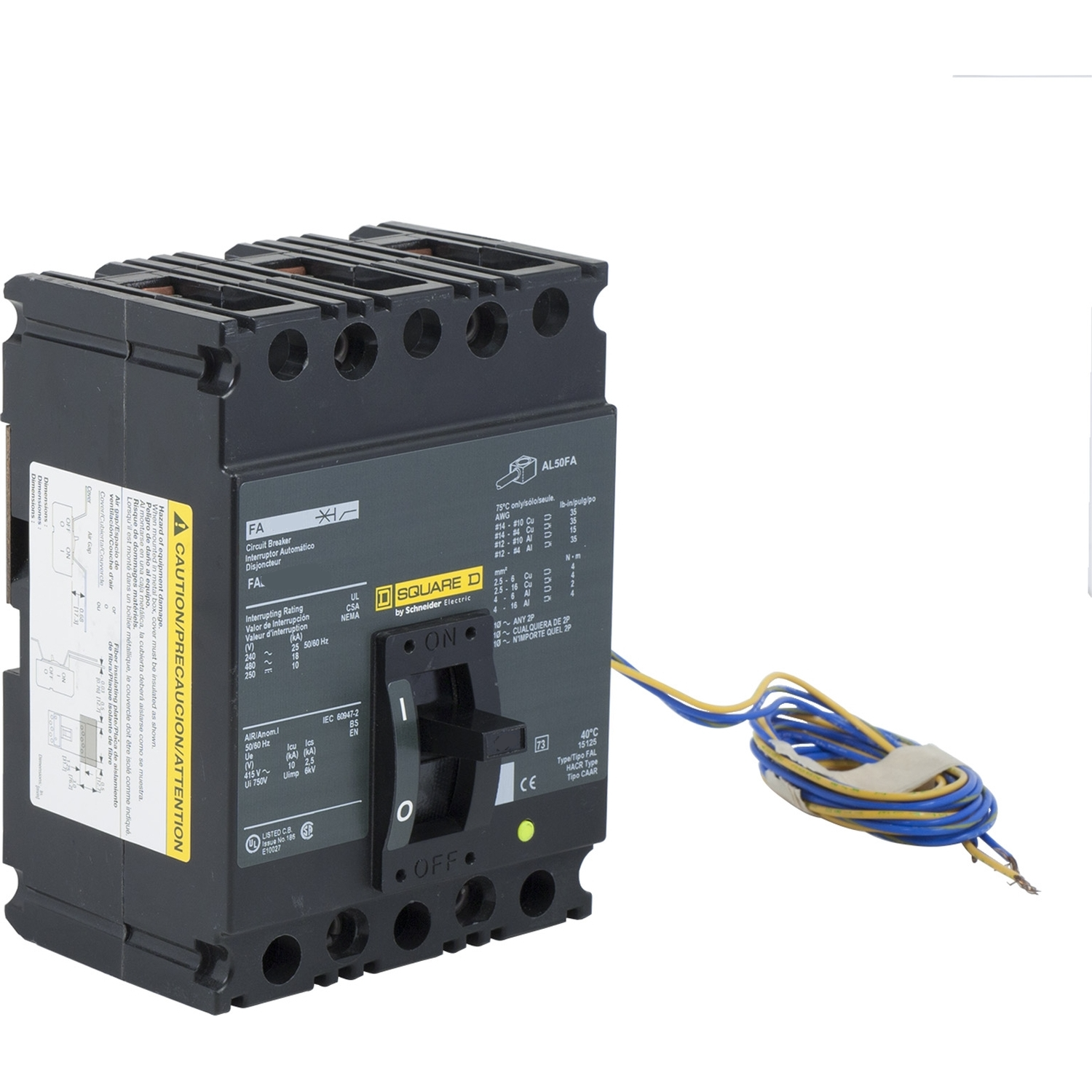

The Square D FAL361001380 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 600V, 100A rating and an AIC rating of 18kA@480V. This breaker includes thermal magnetic protection and a feed-thru connection. It also comes with a 120/240Vac shunt trip and 1A/1B aux switch.
Key Features:
✔ Part Number: FAL361001380
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ GTIN: 00785901716778
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
The Square D FAL361001380 is a Molded Case Circuit Breaker from the FAL Series family. It features a 3-pole design with a 600V, 100A rating and an AIC rating of 18kA@480V. This breaker includes thermal magnetic protection and a feed-thru connection. It also comes with a 120/240Vac shunt trip and 1A/1B aux switch.
Key Features:
✔ Part Number: FAL361001380
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAL Series
✔ Type: FAL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ GTIN: 00785901716778
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 4.5 in (114.30 mm) Height 6.4 in (162.56 mm)
✔ Weight: 5
