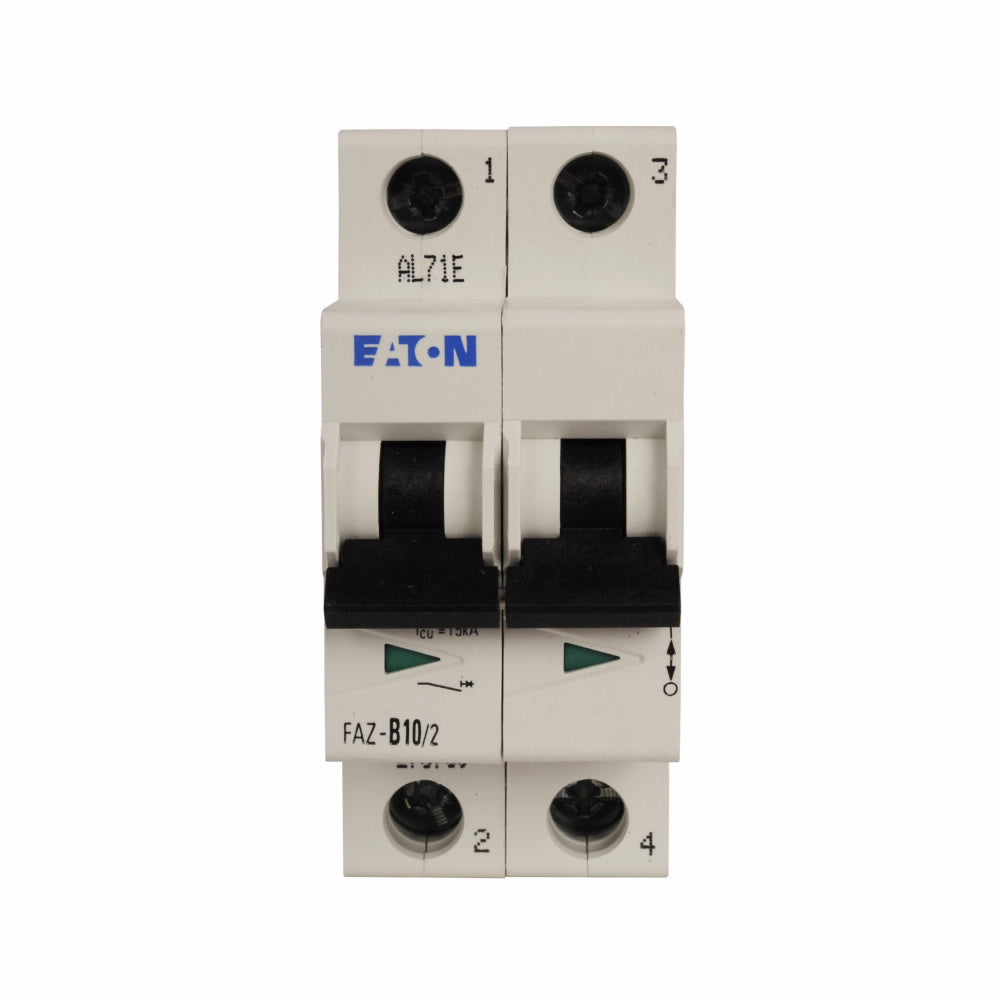

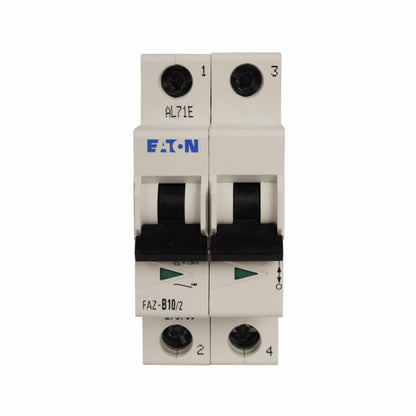

Eaton FAZ-B10/2 Circuit Breaker | 480V 10A 2P 10kA@277/480V FAZ Series

Product Description:
The Eaton FAZ-B10/2 is a Molded Case Circuit Breaker from the FAZ Series family. It features 2 poles, 480V voltage, and a 10 amp rating with a 10kA@277/480V AIC rating. This breaker uses Din Rail connection and offers Thermal Magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: FAZ-B10/2
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ
✔ Voltage: 480
✔ Amperage: 10
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@277/480V
✔ Connection: Din Rail
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 4 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 01508278730
✔ GTIN: 04015082787301
✔ Country of Origin: Romania
✔ Dimensions: 3.5 in x 1.5 in x 1.5 in
✔ Weight: 0.22
✔ Standards: CSA C22.2 No. 235, IEC 60947-2, UL 1077
✔ Certification: CSA C22.2 No. 235, IEC 60947-2, UL 1077
