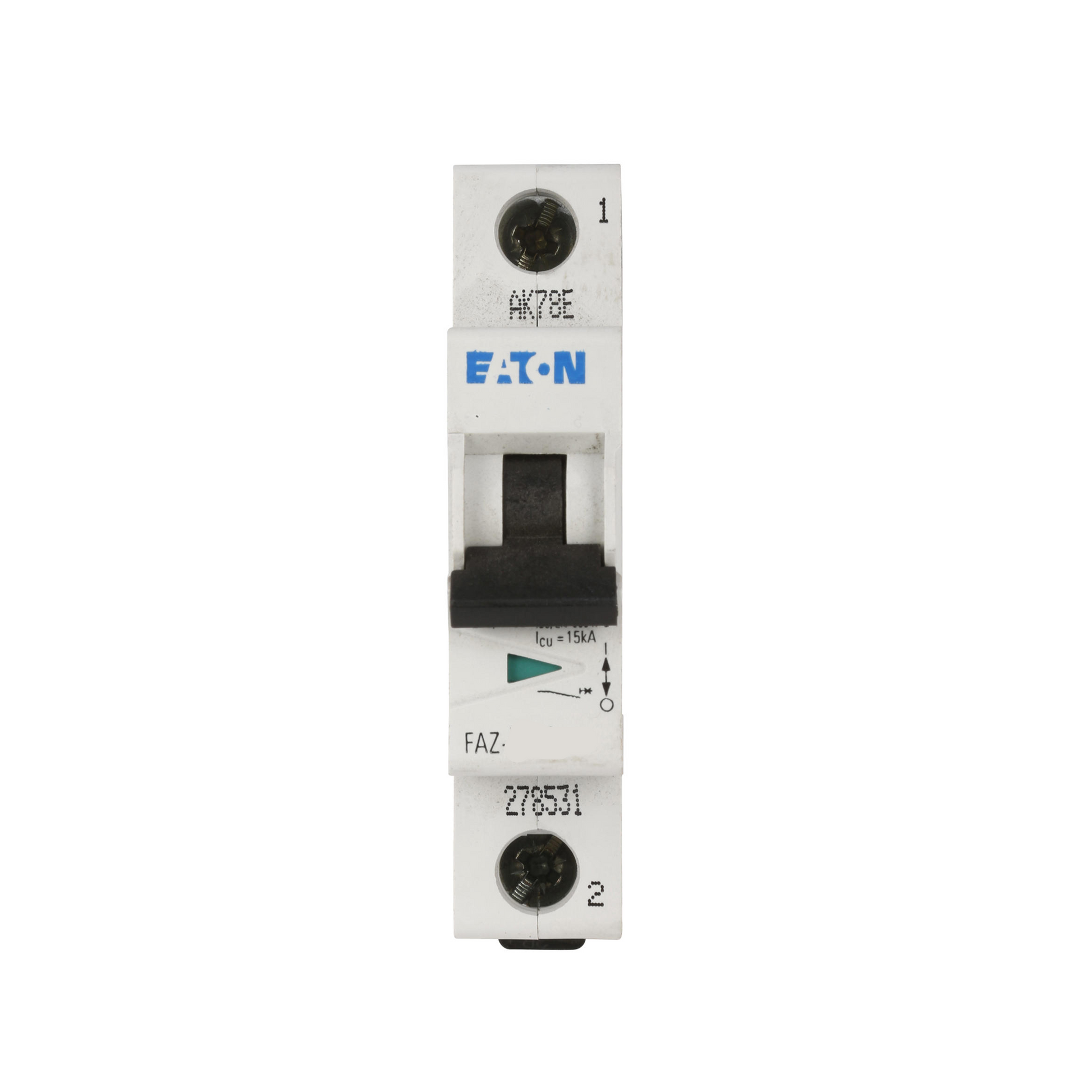

Eaton FAZ-C40/1-NA-SP Circuit Breaker | 480V 40A 1P 10kA@480/277V Din Rail FAZ Series

Product Description:
The Eaton FAZ-C40/1-NA-SP is a Molded Case Circuit Breaker from the FAZ Series. It features a 1-pole design with a 480V, 40A rating and a 10kA@480/277V AIC rating. This breaker uses Din Rail connection and offers Thermal Magnetic protection for reliable performance. It is CSA Certified and UL 489 Listed for safety compliance.

Key Features:
✔ Part Number: FAZ-C40/1-NA-SP
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@480/277V
✔ Connection: Din Rail
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 786680133046
✔ GTIN: 04015081636402
✔ Country of Origin: Spain
✔ Dimensions: 2.97 in x 0.7 in x
✔ Weight: 0.3
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
