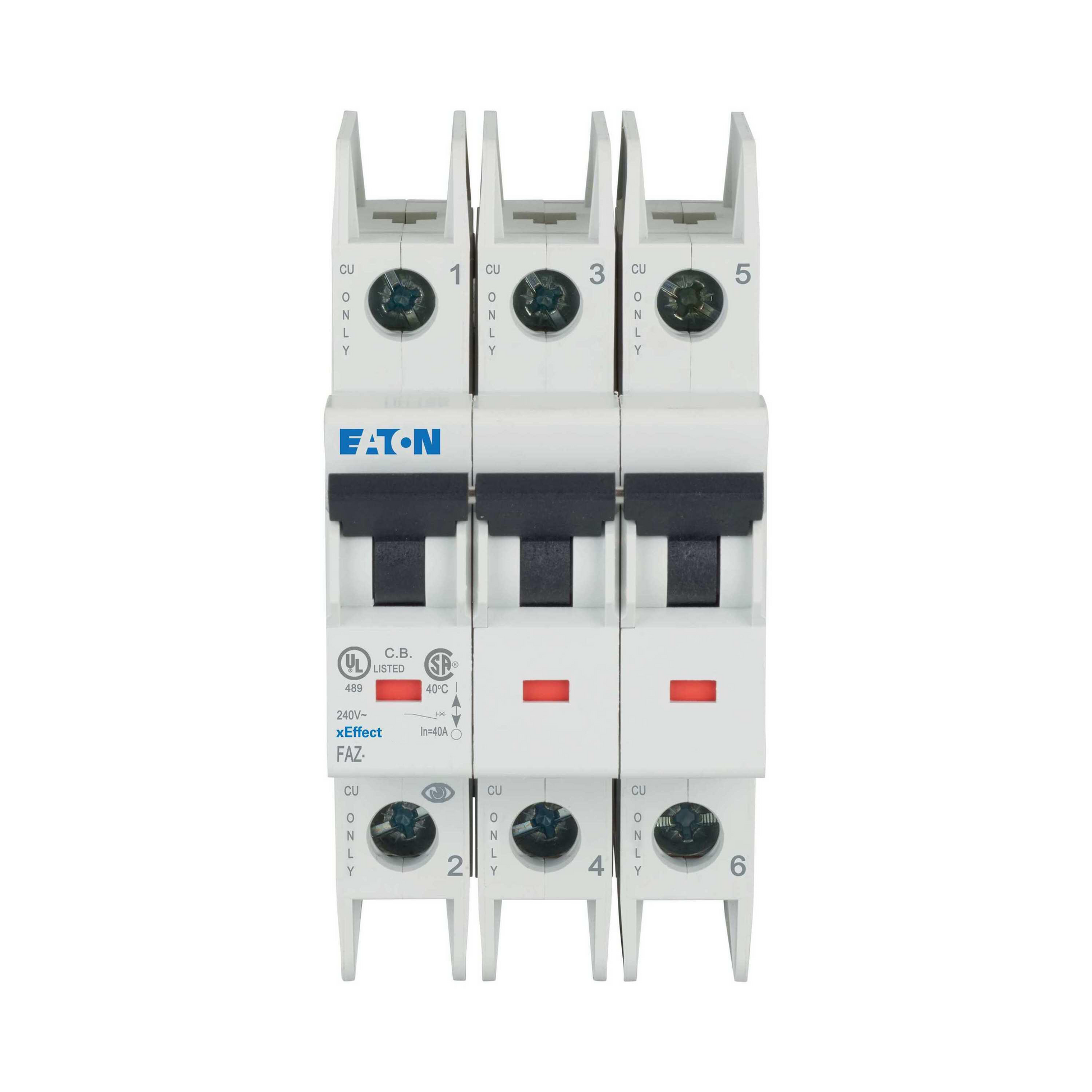

Eaton FAZ-C40/3-NA Circuit Breaker | 240V 40A 3P 10kA@240V FAZ Series

Product Description:
The Eaton FAZ-C40/3-NA is a Molded Case Circuit Breaker from the FAZ Series family. It features 3 poles, 240V voltage, and a 40A amp rating with a 10kA@240V AIC rating. This breaker uses Din Rail connection and offers Thermal Magnetic protection. It is CSA Certified and UL 489 Listed for safety compliance.

Key Features:
✔ Part Number: FAZ-C40/3-NA
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ-NA
✔ Voltage: 240
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Din Rail
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 786680133763
✔ GTIN: 04015081021321
✔ Country of Origin: Spain
✔ Dimensions: 2.97 in x 2.1 in x
✔ Weight: 0.82
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Wire Size: 18 to 6 AWG, 18 to 10 AWG
