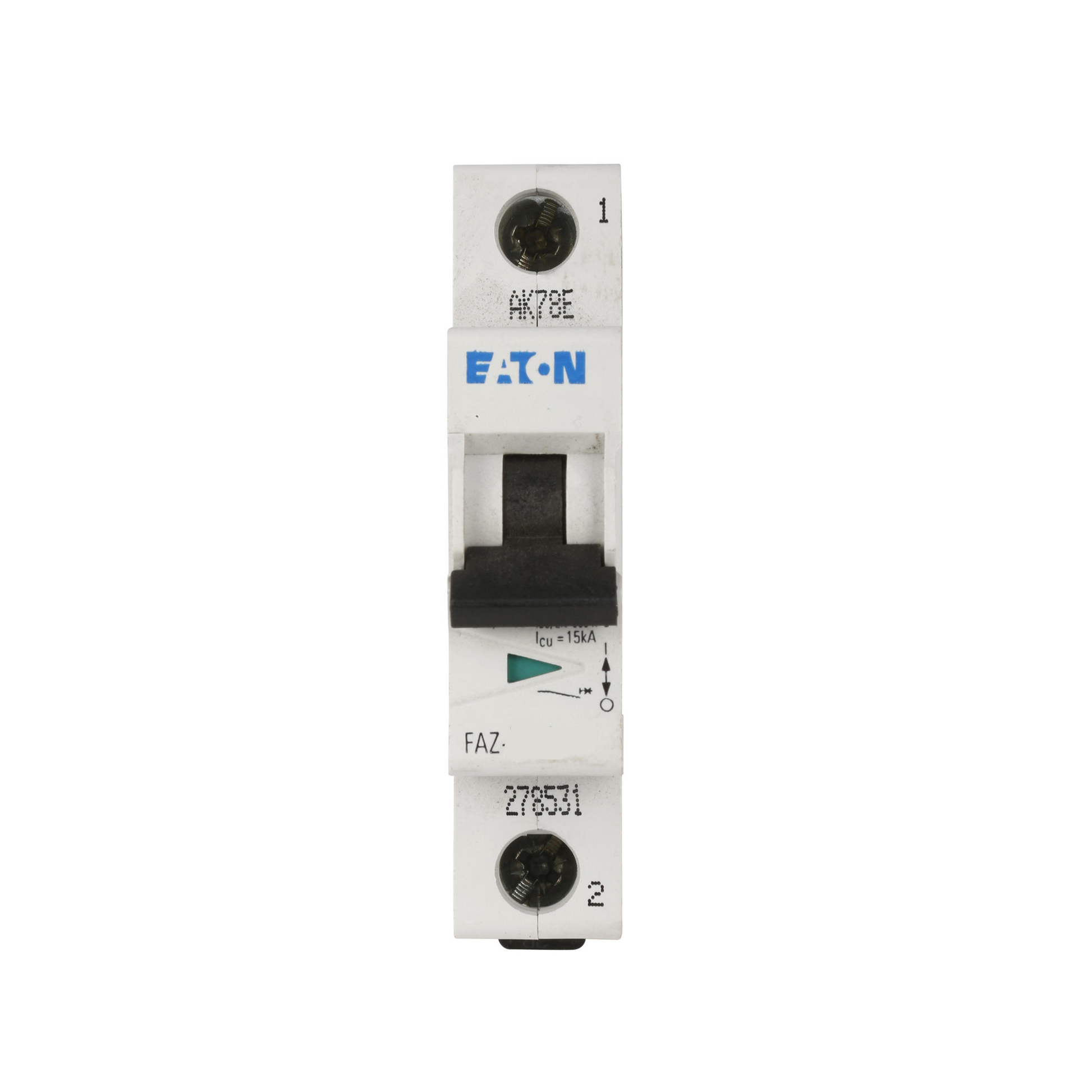

Eaton FAZ-C8/1-SP Circuit Breaker | 277V 8A 1P 10kA@277V Din Rail FAZ Series

Product Description:
The Eaton FAZ-C8/1-SP is a Molded Case Circuit Breaker from the FAZ Series. It features 1 pole, 277V voltage, and 8A amperage with a 10kA@277V AIC rating. Designed for Din Rail connection, it offers Thermal Magnetic protection for reliable performance. Complies with CSA, IEC, and UL standards.

Key Features:
✔ Part Number: FAZ-C8/1-SP
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ
✔ Voltage: 277
✔ Amperage: 8
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@277V
✔ Connection: Din Rail
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 4 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 01508163760
✔ GTIN: 04015081637607
✔ Country of Origin: Romania
✔ Dimensions: 1 in x 0.69 in x
✔ Weight: 0.27
✔ Standards: CSA C22.2 No. 235, IEC 60947-2, UL 1077
✔ Certification: CSA C22.2 No. 235, IEC 60947-2, UL 1077
