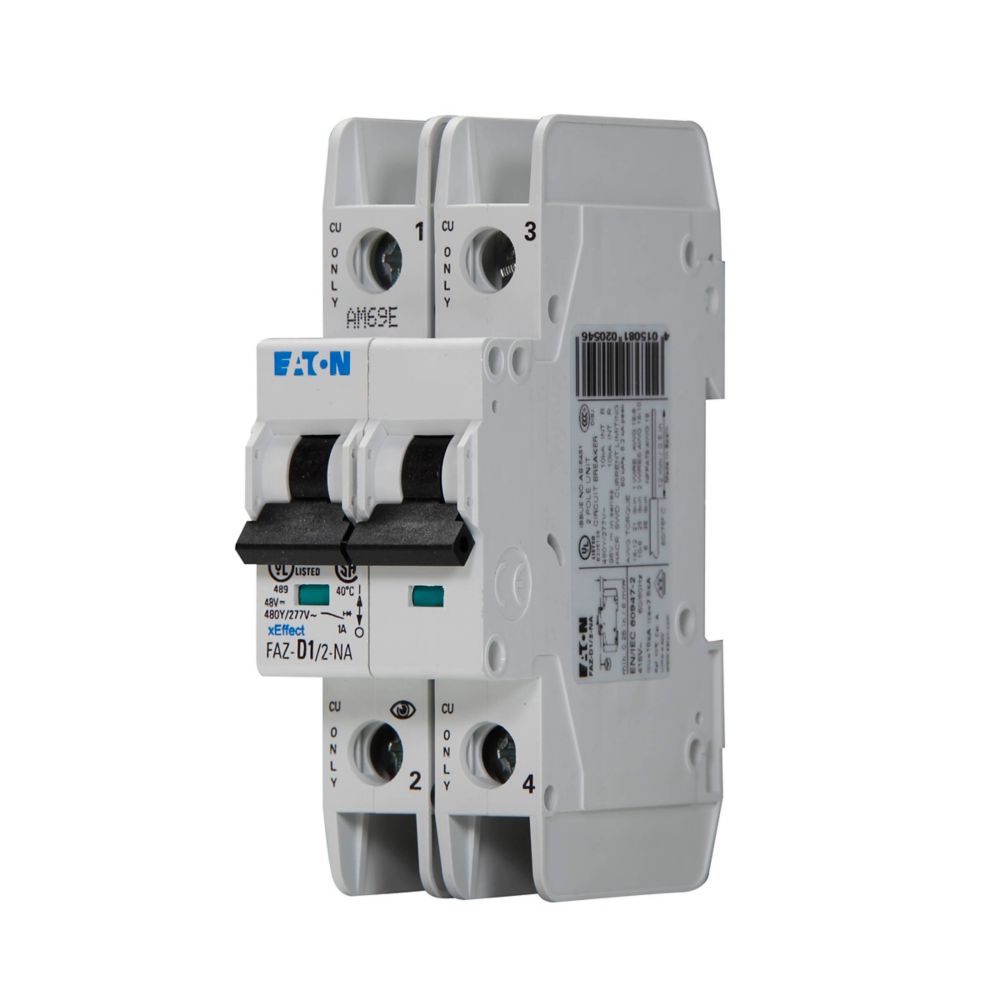

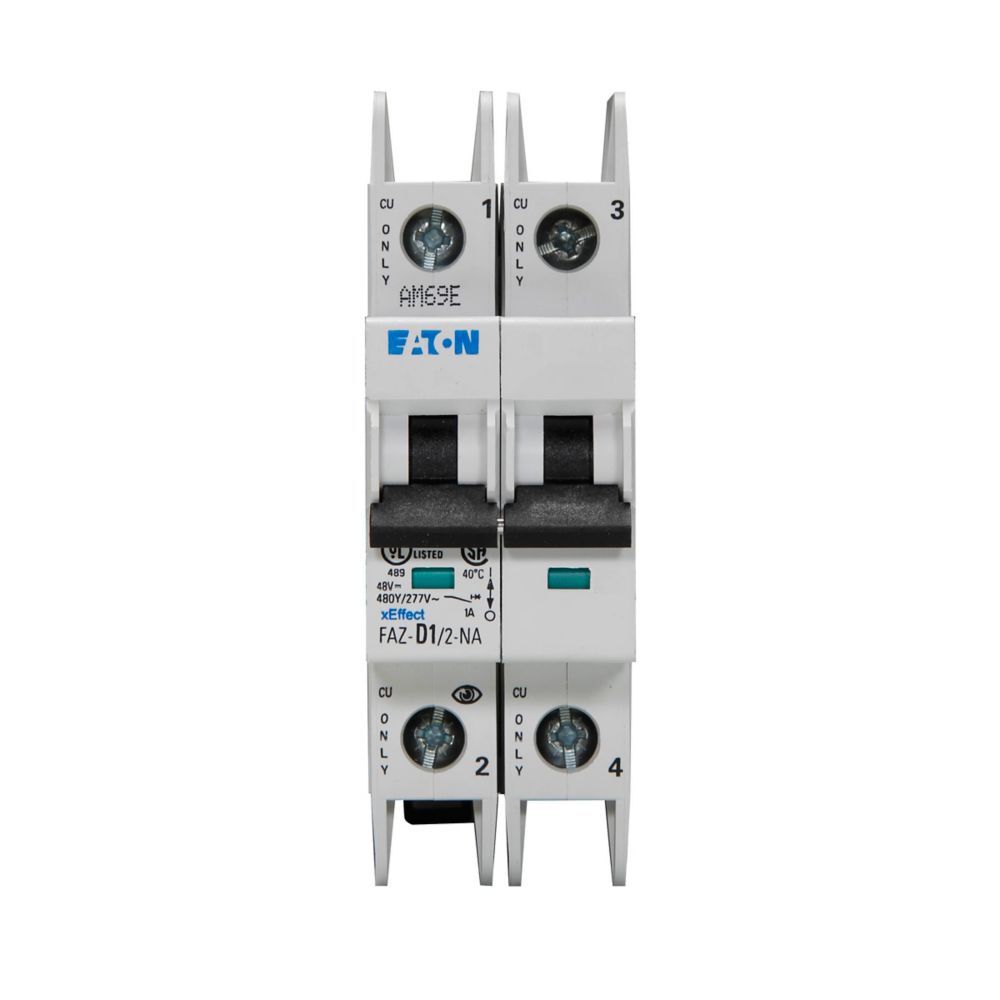

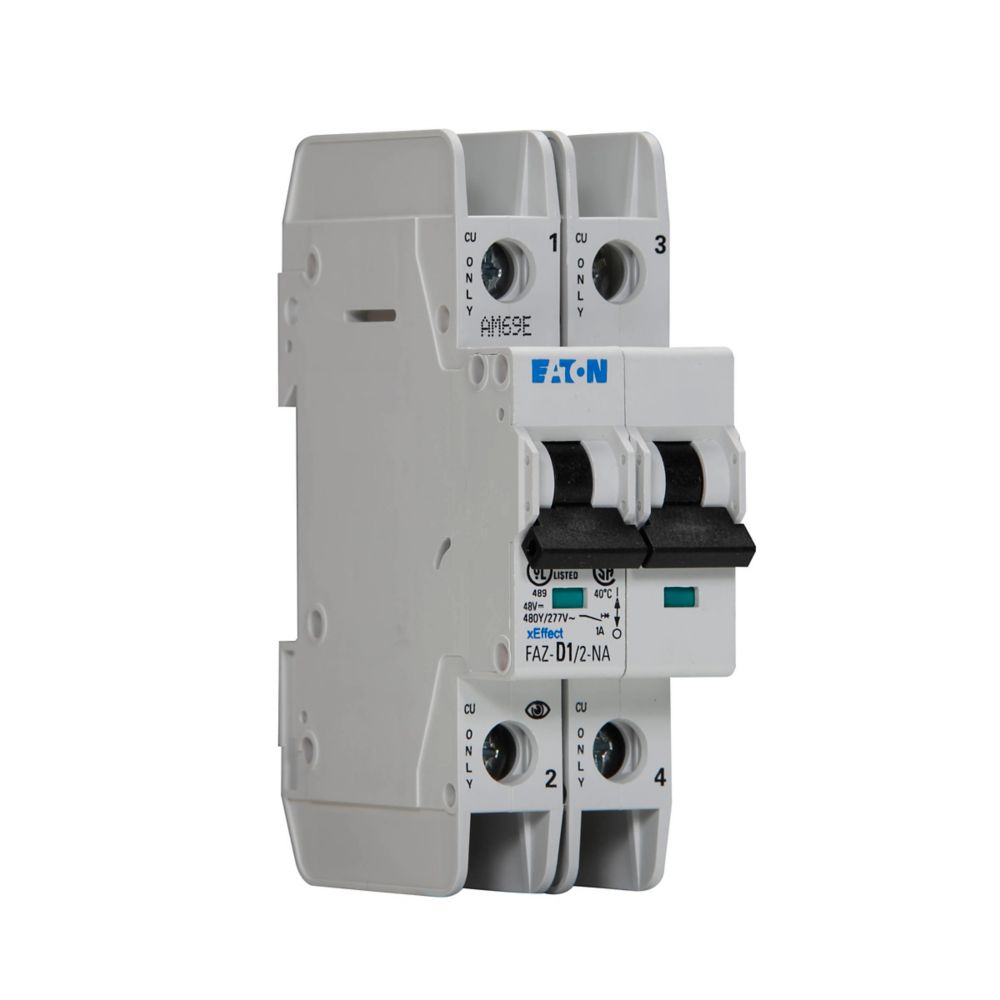

Eaton FAZ-D1/2-NA Circuit Breaker | 11V 1A 2P 10kA@277/480V Feed-Thru FAZ Series

Product Description:
The Eaton FAZ-D1/2-NA is a Molded Case Circuit Breaker from the FAZ Series family. It features 2 poles, 11 Volt, and 1 amp rating with an AIC rating of 10kA@277/480V. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: FAZ-D1/2-NA
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ-NA
✔ Voltage: 11
✔ Amperage: 1
✔ Poles: 2
✔ AIC rating: 10kA@277/480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 01508102054
✔ GTIN: 04015081020546
✔ Country of Origin: Spain
✔ Dimensions: 1.39 in x 3 in
✔ Weight: 0.55
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
