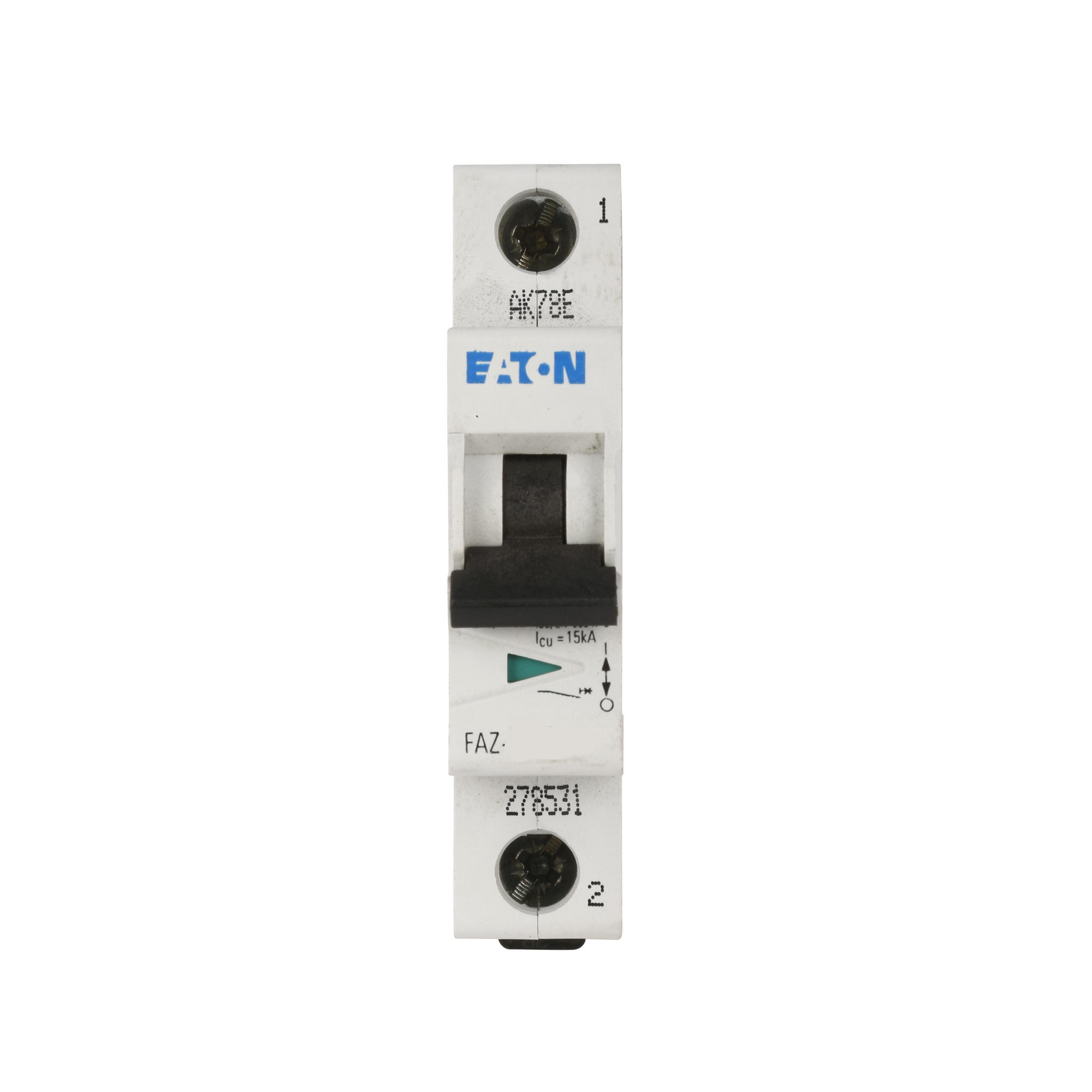

Eaton FAZ-D10/1-NA-SP Circuit Breaker | 3V 10A 1P 10kA@480/277V Feed-Thru FAZ Series

Product Description:
The Eaton FAZ-D10/1-NA-SP is a Molded Case Circuit Breaker from the FAZ Series family. It features a 1-pole design with a 10 amp rating and 3V voltage, offering thermal magnetic protection. This breaker has an AIC rating of 10kA@480/277V and uses a Feed-Thru connection for easy installation. It is CSA Certified and UL 489 Listed for safety compliance.

Key Features:
✔ Part Number: FAZ-D10/1-NA-SP
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ
✔ Voltage: 3
✔ Amperage: 10
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@480/277V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 015081636703
✔ GTIN: 04015080000000
✔ Country of Origin: Spain
✔ Dimensions: 3 in x 1 in x
✔ Weight: 0.3
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
