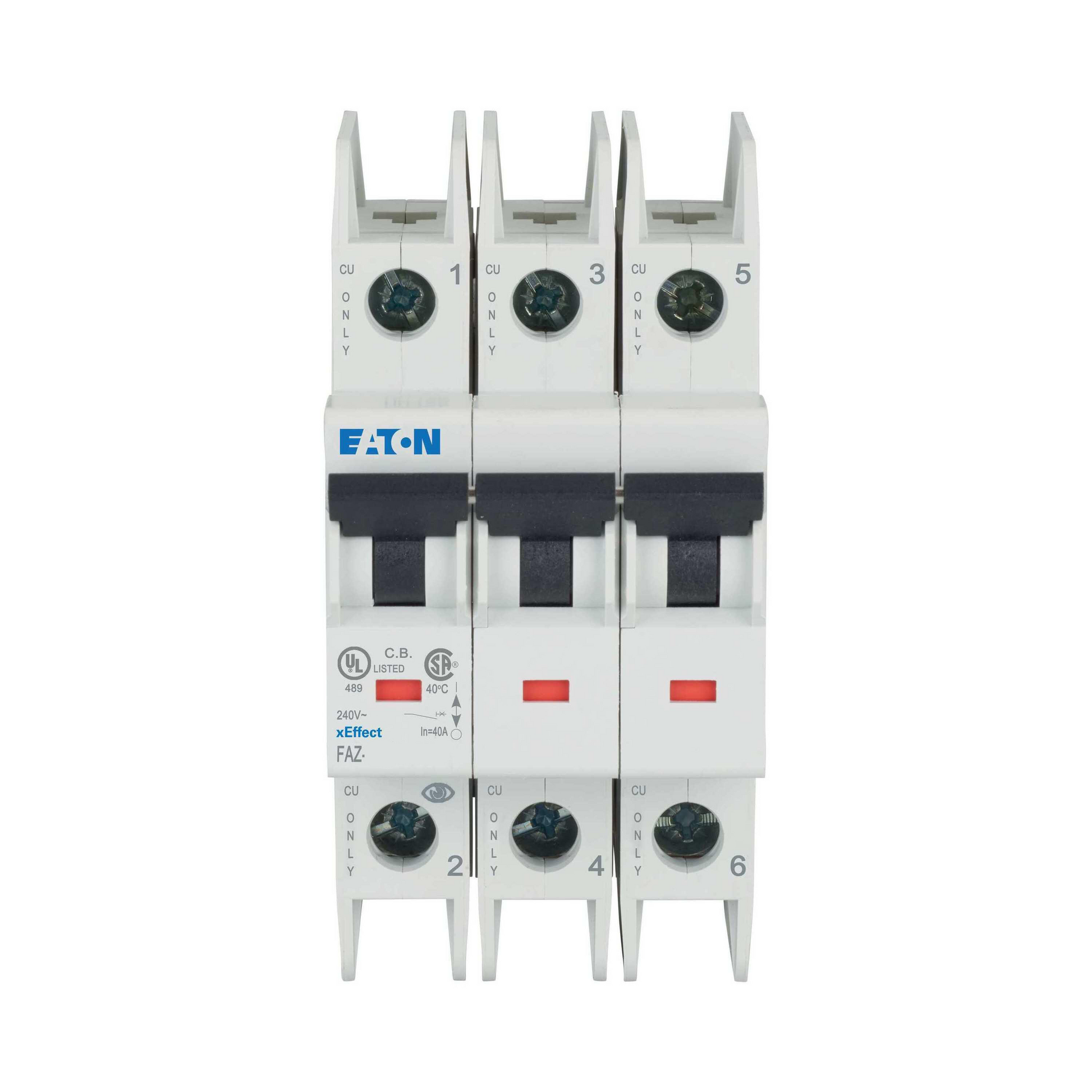

Eaton FAZ-D13/3 Circuit Breaker | 480V 13A 3P 10kA@277/480V Feed-Thru FAZ Series

Product Description:
The Eaton FAZ-D13/3 is a Molded Case Circuit Breaker from the FAZ Series family. It features a 3-pole design with a 480V voltage rating and 13A amperage capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@277/480V. It uses a Feed-Thru connection for easy installation.

Key Features:
✔ Part Number: FAZ-D13/3
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ
✔ Voltage: 480
✔ Amperage: 13
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@277/480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 4 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 015082788944
✔ GTIN: 04015080000000
✔ Country of Origin: Romania
✔ Dimensions: 3 in x 3 in x
✔ Weight: 0.65
✔ Standards: CSA C22.2 No. 235, IEC 60947-2, UL 1077
✔ Certification: CSA C22.2 No. 235, IEC 60947-2, UL 1077
