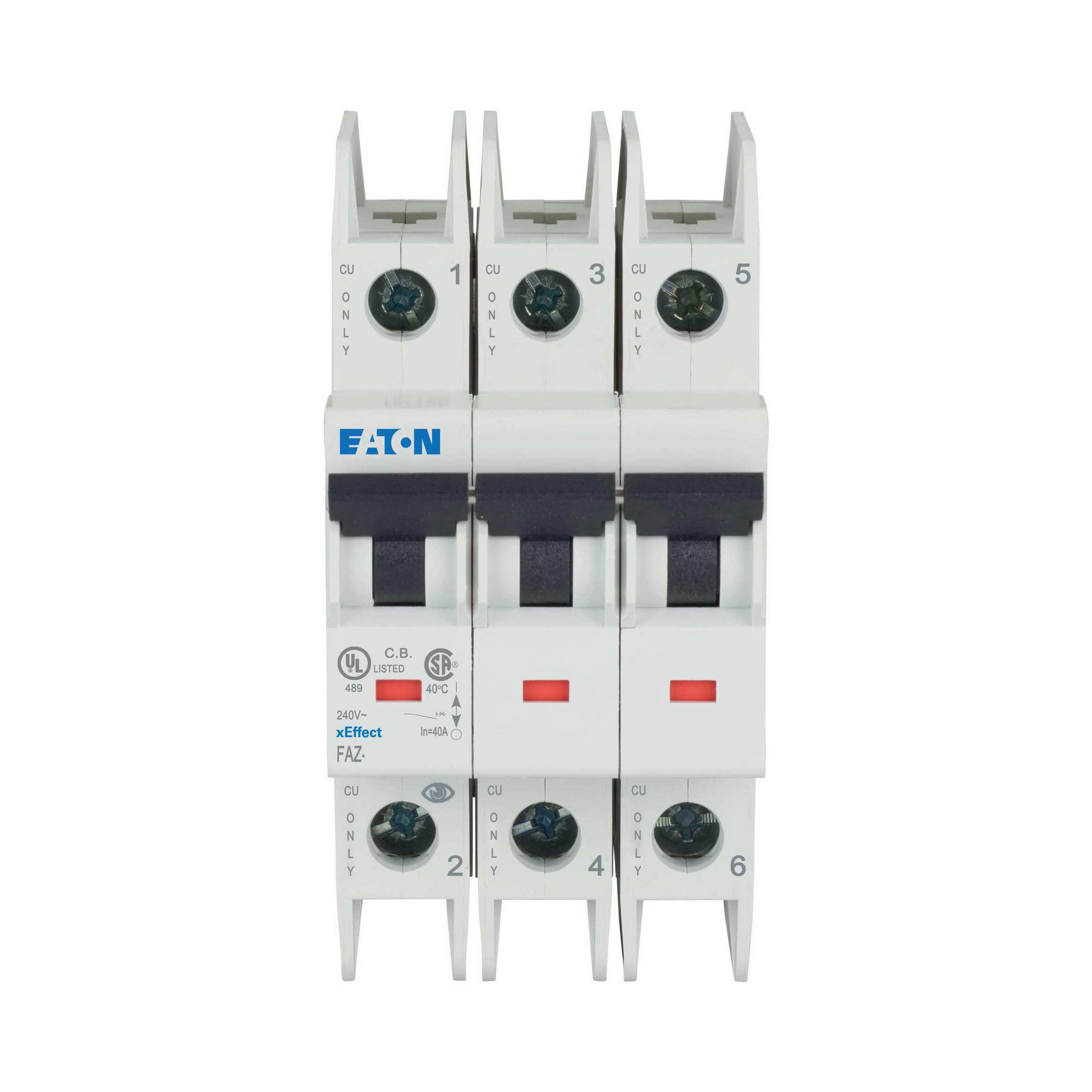

Eaton FAZ-D2/3-NA Circuit Breaker | 480V 2A 3P 10kA@277/480V Feed-Thru FAZ Series

Product Description:
The Eaton FAZ-D2/3-NA is a Molded Case Circuit Breaker from the FAZ Series family. It features a 3-pole design with a 480V voltage rating and 2 amp capacity, offering reliable thermal magnetic protection. This breaker has an AIC rating of 10kA@277/480V and uses a feed-thru connection for easy installation. It is CSA Certified and UL 489 Listed, ensuring compliance with industry standards.

Key Features:
✔ Part Number: FAZ-D2/3-NA
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ-NA
✔ Voltage: 480
✔ Amperage: 2
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@277/480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 015081021363
✔ GTIN: 04015080000000
✔ Country of Origin: Spain
✔ Dimensions: 3 in x 2 in x 4.13 in
✔ Weight: 0.45
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Wire Size: 18 to 6 AWG, 18 to 10 AWG
