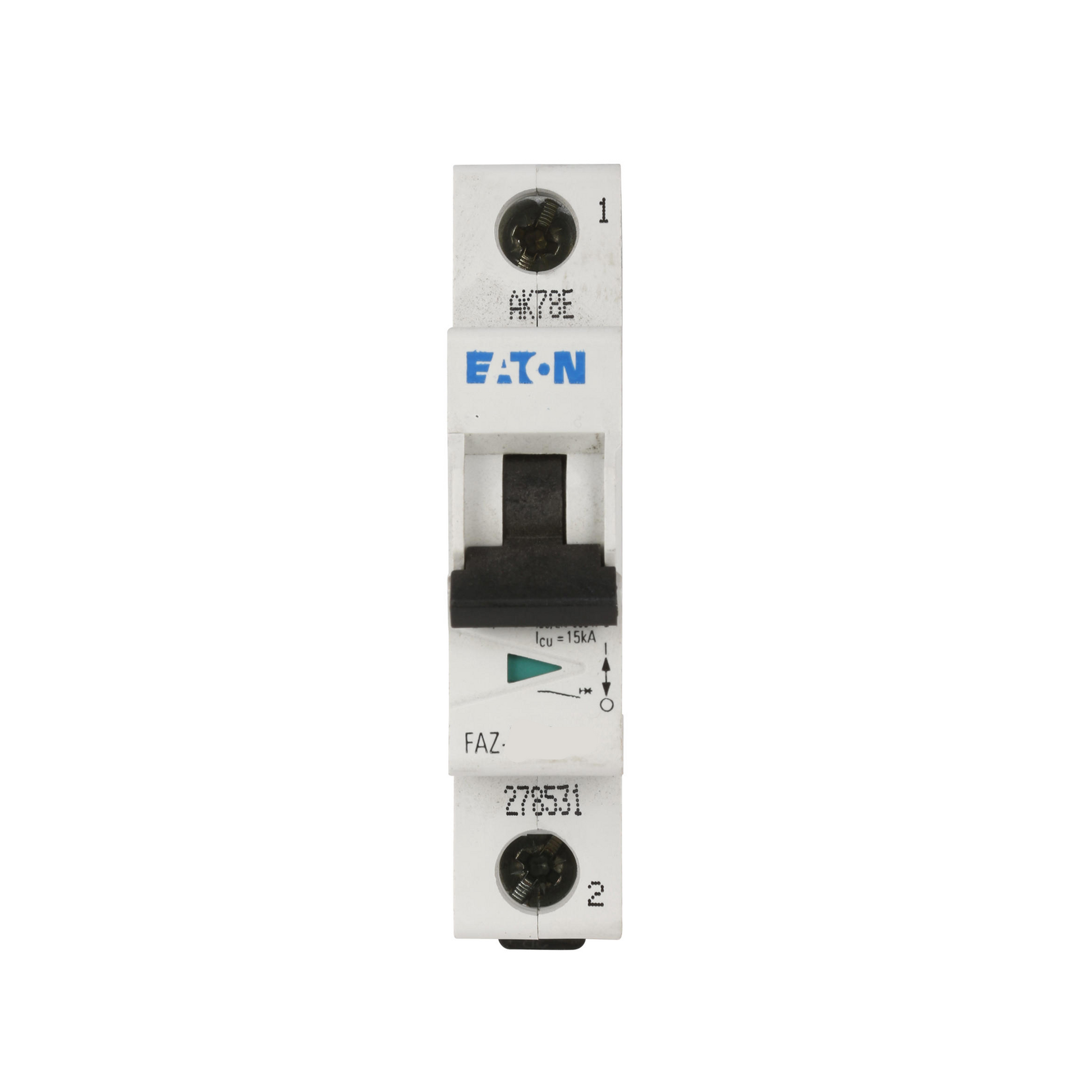

Eaton FAZ-D5/1-NA-SP Circuit Breaker | 480V 5A 1P 10kA@480/277V FAZ Series

Product Description:
The Eaton FAZ-D5/1-NA-SP is a Molded Case Circuit Breaker from the FAZ Series. It features 1 pole, 480V voltage, and a 5 amp rating with a 10kA@480/277V AIC rating. Designed for Din Rail connection, it offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: FAZ-D5/1-NA-SP
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ
✔ Voltage: 480
✔ Amperage: 5
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@480/277V
✔ Connection: Din Rail
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 01508163666
✔ GTIN: 04015081636662
✔ Country of Origin: Spain
✔ Dimensions: 3 in x 1 in x
✔ Weight: 0.5
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
