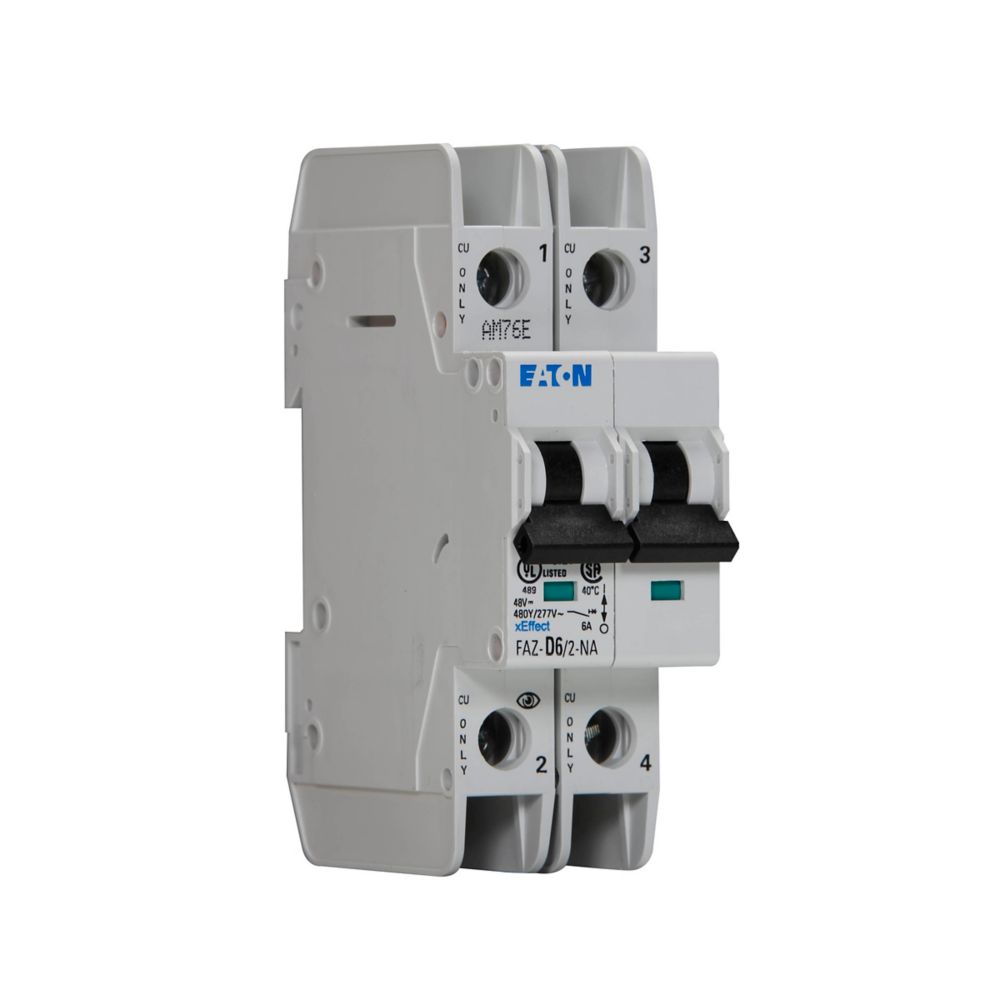

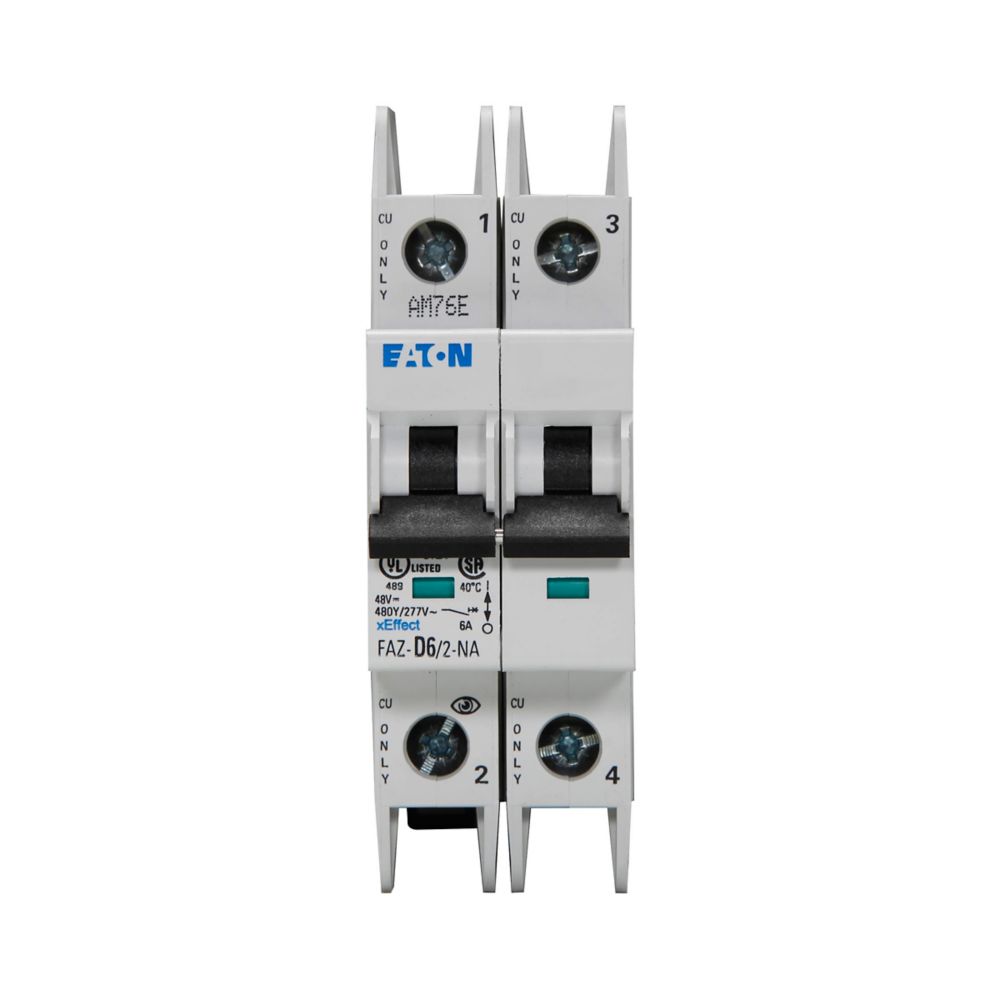

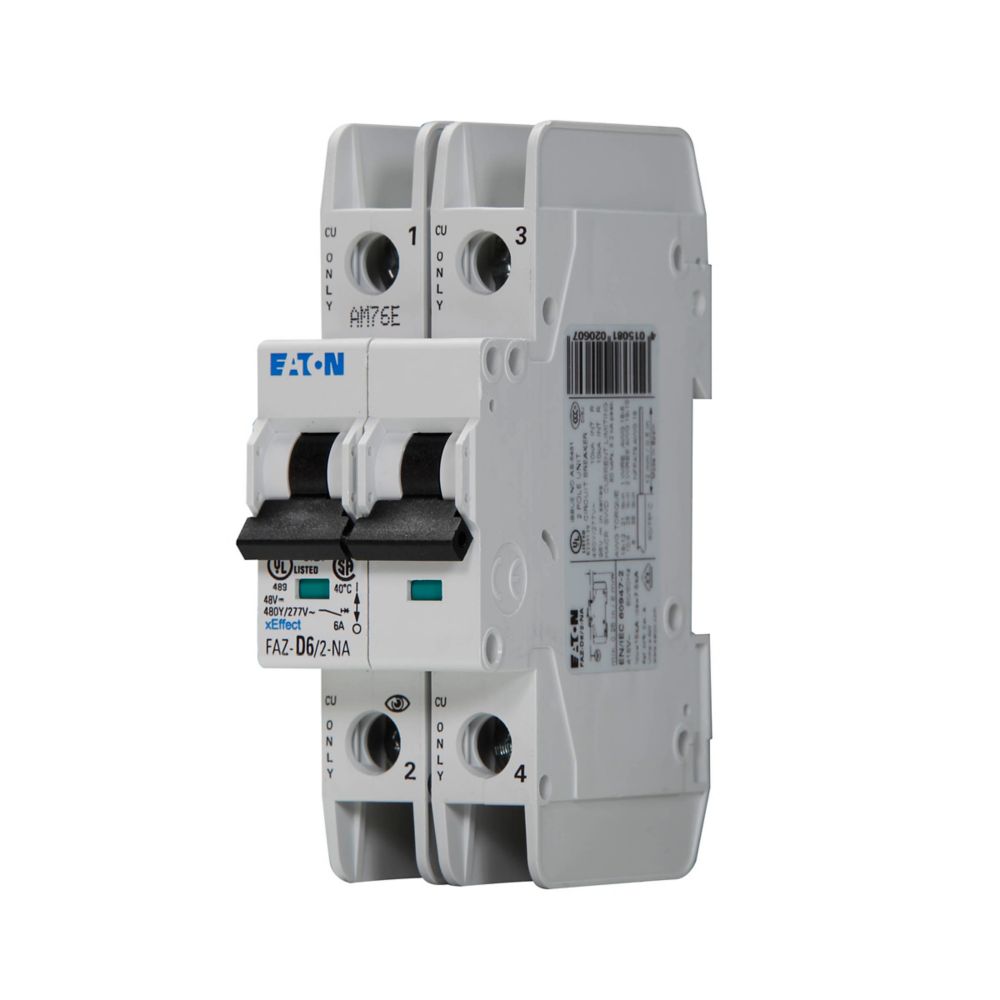

Eaton FAZ-D6/2-NA Circuit Breaker | 480V 6A 2P 10kA@277/480V Feed-Thru FAZ Series

Product Description:
The Eaton FAZ-D6/2-NA is a Molded Case Circuit Breaker from the FAZ Series family. It features 2 poles, 480V voltage, and a 6 amp rating with a 10kA@277/480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is designed for reliable performance in electrical systems.

Key Features:
✔ Part Number: FAZ-D6/2-NA
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: FAZ Series
✔ Type: FAZ-NA
✔ Voltage: 480
✔ Amperage: 6
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@277/480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 40A/FAZ
✔ MCM Size: Min. Wire Size 18 AWG Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 01508102060
✔ GTIN: 04015081020607
✔ Country of Origin: Spain
✔ Dimensions: 3 in x 1.5 in x
✔ Weight: 0.55
✔ Standards: CSA Certified, IEC 60947-2, UL 489 Listed
✔ Certification: CSA Certified, IEC 60947-2, UL 489 Listed
