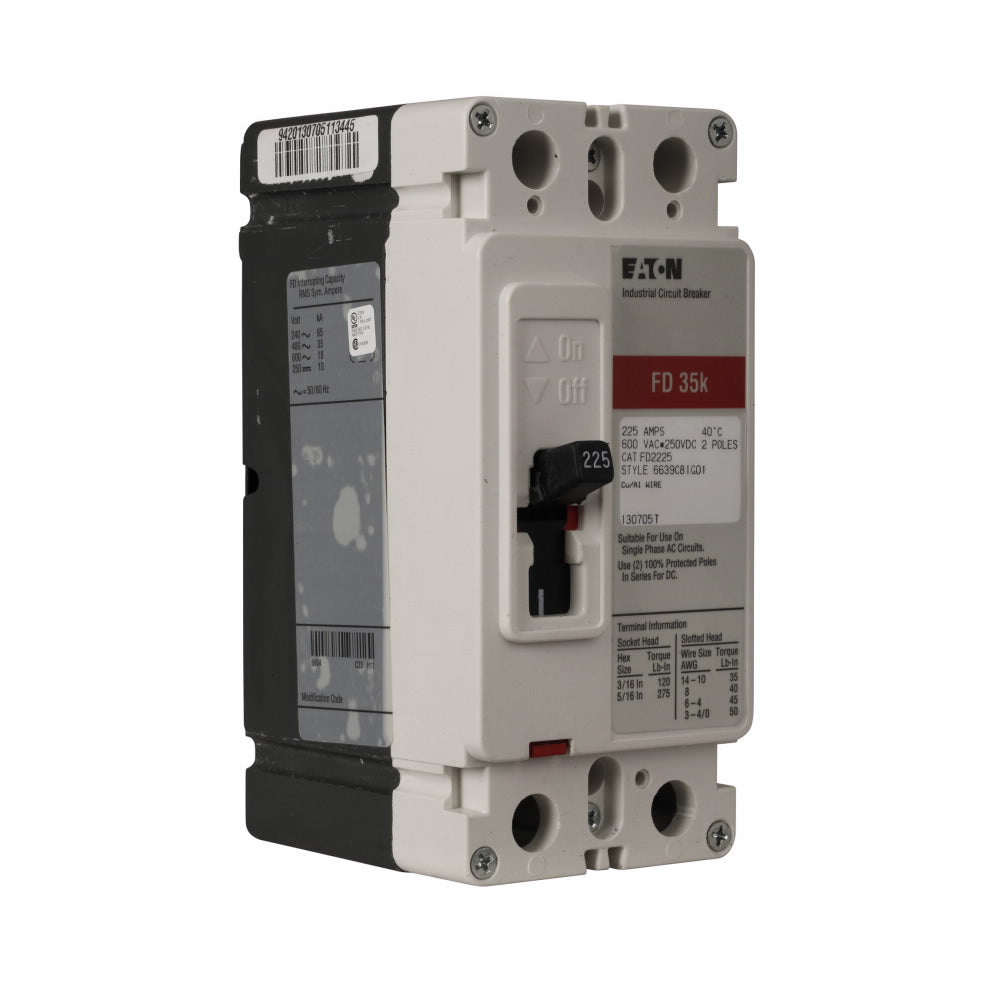

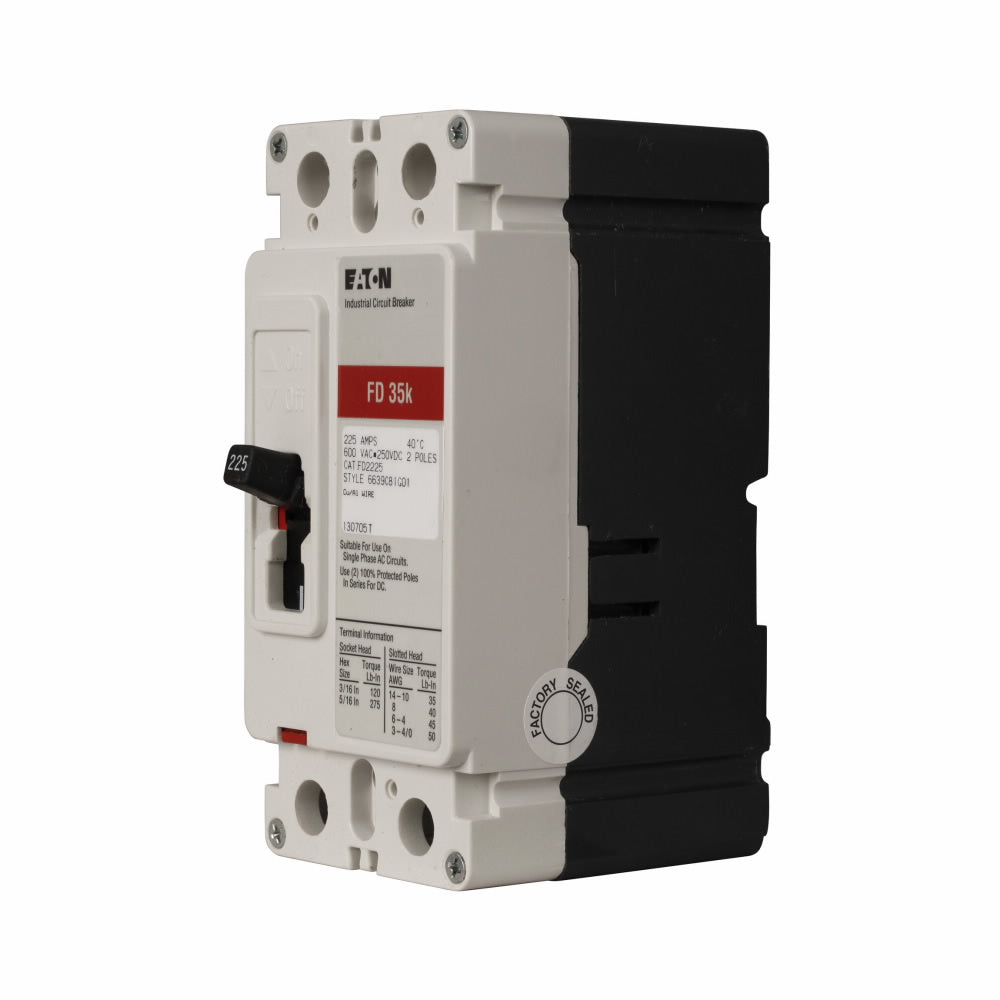

Cutler Hammer FD2090 Circuit Breaker | Series C FD 600V 90A

Product Description:
The Cutler Hammer FD2090 is a 2-pole Molded Case Circuit Breaker from the Series C family. It features a 600V, 90A rating with a 35kA@480V AIC rating and Bolt-On connections. This breaker includes Thermal Magnetic protection and is designed for use in various panel types. It is CSA Certified, IEC Rated, and UL Listed for safety compliance.

Key Features:
✔ Part Number: FD2090
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FD
✔ Voltage: 600V
✔ Amperage: 90A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 225A/F
✔ Wire Size: Min. 14 AWG, Max. 1/0 AWG
✔ Breaker Type: Standard
✔ Phase Connection: AB
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC: 786679312292
✔ GTIN: 007866793
