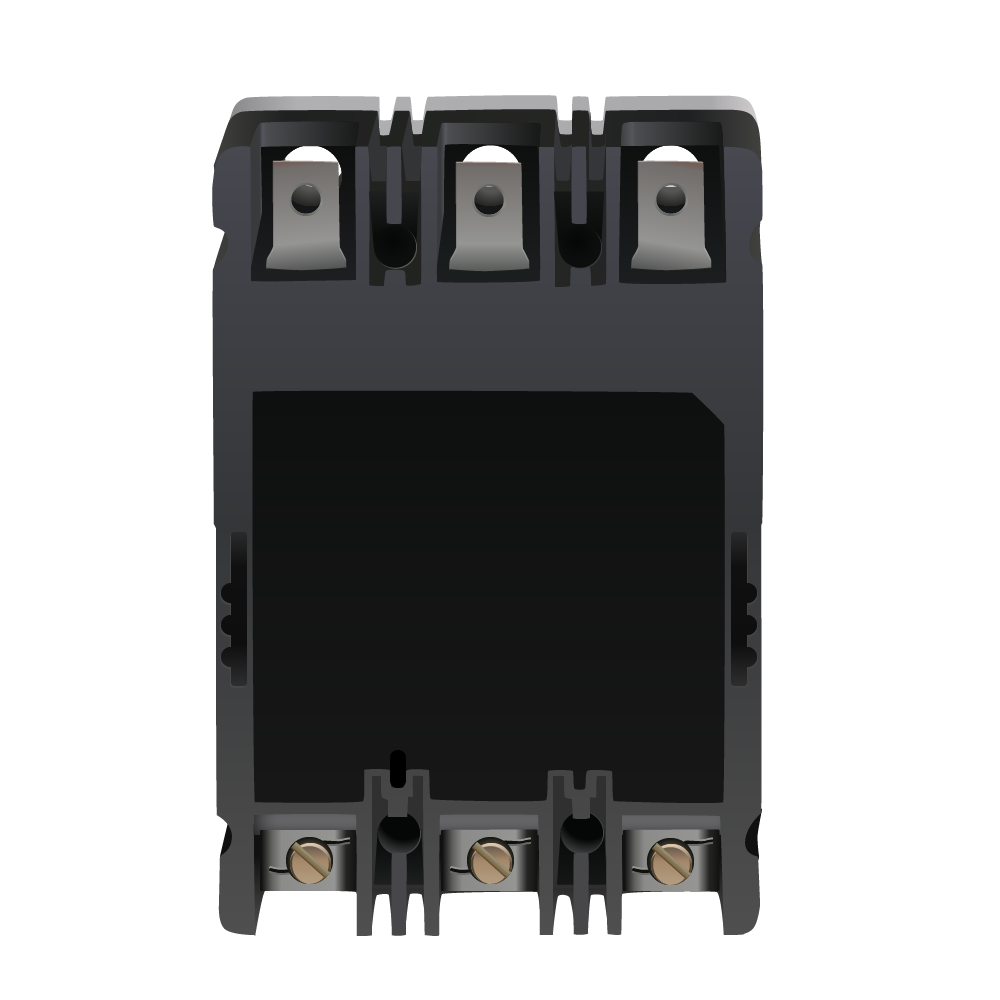

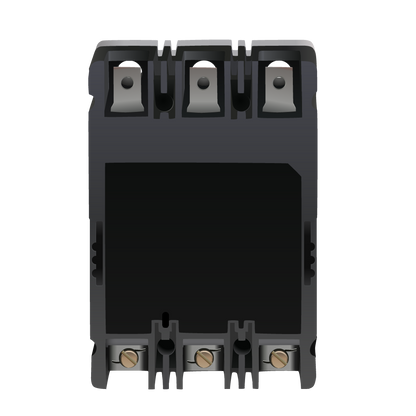

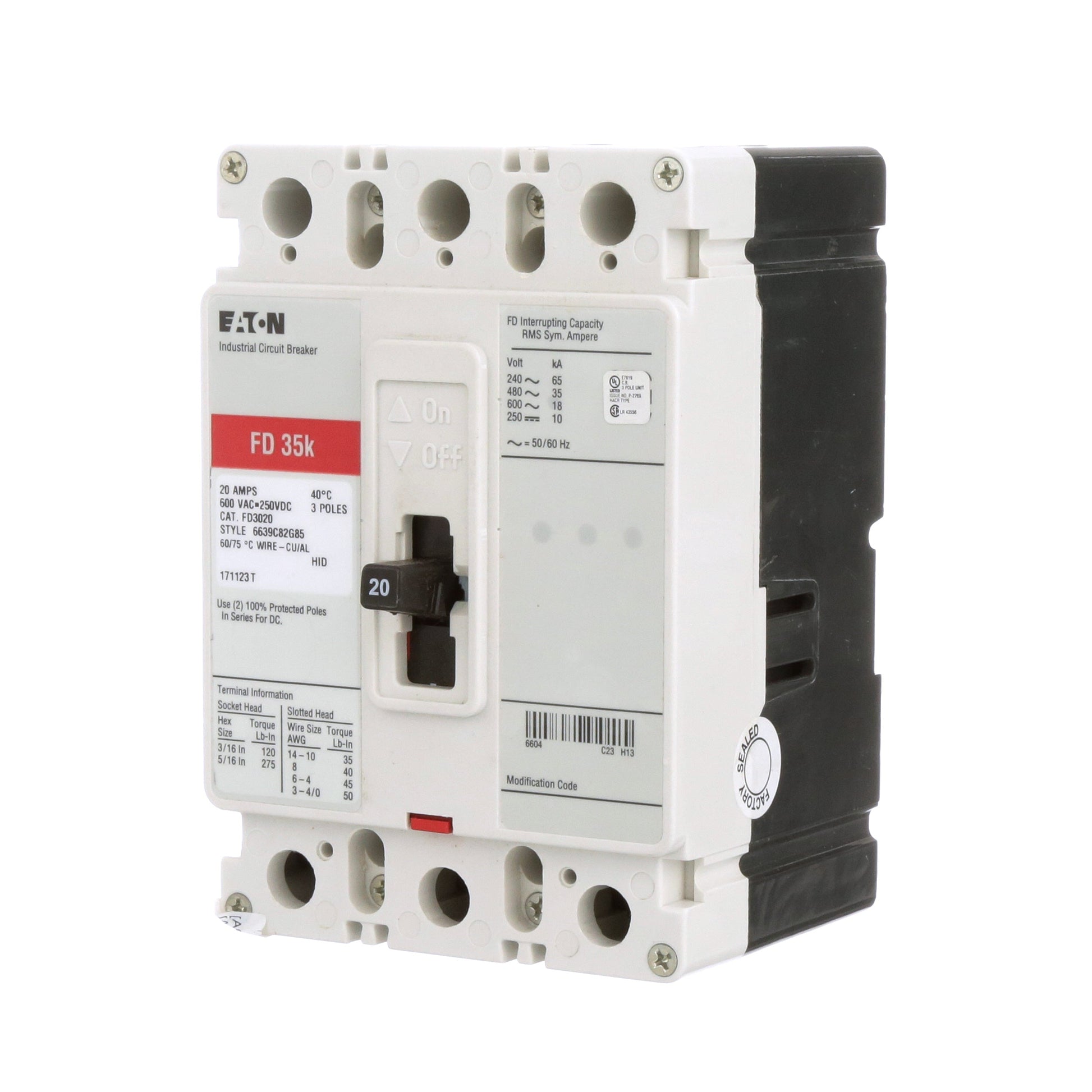

Cutler Hammer FD3020 Circuit Breaker | Series C FD 600V 20A

Product Description:
The Cutler Hammer FD3020 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 20A rating and an AIC rating of 35kA@480V. This breaker includes Thermal Magnetic protection and uses a Free Standing connection. It is compatible with various panel types and meets CSA, IEC, and UL standards.

Key Features:
✔ Part Number: FD3020
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FD
✔ Voltage: 600V
✔ Amperage: 20A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Free Standing
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 225A/F
✔ Wire Size: 14 AWG (Min), 1/0 AWG (Max)
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ Certification: CSA Certified, IEC Rated, UL Listed
✔ UPC: 786679305621
✔ GTIN: 007866793
