Images are for reference only
Cutler Hammer

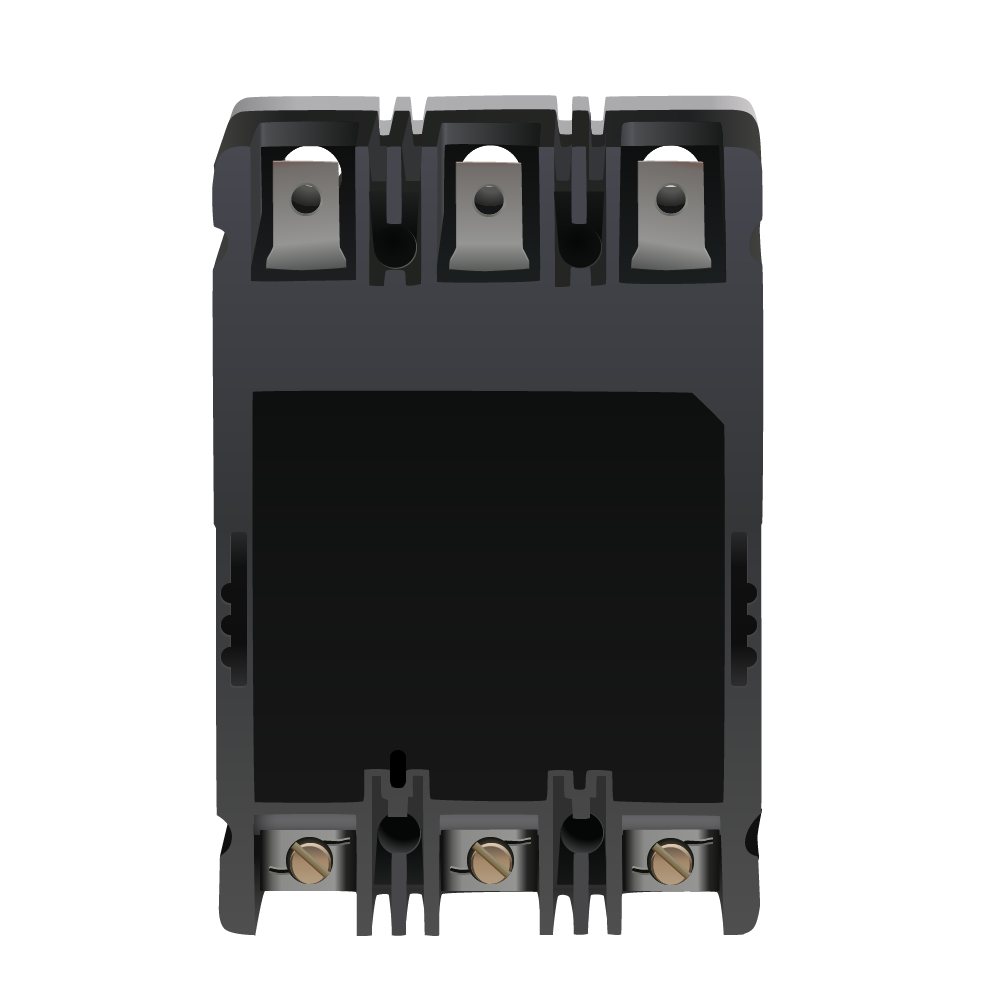

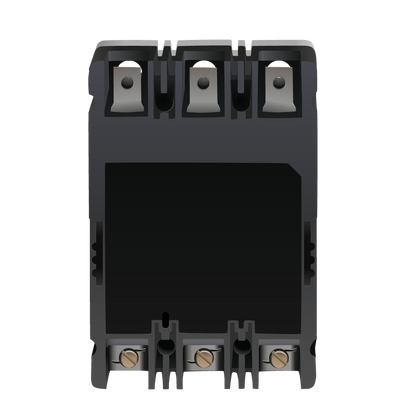

Cutler Hammer FD3030L Circuit Breaker | 600V 30A 3P 35kA@480V Feed-Thru Series C
Cutler Hammer FD3030L Circuit Breaker | 600V 30A 3P 35kA@480V Feed-Thru Series C
Price:
Sale
Sold out
Regular price
$339.84 USD
Regular price
$1,977.31 USD
Sale price
$339.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 6 left
Couldn't load pickup availability
Product Description:
The Cutler Hammer FD3030L is a 3-pole molded case circuit breaker from the Series C family. It is rated for 30 amps and 600 volts, with an AIC rating of 35kA at 480V. This breaker features thermal magnetic protection and a feed-thru connection for reliable circuit interruption.
Key Features:
✔ Part Number: FD3030L
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FD
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679305669
✔ GTIN: 00786679305669
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 6in Width 4.13in
✔ Weight: 5
✔ Certification: UL Listed
