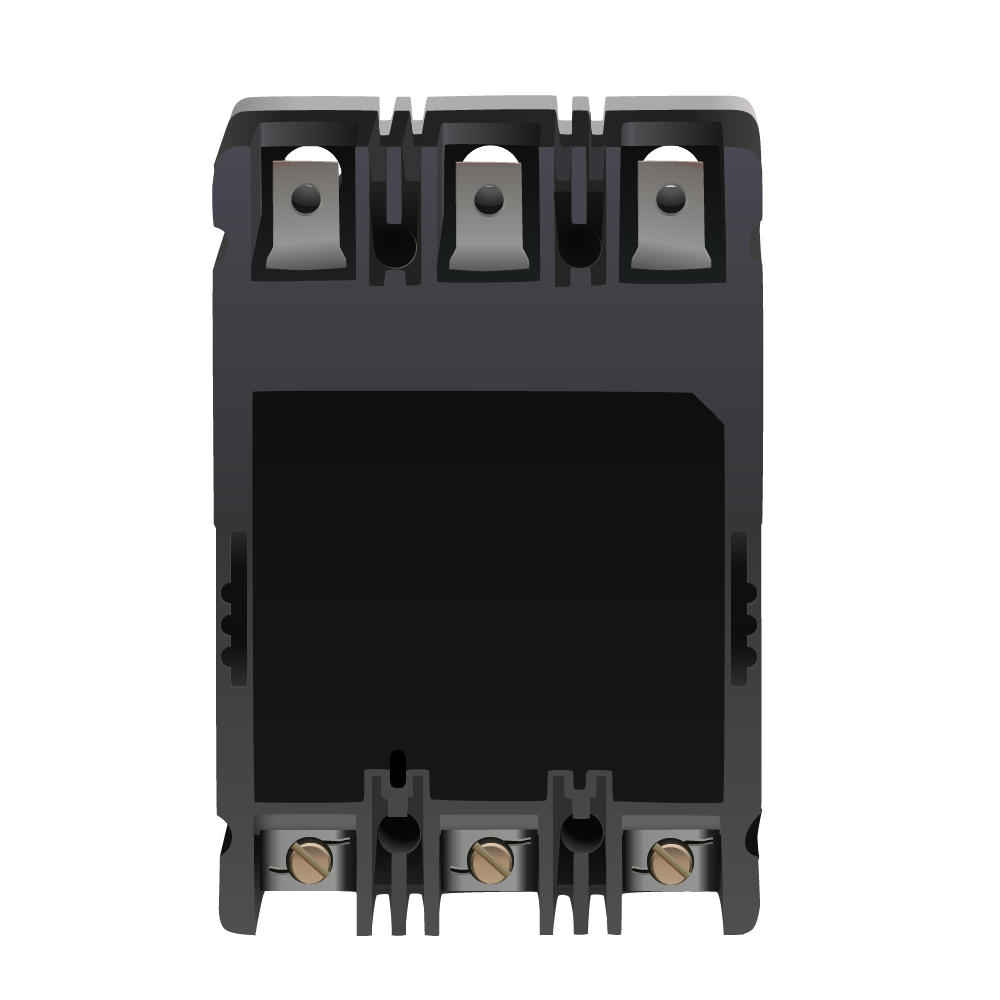

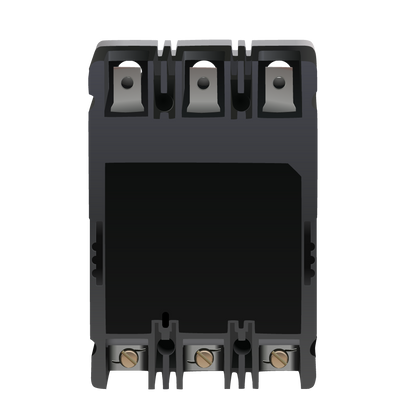

Westinghouse FD3040L Circuit Breaker | 600V 40A 3P 35kA@480V Feed-Thru Series C

Product Description:
The Eaton FD3040L is a Molded Case Circuit Breaker from the Series C family. It is a 3-pole, 40 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This model features Feed-Thru connections and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: FD3040L
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FD
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679305683
✔ GTIN: 00786679305683
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 6in Width 4.13in
✔ Weight: 4.55
✔ Certification: UL Listed
