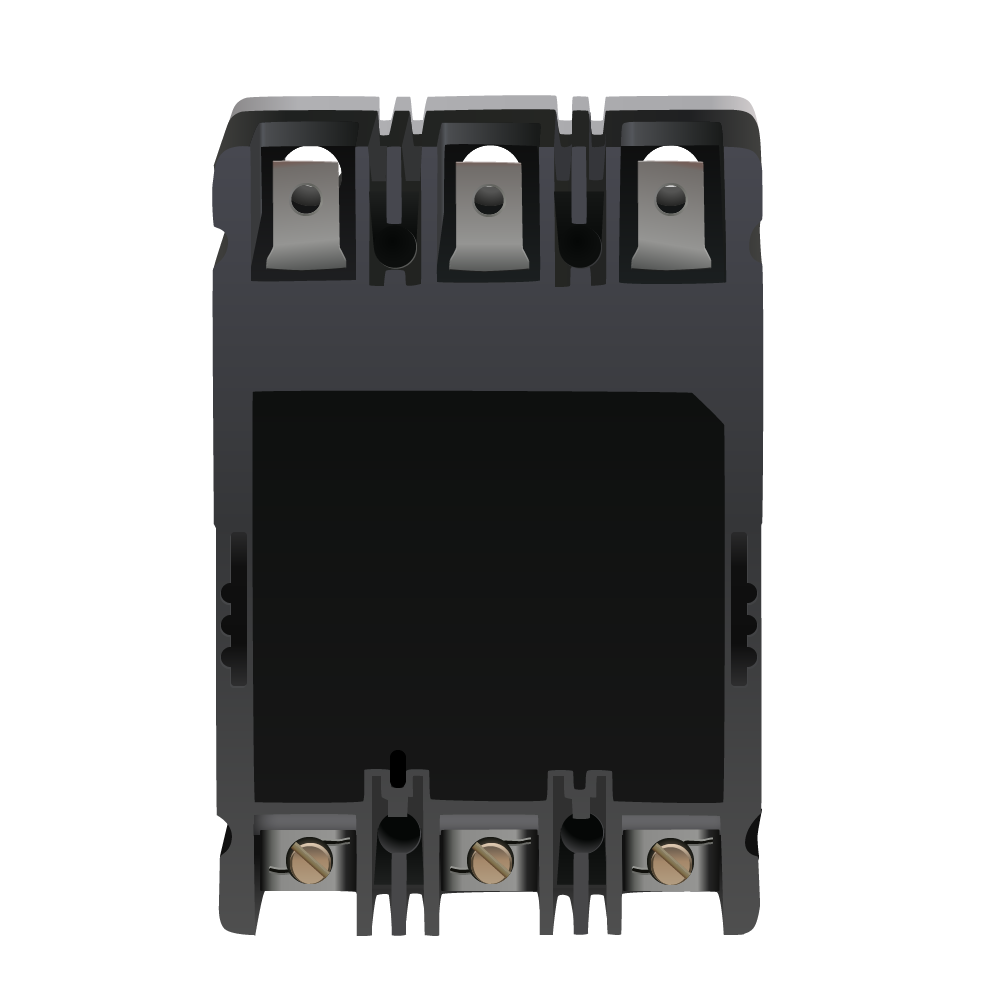

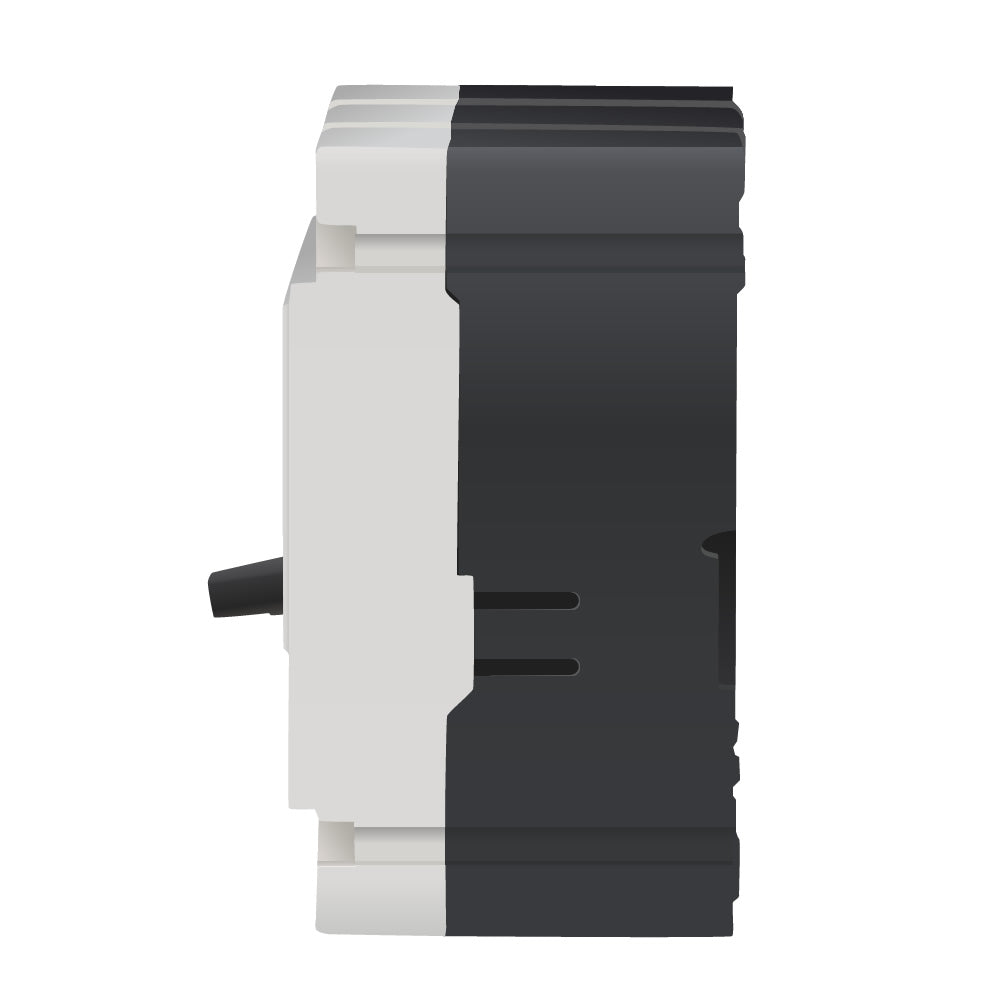

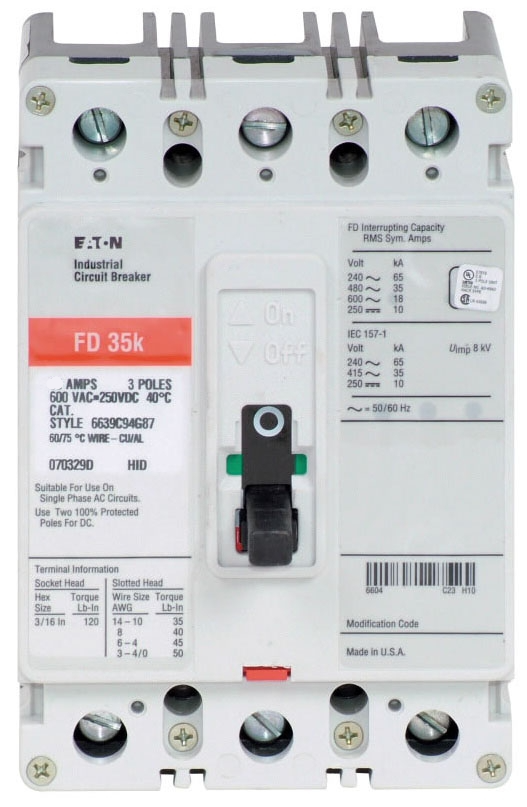

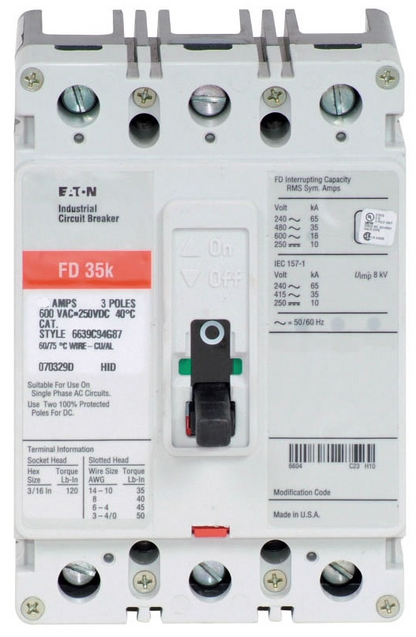

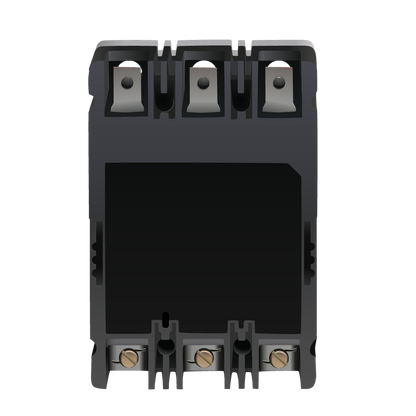

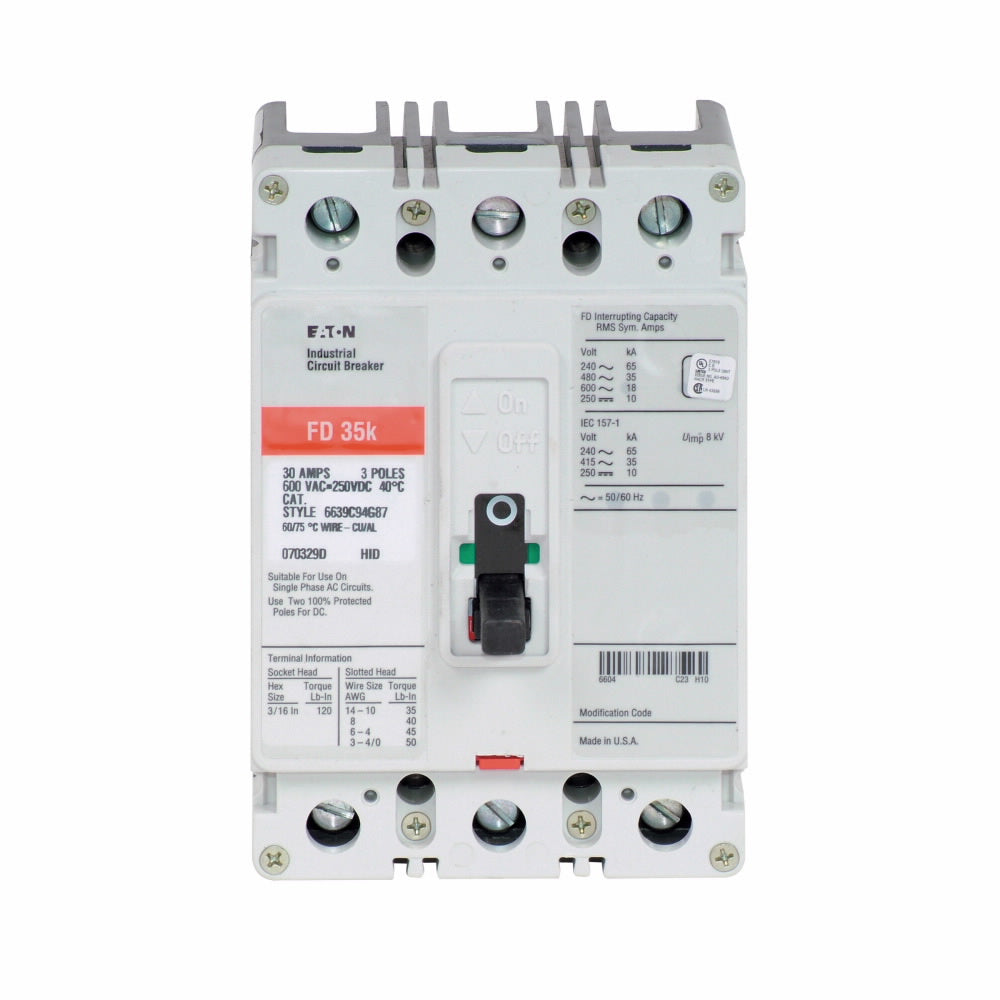

Cutler Hammer FD3050L Circuit Breaker | Series C FD 600V 50A

Product Description:
The Cutler Hammer FD3050L is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 50A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance. It is UL Listed for safety compliance.

Key Features:
✔ Part Number: FD3050L
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FD
✔ Voltage: 600V
✔ Amperage: 50A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: F Frame
✔ Certification: UL Listed
✔ UPC: 786679305706
✔ GTIN: 00786679305706
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3.38in (L) x 6in (H) x 4.13in (W)
✔ Weight: 4.5 lbs
