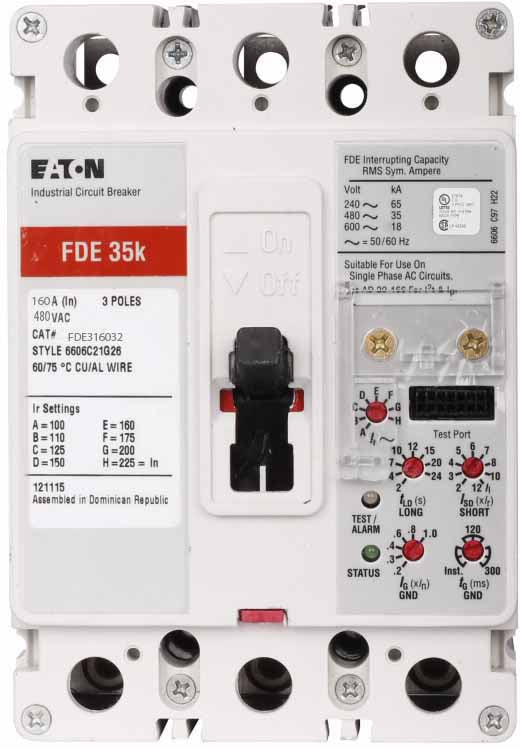

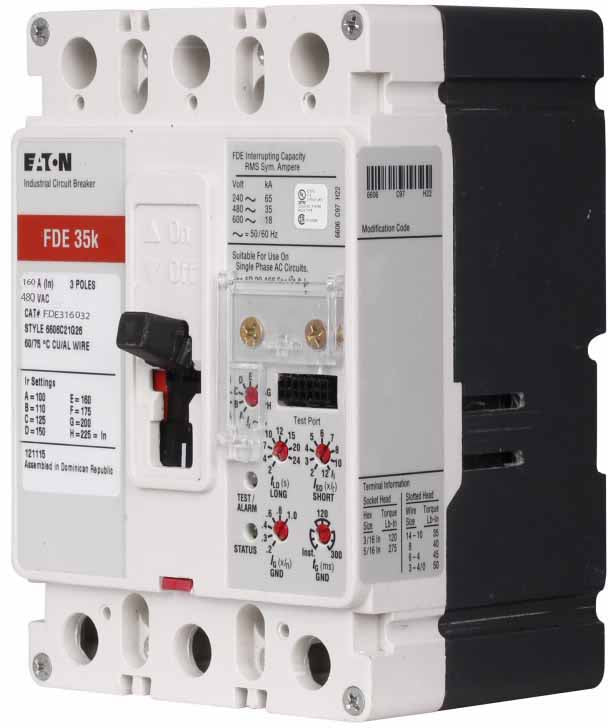

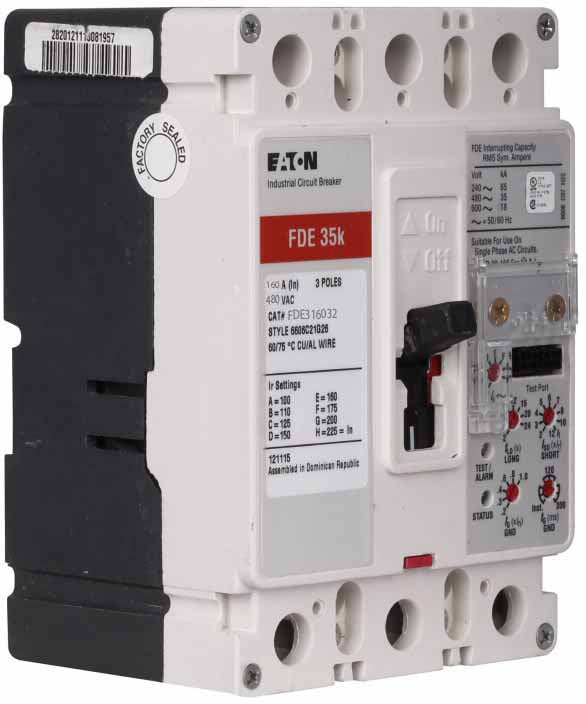

Cutler Hammer FDE316032 Circuit Breaker | 480V 160A 3P 35kA@480V Bolt-On Series C

Product Description:
The Cutler Hammer FDE316032 is a Molded Case Circuit Breaker from the Series C family. It features 3 poles, 480V voltage, and a 160 amp rating with a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Solid State protection for reliable performance.

Key Features:
✔ Part Number: FDE316032
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FDE
✔ Voltage: 480
✔ Amperage: 160
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Solid State
✔ UPC: 786685112121
✔ GTIN: 00786685112121
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 7.4in Height 4.9in Width 5.1in
✔ Weight: 4
✔ Certification: UL Listed
