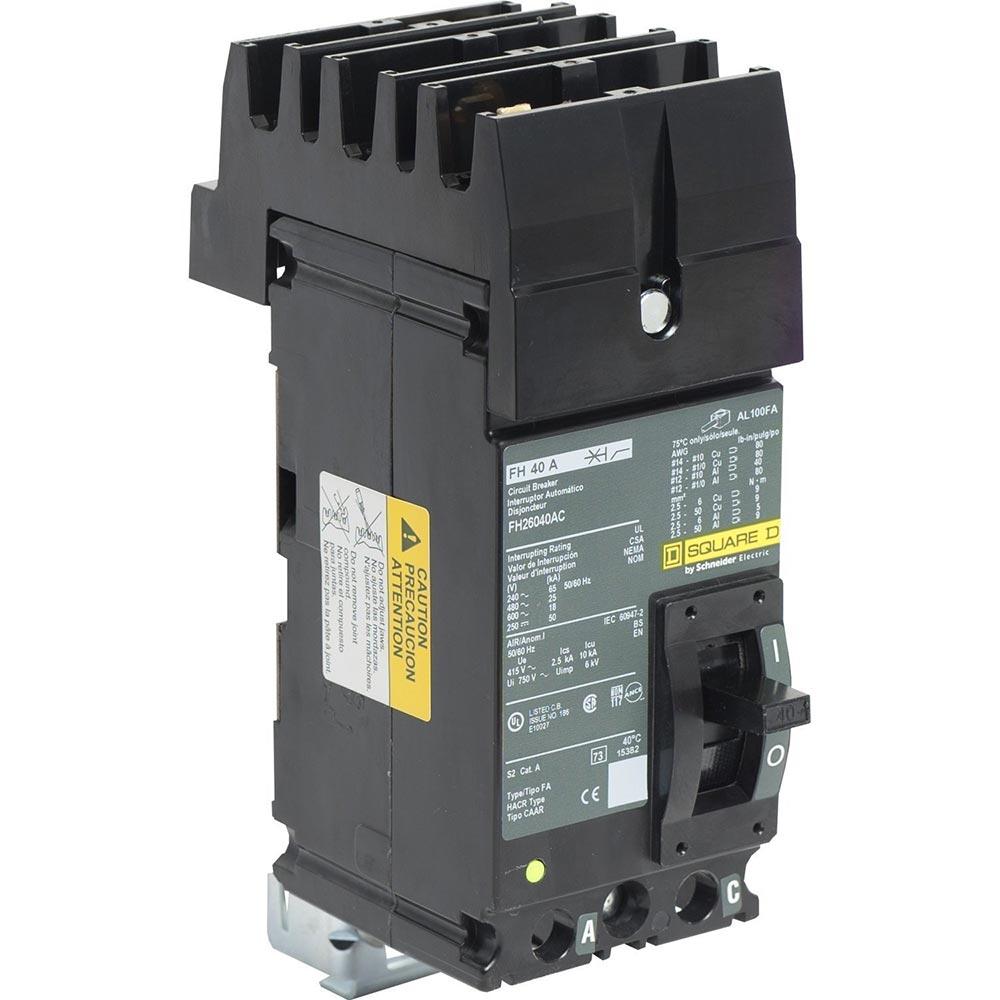

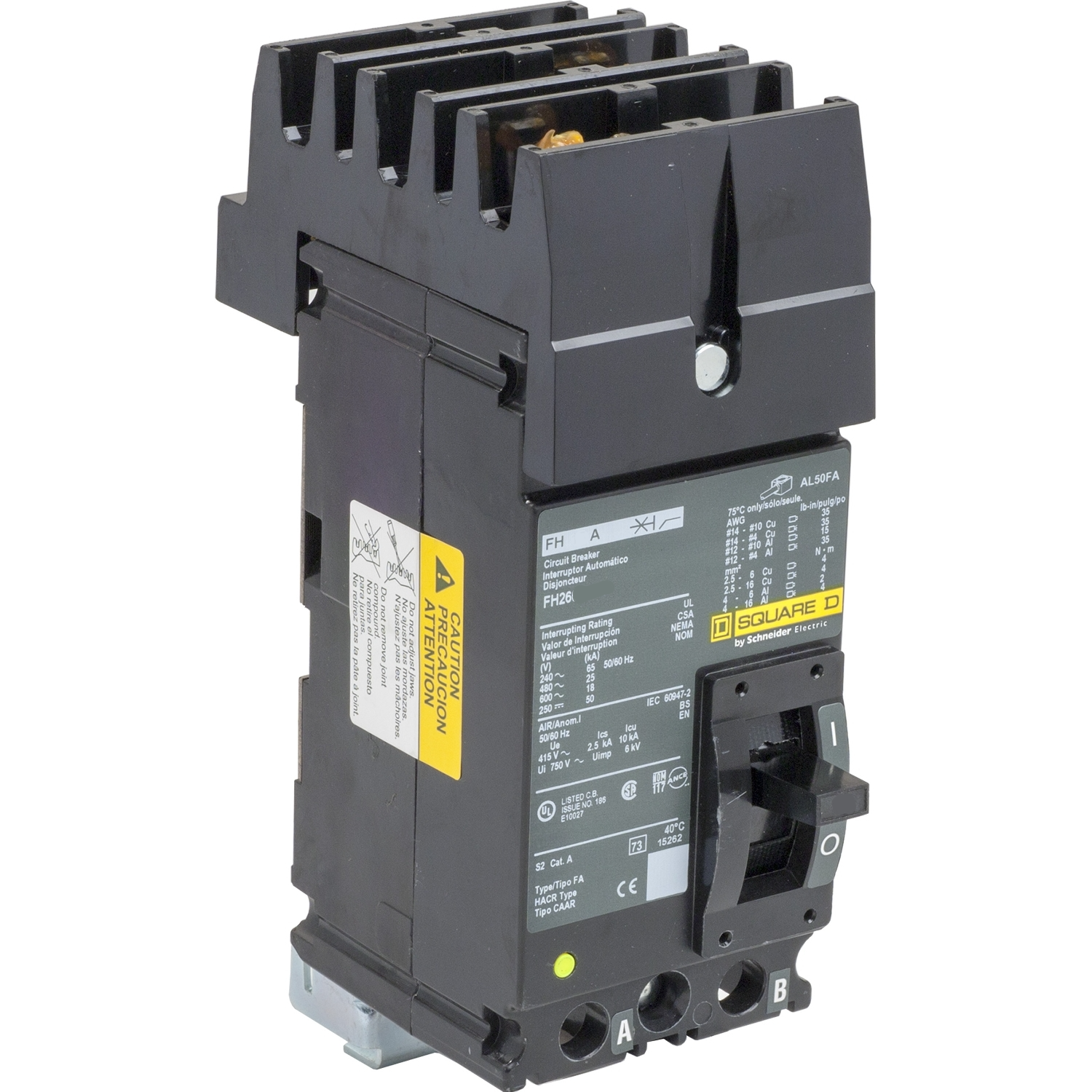

Square D FH26040AC Circuit Breaker | 600V 40A 2P 25kA@480V I-Line
Square D FH26040AC Circuit Breaker | 600V 40A 2P 25kA@480V I-Line
Price:
Sale
Sold out
Regular price
$395.83 USD
Regular price
Sale price
$395.83 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D FH26040AC is a Molded Case Circuit Breaker from the I-Line family. It features 2 poles, 600V voltage, and a 40 amp rating with a 25kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FH26040AC
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: FH
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 25kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: F Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901254768
✔ GTIN: 00785901254768
✔ Dimensions: Depth 4.13 in (104.90 mm) Width 3 in (76.20 mm) Height 6.4 in (162.56 mm)
✔ Weight: 6
✔ Certification: UL, CSA, NOM, IEC, CCC, CE
✔ Wire Size: 14 to 1/0 AWG AL/CU
The Square D FH26040AC is a Molded Case Circuit Breaker from the I-Line family. It features 2 poles, 600V voltage, and a 40 amp rating with a 25kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
